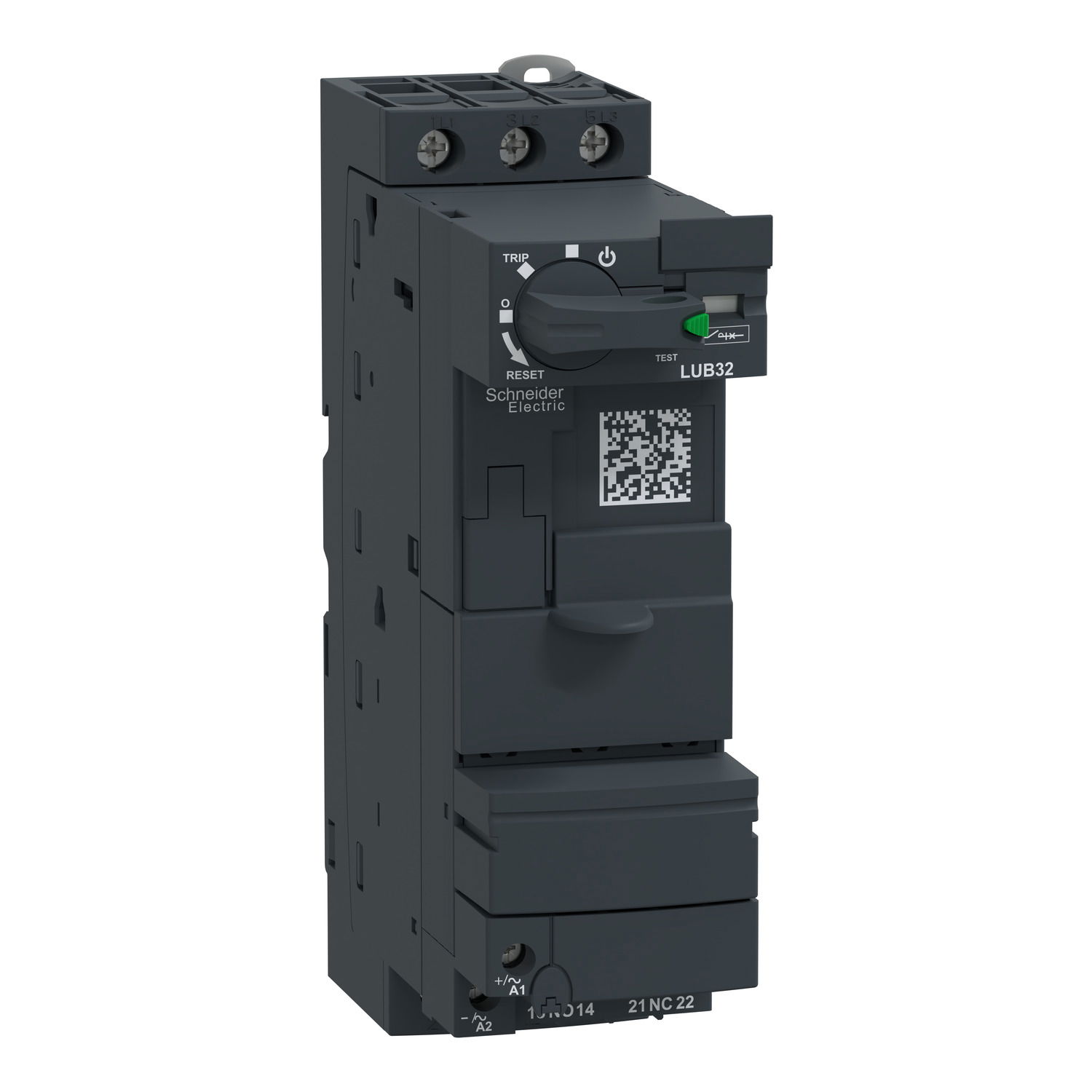

Power base, TeSys U, 3P, 32A/690V
TeSys U standard power base, 3 poles (3NO), 32A/690V, to be completed with a control unit LUC to form a TeSys U starter controller, for 3-phase motor applications up to 15kW@400V. Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a "all in one" starter controller with basic or advanced protection and control functions. It is equipped with a control terminal block, and blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine)
Product identifiers
SKU: LUB32
EAN: 3389110362787
GTIN: 3389110362787
MPN: LUB32
Loyalty points: 40
Price range: £ 63.67 - £ 99.71 Excl. VAT
Categories
Features
|
Depth
|
126 mm
|
|
Width
|
45 mm
|
|
Height
|
154 mm
|
|
With fuse
|
FALSE
|
|
Release class
|
-
|
|
With transformer
|
FALSE
|
|
Power consumption
|
-
|
|
Type of motor starter
|
Direct online starter (DOL)
|
|
External reset possible
|
FALSE
|
|
Degree of protection (IP)
|
IP20
|
|
Number of indicator lights
|
0
|
|
Rated operation current Ie
|
32 A
|
|
Suitable for rail mounting
|
TRUE
|
|
Voltage type for actuating
|
AC/DC
|
|
With short-circuit release
|
TRUE
|
|
Degree of protection (NEMA)
|
-
|
|
Number of command positions
|
3
|
|
Suitable for emergency stop
|
FALSE
|
|
Supporting protocol for ASI
|
FALSE
|
|
Supporting protocol for CAN
|
FALSE
|
|
Supporting protocol for LON
|
FALSE
|
|
Supporting protocol for Modbus
|
FALSE
|
|
Supporting protocol for SERCOS
|
FALSE
|
|
Supporting protocol for TCP/IP
|
FALSE
|
|
Rated control supply voltage DC
|
|
|
Supporting protocol for SUCONET
|
FALSE
|
|
Overload release current setting
|
|
|
Supporting protocol for INTERBUS
|
FALSE
|
|
Supporting protocol for PROFIBUS
|
FALSE
|
|
Supporting protocol for DeviceNet
|
FALSE
|
|
Supporting protocol for PROFIsafe
|
FALSE
|
|
Rated power, 460 V, 60 Hz, 3-phase
|
15 kW
|
|
Rated power, 575 V, 60 Hz, 3-phase
|
15 kW
|
|
Supporting protocol for EtherNet/IP
|
FALSE
|
|
Supporting protocol for PROFINET IO
|
FALSE
|
|
Supporting protocol for SafetyBUS p
|
FALSE
|
|
Rated operation power at AC-3, 400 V
|
15 kW
|
|
Supporting protocol for Data-Highway
|
FALSE
|
|
Supporting protocol for PROFINET CBA
|
FALSE
|
|
Rated control supply voltage AC 50 Hz
|
|
|
Rated control supply voltage AC 60 Hz
|
|
|
Rated operation current at AC-3, 400 V
|
32 A
|
|
Supporting protocol for INTERBUS-Safety
|
FALSE
|
|
Supporting protocol for DeviceNet Safety
|
FALSE
|
|
Supporting protocol for other bus systems
|
FALSE
|
|
Ambient temperature, upper operating limit
|
70 °C
|
|
Supporting protocol for Foundation Fieldbus
|
FALSE
|
|
Temperature compensated overload protection
|
-
|
|
Coordination class according to IEC 60947-4-3
|
Class 2
|
|
Rated operation power at AC-3, 230 V, 3-phase
|
7.5 kW
|
|
Type of electrical connection of main circuit
|
Screw connection
|
|
Supporting protocol for AS-Interface Safety at Work
|
FALSE
|
|
Number of auxiliary contacts as normally open contact
|
1
|
|
Rated conditional short-circuit current, type 2, 230 V
|
50000 A
|
|
Rated conditional short-circuit current, type 2, 400 V
|
50000 A
|
|
Number of auxiliary contacts as normally closed contact
|
1
|
|
Rated conditional short-circuit current, type 1, 480 Y/277 V
|
10000 A
|
|
Rated conditional short-circuit current, type 1, 600 Y/347 V
|
4000 A
|
|
Type of electrical connection for auxiliary- and control current circuit
|
Screw connection
|
