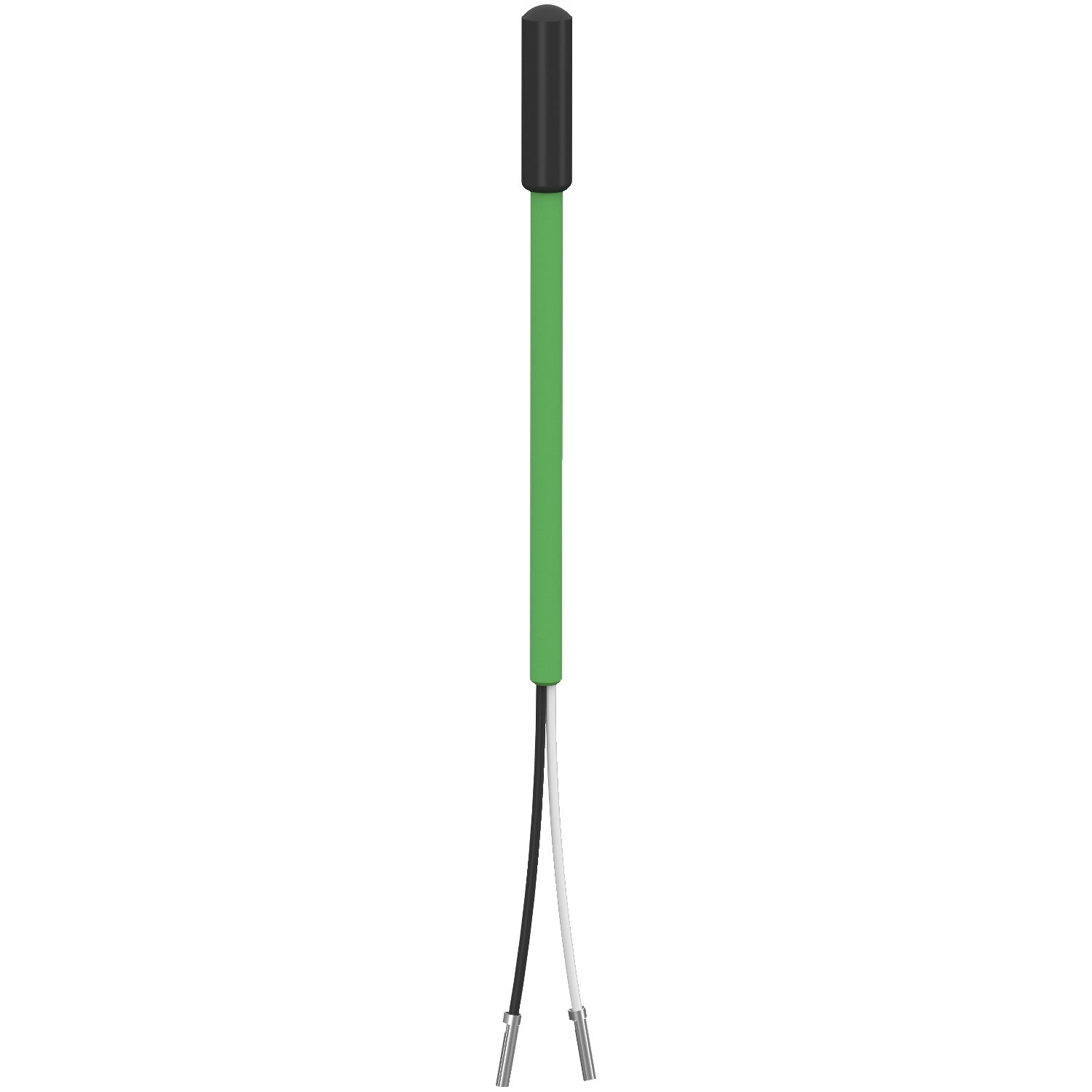

PT1000 1,5m IP68 5x20 -50+110°C Green

Link copied
SKU
EAN
GTIN
MPN
"This measurement accessory is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications." "This probe controls the temperature level from minus 50 to 110 degrees Celsius." "This temperature probe has an IP 68 rate and is equipped with a 1.5-meter two-conductor cable." "It is an NTC probe." "It is furnished with 2-conductor cable for controller side for electrical connection." "The cable measures 1.5m." "It measures 20mm long, 5mm wide, and weighs 0.136kg." "It is made to control temperature in HVAC or Pumping Applications." "It is sold in a 100-piece package." "It has a clip-on fixing mode." "Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines." "Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications."

Voltimum+ Loyalty Programme Loyalty points: 1

Price: £ 8.04 Excl. VAT

Specifications

Model Pin
Material Other
Length probe 20 mm
Measuring range
Connection cable length 1.5 m

Documents

Declaration of Conformity (Sustainability)

TM1STPTTSN5201P REACh Regulation

Open

Product data sheet

Open

Brochure

Build HVAC machines with sustainability by design!

Open

Catalog

Modicon M171/M172/M173 Logic controllers for HVAC and Pumping applications

Open

Declaration of Conformity (Sustainability)

TM1STPTTSN5201P EU RoHS Directive

Open
