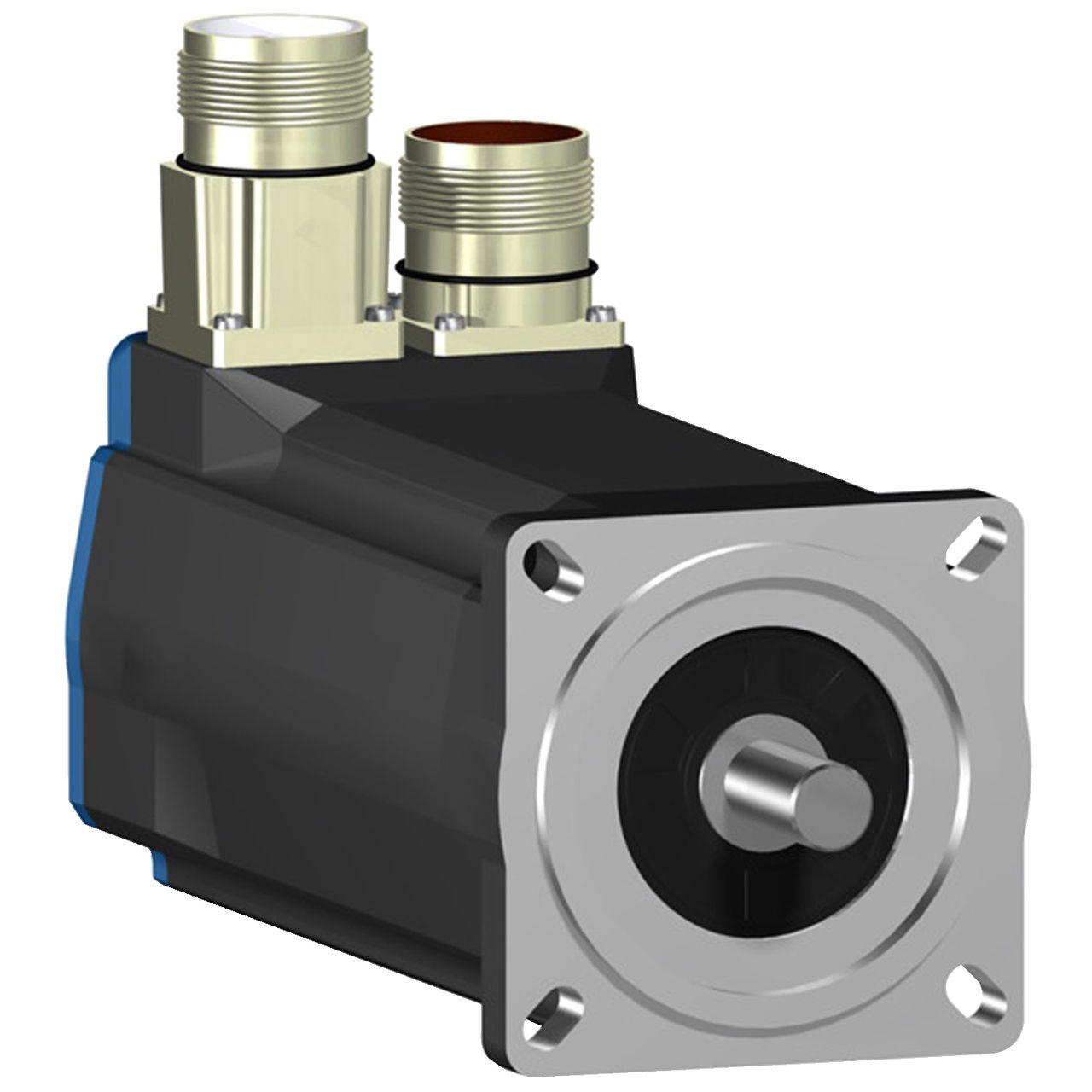

AC servo motor BSH - 2.2 N.m - 3000 rpm - keyed shaft - with brake - IP50

Name: AC servo motor BSH - 2.2 N.m - 3000 rpm - keyed shaft - with brake - IP50
Brand: Schneider Electric
SKU: BSH0702P12F2A
Price: 1916.00 GBP
Availability: OutOfStock

Product identifiers

SKU: BSH0702P12F2A

EAN: 3389118136335

GTIN: 3389118136335

MPN: BSH0702P12F2A

Loyalty points: 1

Price: £ 1,916.00 Excl. VAT

Specifications

Model	Rotary current synchronous motor
Bearing	Other
Duty cycle	Other
Power factor	-
Voltage type	AC
Rated current	-
Rated voltage	480 V
Cooling method	Other
Nominal torque	1.9 Nm
Shaft end type	Parallel key
Number of poles	6
Rated frequency
Housing material	Other
Number of phases	3
Construction type	Other
Overload capability	no
Full-load efficiency	-
Intrinsic safety (IS)	None
Operating temperature
Starting torque ratio	0
Breakdown torque ratio	0
Motor efficiency class	Other
Starting current ratio	0
With anti-condensation	no
Degree of protection (IP)	IP50
Degree of protection (NEMA)	-
Frame size according to IEC	-
Suitable for frequency control	no
Voltage anti-condensation heater	-
Insulation class according to IEC	Other
Vacuum pressure impregnation (VPI)	Other
Rated performance at rated frequency	1 kW
Output power anti-condensation heater	-
Rated rotational speed at rated frequency	6000 1/min
With resistance temperature detector (RTD)	no
With positive temperature coefficient resistor (PTC)	no

Documents

Deeplink product page
Environmental compliance declaration
User guide
Product data sheet
Catalogue
Environmental compliance declaration
Environmental compliance declaration
Declaration of conformity
Environmental disclosure
