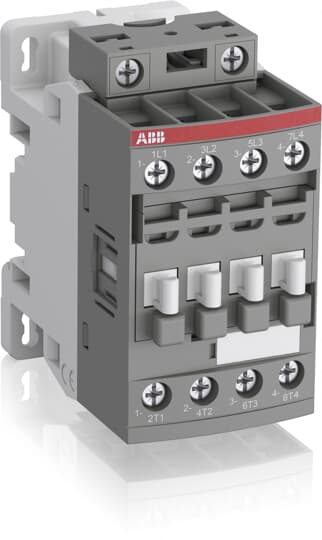

AF09-40-00-13 100-250V50/60HZ-DC Contactor
AF09-40-00-13 100-250V50/60HZ-DC Contactor
3x rewards on ABB Contactors at TLA
AF09-40-00-13 100-250V50/60HZ-DC Contactor by ABB is listed by 4 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, RS Components and 1 more. It is currently in stock at 3 of them. Trade prices range from £30.40 to £46.77 excl. VAT. Voltimum+ members earn 21 points per unit.
The AF09-40-00-13 is a 4 pole - 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 4 kW / 400 V AC (AC-3) and switching power circuits up to 25 A (AC-1) or 25 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Product identifiers
SKU: 1SBL137201R1300
EAN: 3471523115033
GTIN: 3471523115033
MPN: AF09-40-00-13
Loyalty points:
63
Price range: £ 30.40 - £ 46.77 Excl. VAT
Specifications
| Depth | 77 |
| Width | 45 |
| Height | 86 |
| Modular version | no |
| Operating voltage AC 50 Hz | |
| Operating voltage AC 60 Hz | |
| Rated operation power NEMA | - |
| Voltage type for actuating | AC/DC |
