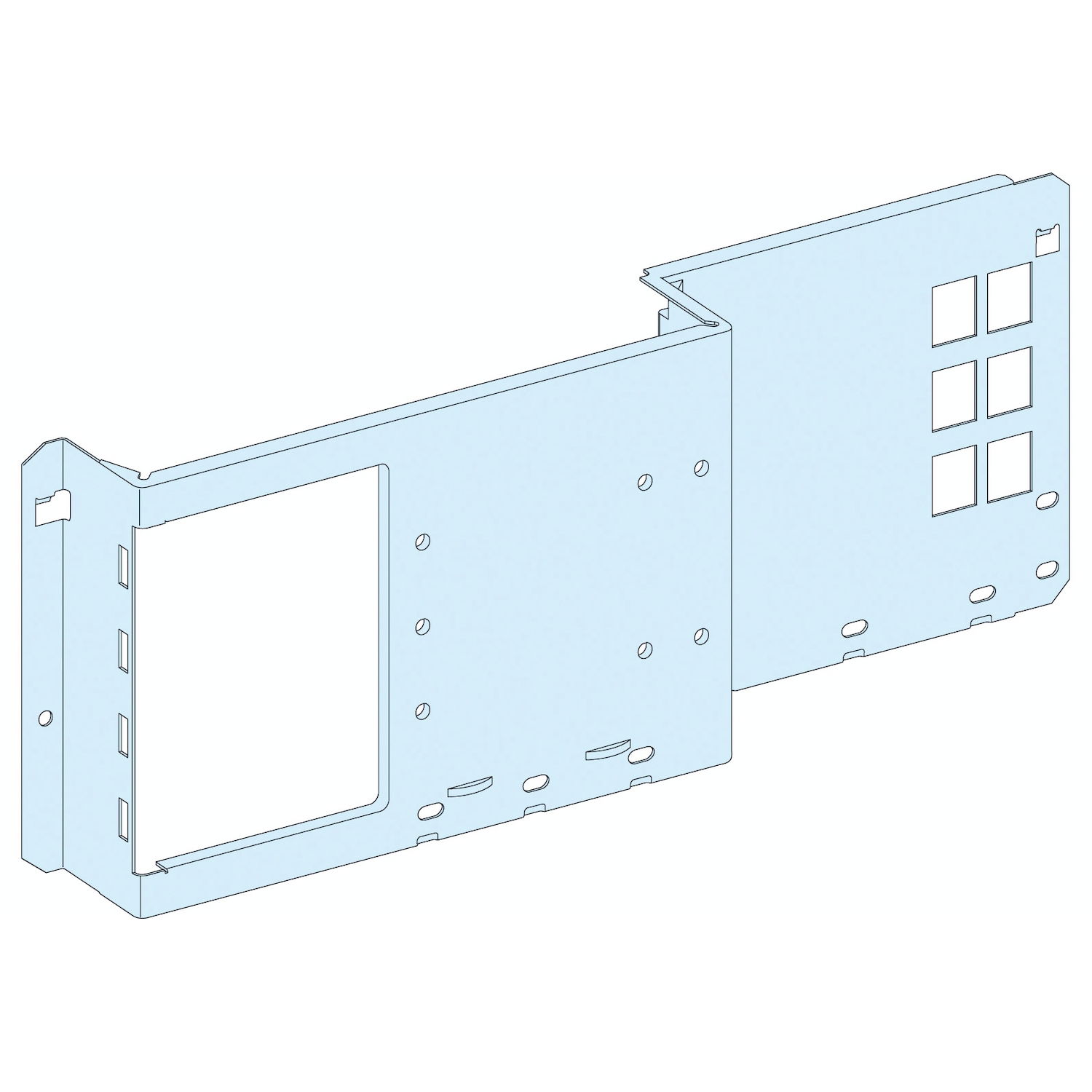

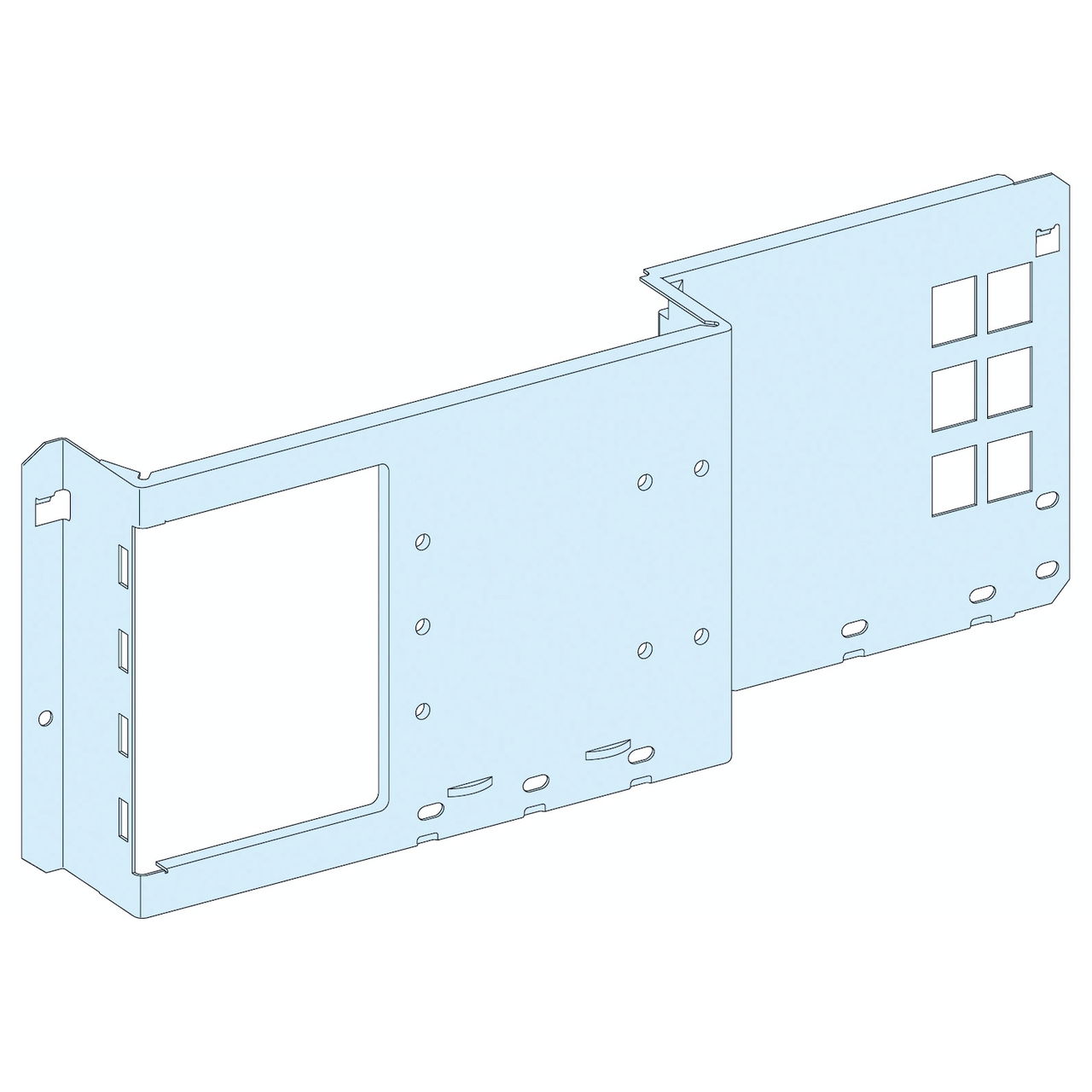

MOUNTING PLATE NSX/CVS/INS 250 HZ.FIXED TOGGLE

Link copied
SKU
EAN
GTIN
MPN

MOUNTING PLATE NSX/CVS/INS 250 HZ.FIXED TOGGLE by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £44.95 excl. VAT. Voltimum+ members earn 1 point per unit.

Mounting plate is suitable for PrismaSeT G floor-standing and wall-mounted enclosures. Compatibility with ComPact NSX/CVS/INS 250A. The rated operational voltage is 500V conforming to CSA/UL and 600V conforming to EN/IEC 60947-7-1. It is compatible with enclosures that have a width of 600mm. The nominal height and width are 200mm and 600mm respectively. It is made of steel. The color is White RAL 9003 and Complies with RoHS and REACh standards. Electrophoresis treatment and hot-polymerised polyester epoxy powder sheet steel.

Voltimum+ Loyalty Programme Loyalty points: 1

Price: £ 44.95 Excl. VAT

Specifications

Width 600 mm
Height 200 mm
Material Steel
Perforated no
Surface protection Powder coating

Documents

Declaration of Conformity (Sustainability)

LVS03030 REACh Regulation

Open

Instruction sheet

M.plate 3-4 Hz. fix. NS-INS250 tog. - Instruction Sheet

Open

Product data sheet

Open

Catalog

Catalogue PrismaSeT G

Open

Declaration of Conformity (Sustainability)

LVS03030 EU RoHS Directive

Open

Environmental Disclosure

PrismaSeT G WALL MOUNTED ENCLOSURE Up to 630A – IP30

Open

CAD

Open

CAD

Open
