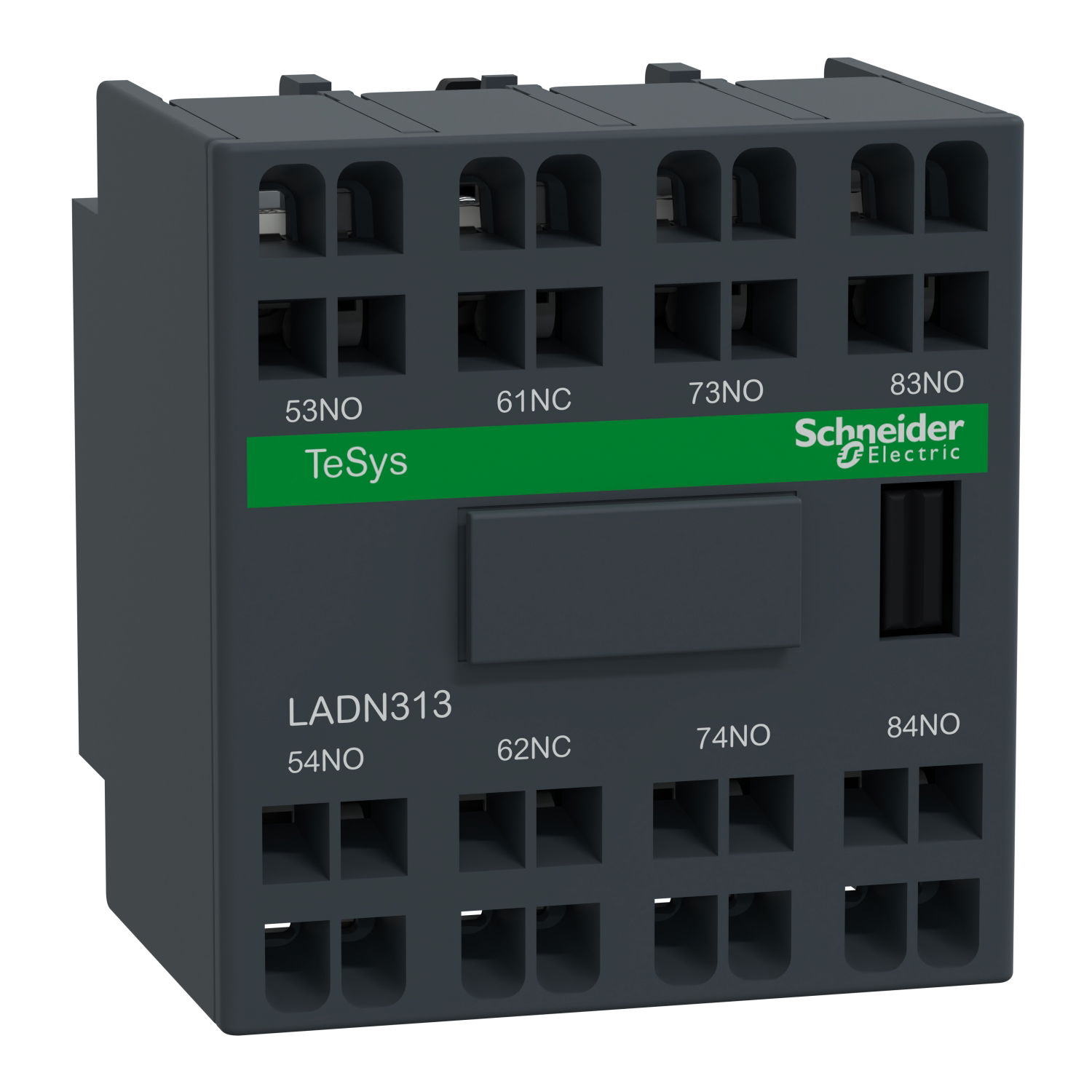

Auxiliary contact block, TeSys D, 3NO + 1NC, front mounting, spring terminals
1 / 2
Auxiliary contact block, TeSys D, 3NO + 1NC, front mounting, spring terminals
Auxiliary contact block, TeSys D, 3NO + 1NC, front mounting, spring terminals by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £28.30 to £28.58 excl. VAT. Voltimum+ members earn 4 points per unit.
TeSys D instantaneous auxiliary contact block, for contactors LC1D and control relays CAD. It provides 3NO+1NC contacts (NC mirror certified) rated up to 10A 690V AC, connection by spring terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Sustainability compliant.
Product identifiers
SKU: LADN313
EAN: 3389110821277
GTIN: 3389110821277
MPN: LADN313
Loyalty points:
4
Price range: £ 28.30 - £ 28.58 Excl. VAT
ETIM group
Specifications
| Model | Clip-on |
| Lamp holder | - |
| Mounting method | Front fastening |
| Type of electric connection | Spring clamp connection |
| Number of fault-signal switches | 0 |
| Number of contacts as change-over contact | 0 |
| Rated operation current Ie at AC-15, 230 V | 10 A |
| Number of contacts as normally open contact | 3 |
