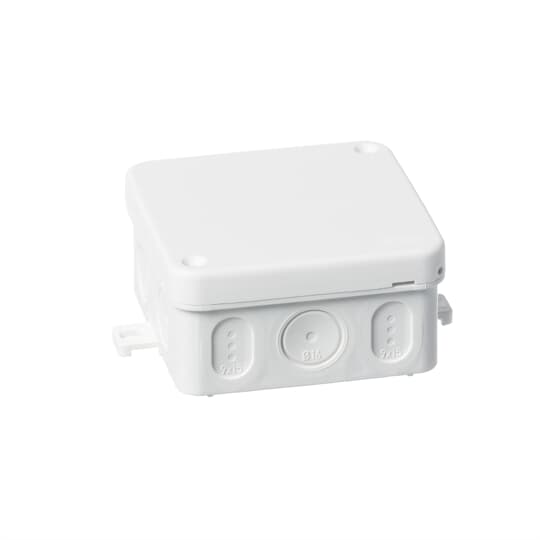

AP75 Junction box IP65 White IP65

Link copied
SKU
EAN
GTIN
MPN

AP75 Junction box IP65 White IP65 by ABB is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £4.34 excl. VAT. Voltimum+ members earn 2 points per unit.

The AP75 junction box (2,5 mm², 450 V) is equipped with fixed, two-component membranelid cable entries, 10 in the sides and three on the bottom. It has a stiff frame (75 x 75 mm). Suitable for cables up to Ø 18. The locks box by snapping and can be opened by inserting a screwdriver into the opening slots. Pull-out brackets make it possible to mount it to a conductive base. The box can also be sealed. Mounting temperature -15...+60 °C. Made of halogen free material (IEC/61249-2-21).

Voltimum+ Loyalty Programme Loyalty points: 2

Price: £ 4.34 Excl. VAT

Specifications

Depth 38.000
Model Junction box
Shape Square
Width 75
Colour White
Length 75
Castable no
Diameter -
Sealable yes
Cover model Blind cover
Weatherproof yes
With screening no
Mounting method Universal
For Ex-zone dust -
Circuit integrity -
Transparent cover no
Inlet from the rear yes
Mounting under water no
Explosion-tested version no
Degree of protection (IP) IP65
Rated insulation voltage Ui 400
Type of housing feed-through -

Documents

Deeplink product page

Open

Deeplink REACH

9AKK106713A4633_en_PDF_D_REACH _ SCIP Product Declaration.pdf

Open

Dimensioned drawing

9AKK107992A5294_enfisv_PDF_B_Dimensional drawing AP75.pdf

Open

Product data sheet

Open

Declaration RoHS

9AKK106713A4634_en_PDF_E_RoHS Product Declaration Wiring Accessories.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

CE_ABB_Surface-mounted junction boxes_ENG_15.11.2024_.pdf

Open
