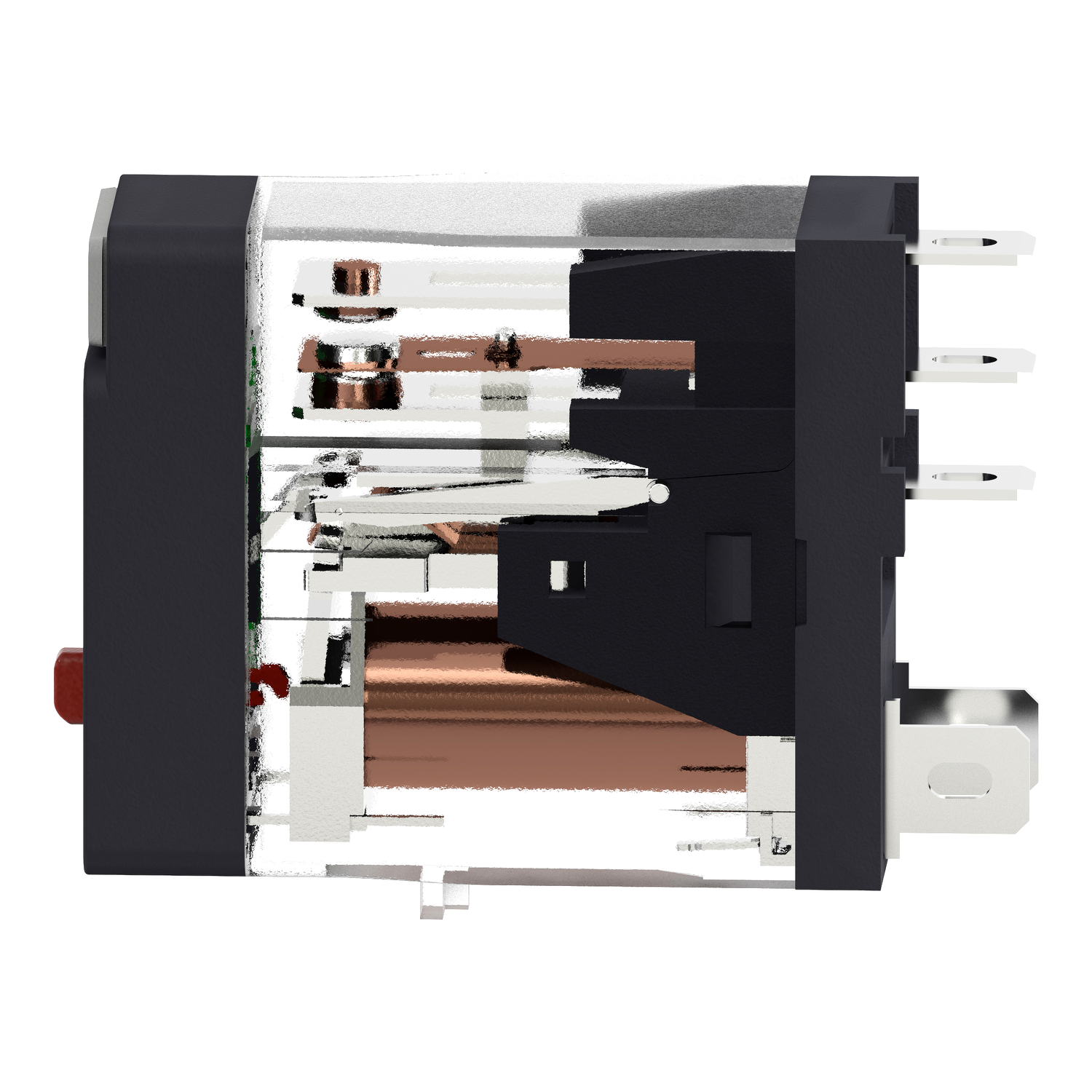

Interface plug-in relay, 10 A, 1 CO, lockable test button, LED, 24 V DC – Image 7 of 10

Interface plug-in relay, 10 A, 1 CO, lockable test button, LED, 24 V DC – Image 8 of 10

1 / 10

Interface plug-in relay, 10 A, 1 CO, lockable test button, LED, 24 V DC

Name: Interface plug-in relay, 10 A, 1 CO, lockable test button, LED, 24 V DC
Brand: Schneider Electric
SKU: RXG12BD
Availability: InStock

Interface plug-in relay, 10 A, 1 CO, lockable test button, LED, 24 V DC by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, RS Components and 2 more. It is currently in stock at 4 of them. Trade prices range from £4.93 to £7.92 excl. VAT. Voltimum+ members earn 1 point per unit.

"This Harmony RXG plug-in relay socket has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use." "It also offers lockable test button and LED indicator." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere thanks to its 16mm width." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0 0

Product identifiers

SKU: RXG12BD

EAN: 3606480688737

GTIN: 3606480688737

MPN: RXG12BD

Loyalty points: 1

Price range: £ 4.93 - £ 7.92 Excl. VAT

Specifications

Depth	28.8 mm
Width	13 mm
Height	34.5 mm
Nominal current	10 A
Material contact	Other
Drive, polarization	Polarized
With LED indication	yes
Complete with socket	no
Operating voltage DC
Max. starting current	-
Type of switch contact	Single contact
With detachable clamps	no
Degree of protection (IP)	IP40
Drive, switching attitude	Mono stable
Material of contact insert	Other
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Voltage type for actuating	DC
Material of contact surface	Other
Type of electric connection	Flat plug-in connection
With forced-guided contacts	no
Rated control supply voltage DC
Voltage type (operating voltage)	-
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Number of contacts as change-over contact	1
Number of contacts as normally open contact	0
Number of contacts as normally closed contact	0
Relay technology category according to IEC 61810-7	RT I
