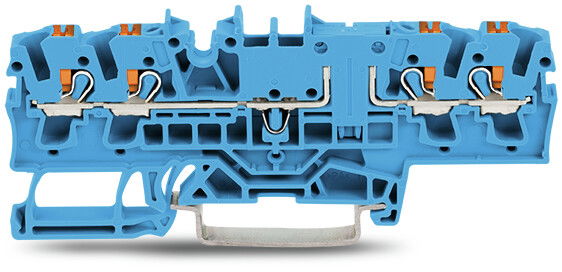

4-conductor through terminal block with push-button 2.5 mm² blue
Wago

4-conductor through terminal block with push-button 2.5 mm² blue

4-conductor through terminal block; with push-button; 2.5 mm²; with test option; same profile as 4-conductor disconnect terminal block; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; blue

Product identifiers

SKU: 2202-1804
EAN: 4055143974868
GTIN: 4055143974868
MPN: 2202-1804

V+ Loyalty points:

7

Price range: £ 3.55 - £ 3.63 Excl. VAT

Categories

Terminals, Connectors & Interconnects Terminal Blocks

Specifications

Depth 32.9
Width 5.2
Colour Blue
Height 87.5
EFNA0008 V0
Rated voltage 400
Mounting method DIN rail (top hat rail) 35 mm
Number of levels 1
Operating temperature 105 - 105
Material insulation body Thermoplastic
Explosion-tested version 'Ex e' yes
Type of electrical connection 1 Spring clamp connection
Number of clamp positions per level 4
Connectable conductor cross section multi-wired 0.25 - 2.5
Connectable conductor cross section fine-strand without cable end sleeve 0.25 - 4
