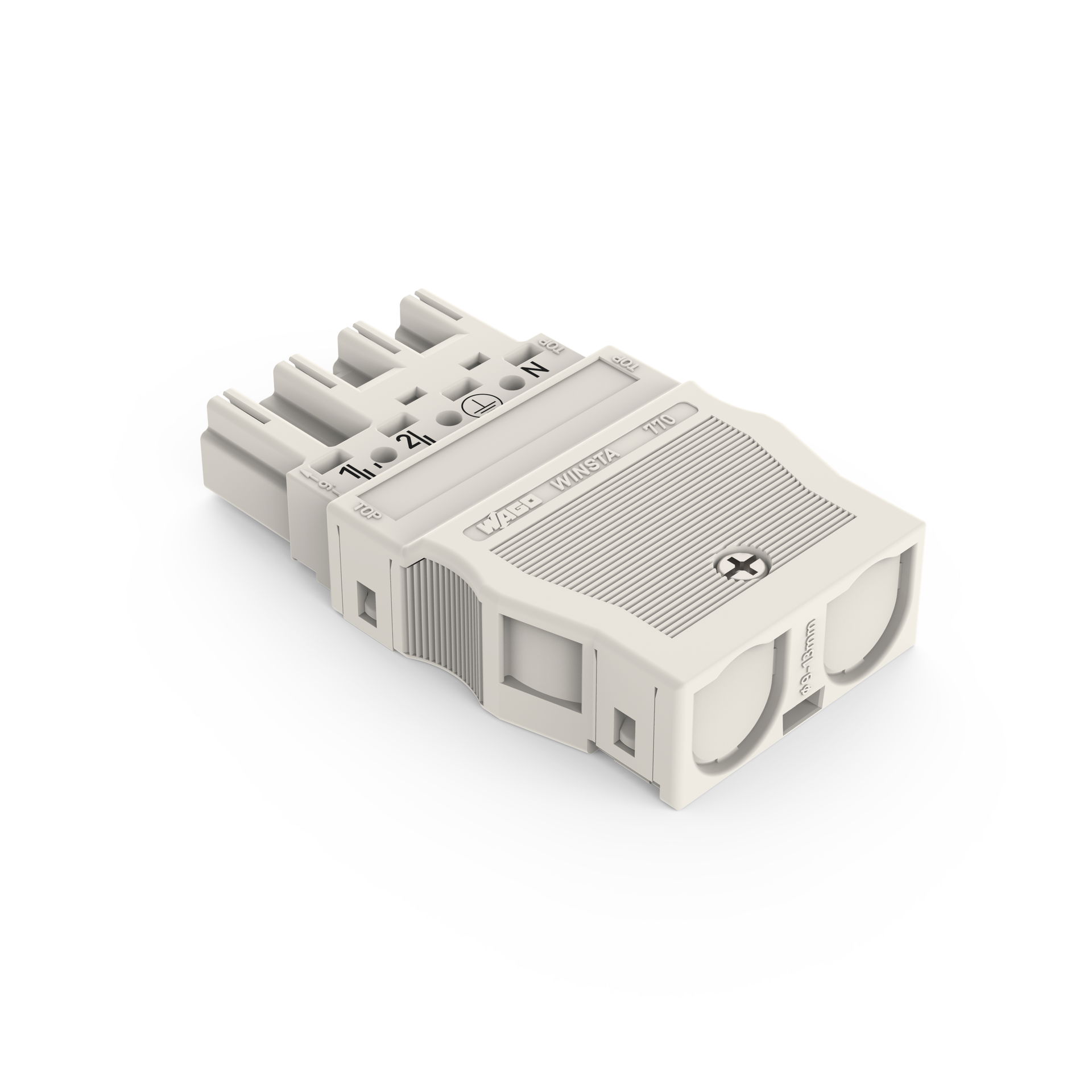

Plug with strain relief housing 4-pole white

Name: Plug with strain relief housing 4-pole white
Brand: Wago
SKU: 770-134
Availability: InStock

Plug; with strain relief housing; 4-pole; Cod. A; 4,00 mm²; white

Product identifiers

SKU: 770-134

EAN: 4044918254489

GTIN: 4044918254489

MPN: 770-134

Price range: £ 2.62 - £ 3.85 Excl. VAT

Specifications

Model	Plug
Width	44.6
Height	17
Length	76
Fire load	0.16028
Halogen free	yes
Rated current	25
Rated voltage	400
Cable diameter	9 - 13
Connection type	Spring clamp connection
Number of poles	4
Type of locking	Separate
Contact material	CuSn
Housing material	Polyamide (PA)
Pollution degree	3
Mechanical coding	yes
Pole codification	Other
With strain relief	yes
Rated surge voltage	6
Continuity resistance	1
Degree of protection (IP)	IP20
Surface treatment contacts	Tinned
Colour coding/contact insert	White
Number of connections per pole	2
RAL-number coding/contact insert	9010
Connection cross section (solid-core)	0.5 - 4
Connection cross section (fine-strand)	0.5 - 4
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
