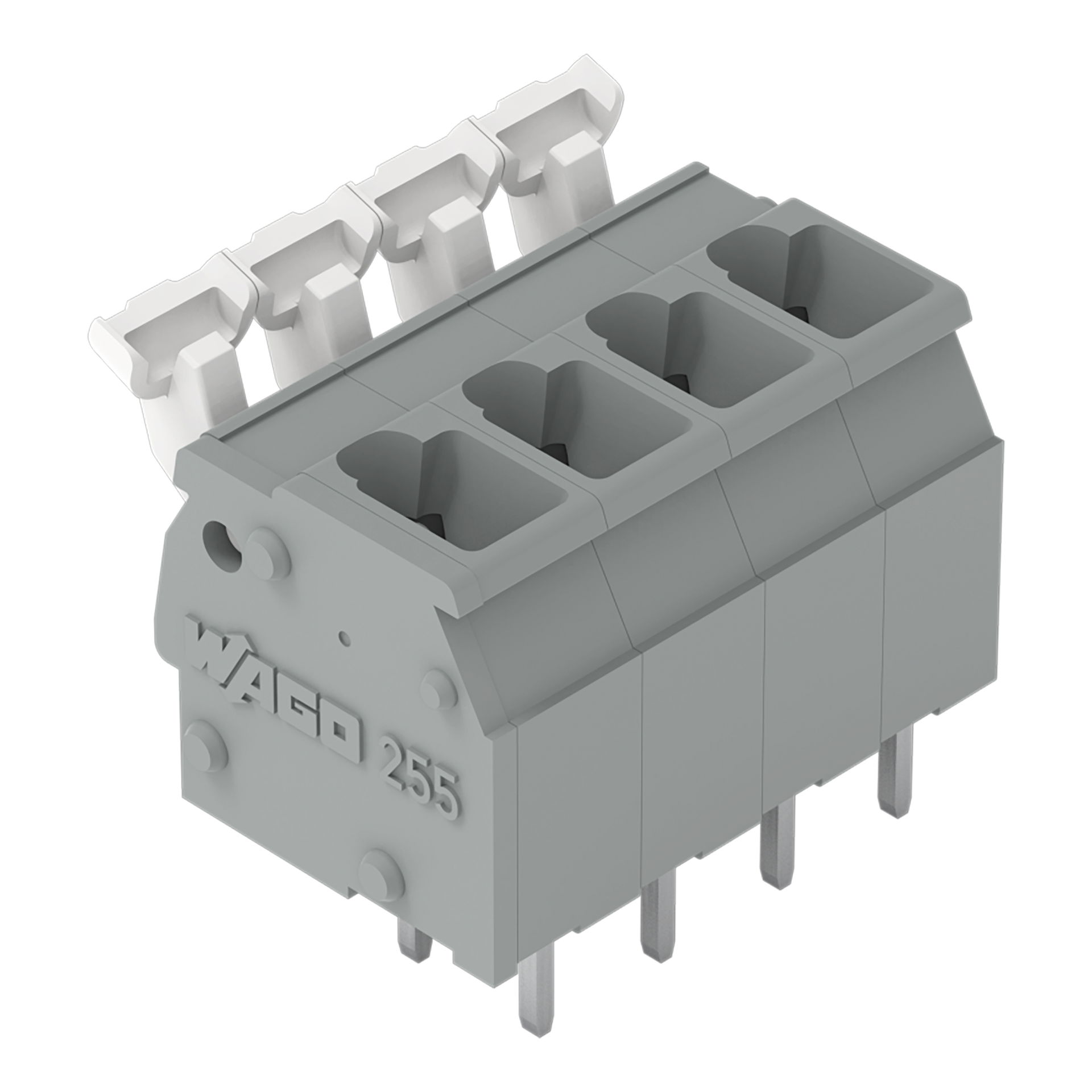

PCB terminal block push-button 2.5 mm² gray

Name: PCB terminal block push-button 2.5 mm² gray
Brand: Wago
SKU: 255-404
Availability: InStock

PCB terminal block; push-button; 2.5 mm²; Pin spacing 5/5.08 mm; 4-pole; CAGE CLAMP®; commoning option; gray

Product identifiers

SKU: 255-404

EAN: 4044918659048

GTIN: 4044918659048

MPN: 255-404

Price range: £ 1.21 - £ 1.45 Excl. VAT

Connectors

Specifications

Height	14.2
EFNA0008	V0
Length pin	4
Rated voltage	320
Housing colour	Grey
Type of banding	None
Number of levels	1
Pollution degree	2
Rated current In	24
Type of fastening	Solder
Connection type PCB	Soldering connection
Rated surge voltage	4
Operating temperature	-60 - 105
Over voltage category	III
Type of PCB fastening	Connecting contact
Diameter connection pin	-
Material insulation body	Thermoplastic
Connection type conductor	Spring clamp connection
Material connection surface	Tin
Modular spacing connections	5
RAL-number (similar) housing	-
Angle PCB/conductor connection	90° (upwards vertical)
Number of electrical connections	4
Degree of protection (IP), mounted	-
Connectable conductor cross section solid-core	0.08 - 2.5
Connectable conductor cross section multi-wired	0.08 - 2.5
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 1.5
Connectable conductor cross section fine-strand without cable end sleeve	0.08 - 2.5
