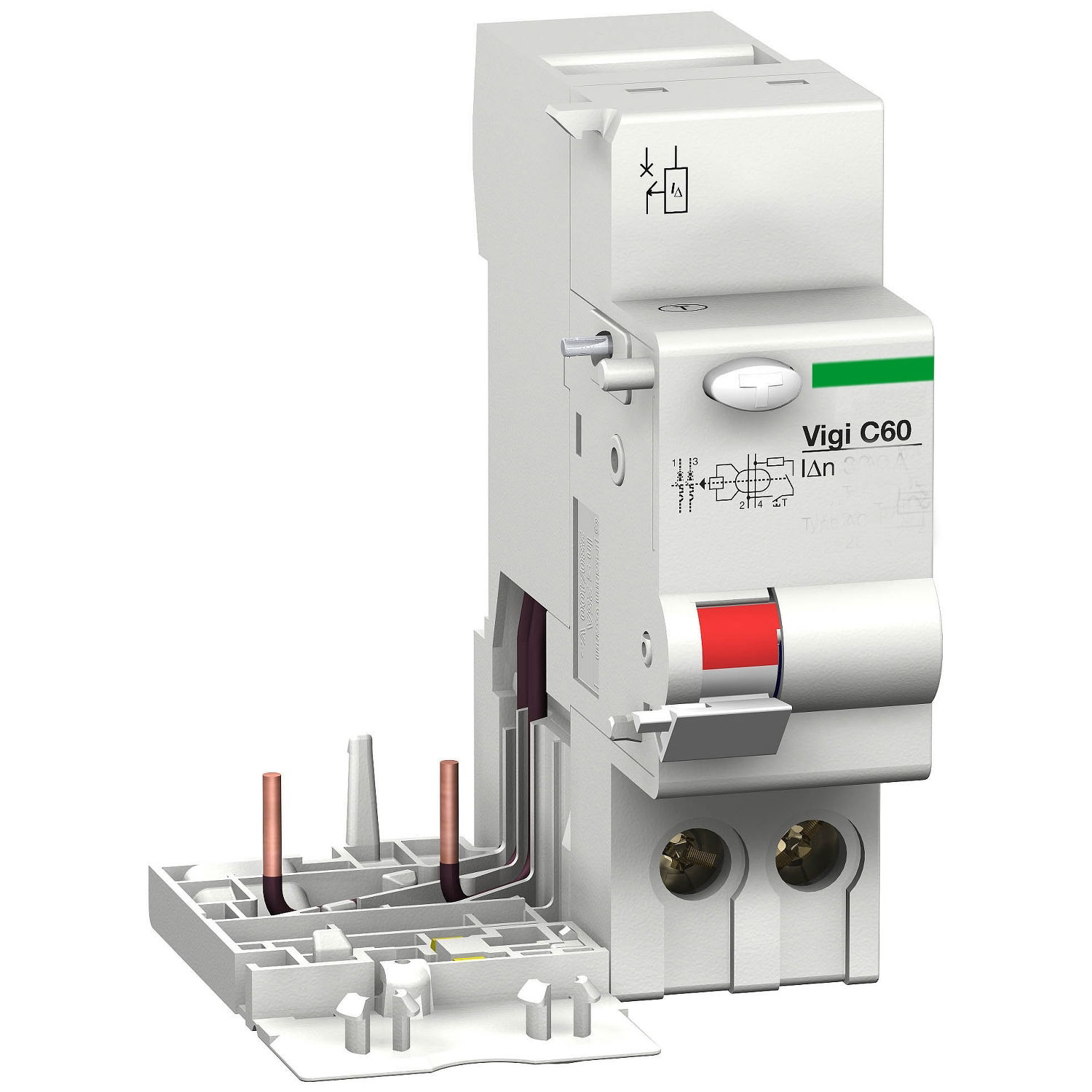

Multi9 - Vigi C60 - 2P - 63A - class A SI - 230/400 V - 30mA

Link copied
SKU
EAN
GTIN
MPN

Multi9 - Vigi C60 - 2P - 63A - class A SI - 230/400 V - 30mA by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including RS Components and Rexel Group. It is currently in stock at all of them. Trade price £276.13 excl. VAT. Voltimum+ members earn 26 points per unit.

This Vigi C60 is a modular add-on residual current devices. It is a 2P and rated current is 63A. The earth leakage protection class is A-SI type with a sensitivity of 30mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. The A-SI type provides increased immunity from electrical interference and polluted or corrosive environments. This product is compliant with EN/IEC 61009-1 and EN/IEC 61009-2-1 standard. The Ue rated operational voltage is 230VAC or 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 4. The product color is light grey (RAL7035). The dimensions are (W) 36mm x (H) 87mm x (D) 74mm. The weight is 150g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 60°C.

Voltimum+ Loyalty Programme Loyalty points: 26

Price: £ 276.13 Excl. VAT

Specifications

Frequency 50 Hz
Power loss 3 W
Max. delay time 0 ms
Nominal current 63 A
Nominal voltage
Number of poles 2
Delay adjustable no
Pollution degree 3
Leakage current type A
With interlocking device no
Rated insulation voltage Ui 500 V
Rated fault current adjustable no
Rated impulse withstand voltage Uimp 4 kV
Connectable conductor cross section multi-wired

Documents

Declaration of Conformity (Sustainability)

M9V31263 REACh Regulation

Open

User guide

Routine operating checks of Residual Current Devices - User Guide

Open

Product data sheet

Open

Catalog

Multi9 - Catalog 13 April 2026 - Multistandard protection for OEM applications

Open

Brochure

multistandard protection for oem applications brochure multi9

Open

Declaration of Conformity (Sustainability)

M9V31263 EU RoHS Directive

Open

Declaration of conformity

UKCA decl - FD160225014-UK - RCD Vigi C60 OEM

Open

Declaration of Conformity (Sustainability)

M9V31263 OECD PFAS Regulation

Open
