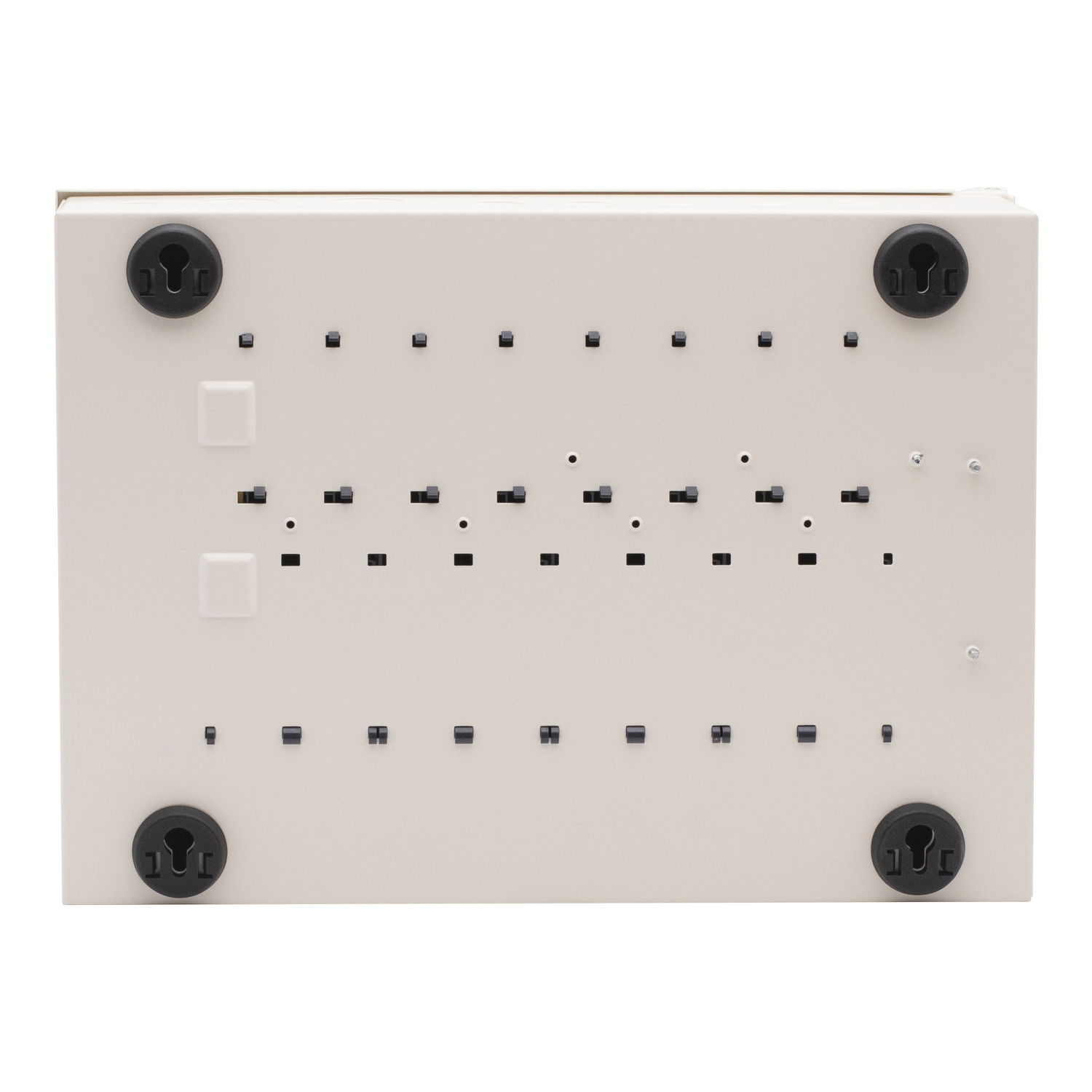

Acti9 Isobar P A - distribution board - 14 way SP+N

Link copied
SKU
EAN
GTIN
MPN

Acti9 Isobar P A - distribution board - 14 way SP+N by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Rexel Group, City Electrical Factors and 2 more. It is currently in stock at all of them. Trade prices range from £130.75 to £144.09 excl. VAT. Voltimum+ members earn 22 points per unit.

This Acti9 Isobar P A product is a distribution board, up to 63A. It is a 14 ways of 1 pole outgoer. This distribution board include a 63A switch disconnector incomer. It is suitable for standard, commercial and industrial applications. The dimensions are (W) 417mm x (H) 300mm x (D) 117mm. According to BS/EN 60529 standard, the IP degree of protection is IP3x. The color of this distribution board is cream (RAL 9001). This distribution board is compliant with BS/EN 61439-3 standard.

Voltimum+ Loyalty Programme Loyalty points: 22

Price range: £ 130.75 - £ 144.09 Excl. VAT

Specifications

Depth 117 mm
Width 417 mm
Colour Other
Height 300 mm
DIN-rail yes
With lock yes
RAL-number 9001
Cover model Closed
Inner depth -
UV resistant no
Built-in width -
Built-in height -
Type of closure Other
Type of covering Door
Signal passing door no
Neutral terminal block yes
Earthing terminal block yes
Width in number of modular spacings 14

Documents

Declaration of Conformity (Sustainability)

SEA9APN14 REACh Regulation

Open

Instruction sheet

Acti9 Isobar P Type A Instruction sheet

Open

Product data sheet

Open

Catalog

Acti9 Isobar P Active Safety System

Open

Declaration of Conformity (Sustainability)

SEA9APN14 EU RoHS Directive

Open

Declaration of conformity

EU declaration of conformity

Open

Declaration of Conformity (Sustainability)

SEA9APN14 OECD PFAS Regulation

Open

Declaration of Conformity (Sustainability)

SEA9APN14 POP Directive

Open
