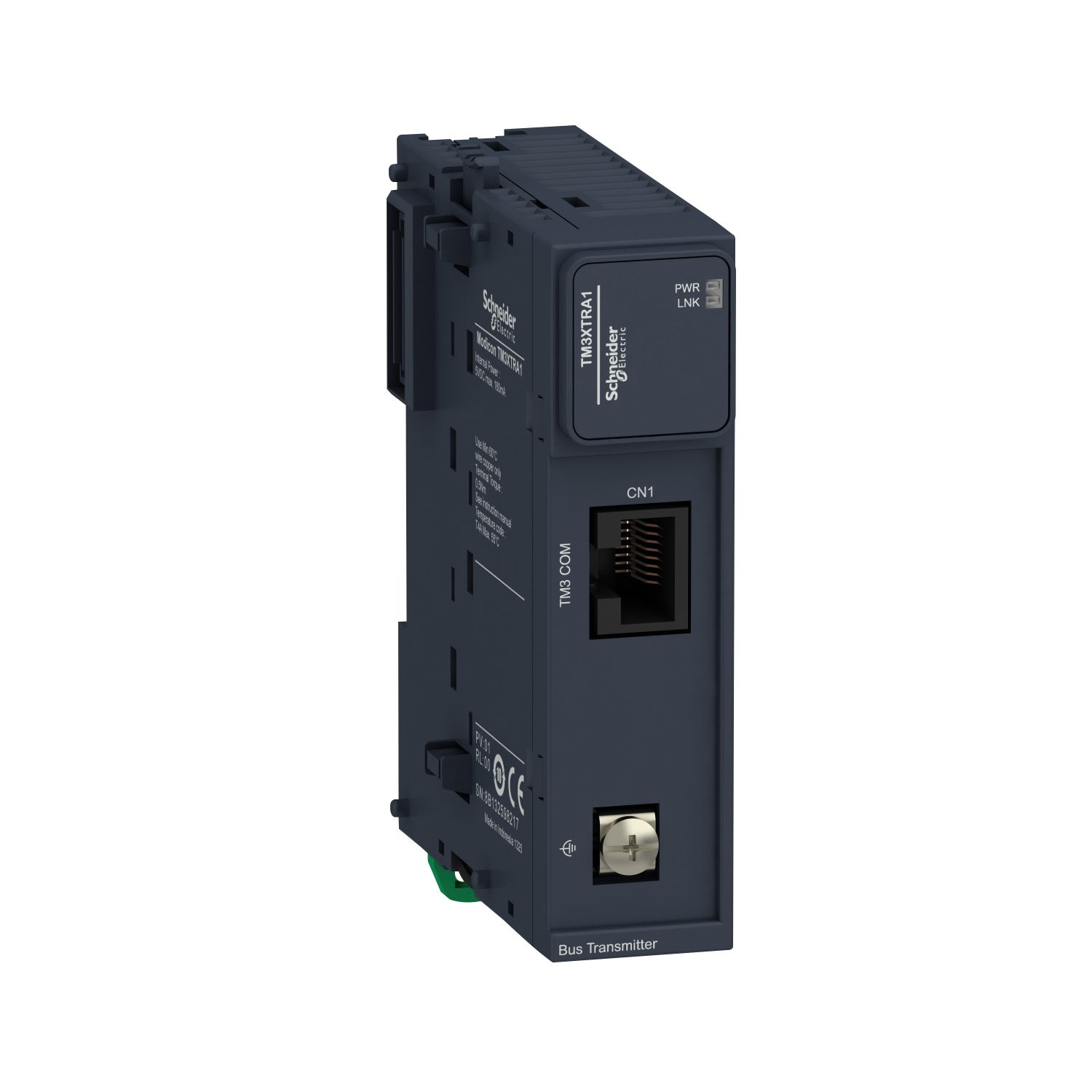

Modicon TM3 - Remote transmitter module

Link copied
SKU
EAN
GTIN
MPN

Modicon TM3 - Remote transmitter module by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Farnell, RS Components and 1 more. It is currently in stock at 3 of them. Trade prices range from £71.31 to £93.67 excl. VAT. Voltimum+ members earn 12 points per unit.

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The remote transmitter module is physically connected by a bus expansion cable. It is remote transmitter module with a current consumption of 100mA, 30mA at 5V DC via bus connector and a maximum power dissipation of 0.6W. It is furnished with RJ45 connector for connecting the bus receiver, screw connector terminal for electrical connection. It is an IP20 rated product. Its dimensions are 23.65mm (Width) x 73.3mm (Depth) x 90mm (Height). It weighs 0.065kg. This product is certified by CE, Merchant Navy, GOST, CSA HazLoc, C-Tick. It meets Class I Division 2 Groups A/B/C/D CSA C22.2 No 213, Class I Division 2 Groups A/B/C UL 1604, CSA C22.2 No 142, IEC 61131-2 and UL 508 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

Voltimum+ Loyalty Programme Loyalty points: 12

Price range: £ 71.31 - £ 93.67 Excl. VAT

Specifications

Depth 73.3 mm
Width 23.65 mm
Height 90 mm
IO link master no
System accessory no
Supply voltage DC
Radio standard GSM no
Radio standard LTE no
Radio standard UMTS no
Rack-assembly possible no
Supply voltage AC 50 Hz
Radio standard Bluetooth no
With potential separation no
SIL according to IEC 61508 None
Number of HW-interfaces CAN 0
Supporting protocol for ASI no
Supporting protocol for KNX no
Number of HW-interfaces other 1
Suitable for safety functions no
Wall mounting/direct mounting no
Number of HW-interfaces RS-422 0
Supporting protocol for Modbus no
Supporting protocol for TCP/IP no
Number of HW-interfaces parallel 0
Supporting protocol for EtherCAT no
Supporting protocol for PROFIBUS no
Appendant operation agent (Ex ib) no
Supporting protocol for DeviceNet no
Explosion safety category for dust None
Supporting protocol for EtherNet/IP no
Supporting protocol for SafetyBUS p no
Supporting protocol for PROFINET CBA no
Supporting protocol for DeviceNet Safety no
Certified for UL hazardous location class I no
Supporting protocol for Foundation Fieldbus no
Certified for UL hazardous location class III no
Certified for UL hazardous location division 1 no
Supporting protocol for AS-Interface Safety at Work no
Certified for UL hazardous location group B (hydrogen) no
Fieldbus connection over separate bus coupler possible no
Certified for UL hazardous location group E (metal dusts) no
Certified for UL hazardous location group G (non-conductive dusts) no
