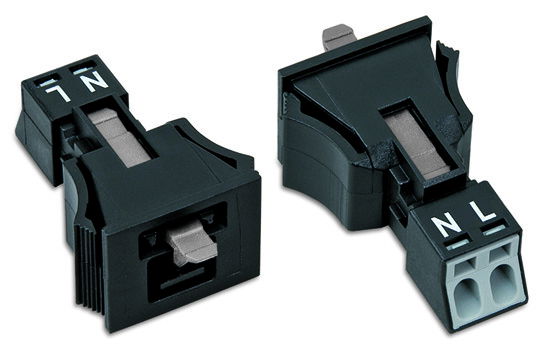

Snap-in plug 2-pole Cod. A black

Name: Snap-in plug 2-pole Cod. A black
Brand: Wago
SKU: 890-712
Availability: InStock

Snap-in plug 2-pole Cod. A black by Wago is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £1.05 excl. VAT.

Snap-in plug; 2-pole; Cod. A; 1,50 mm²; black

Product identifiers

SKU: 890-712

EAN: 4045454233457

GTIN: 4045454233457

MPN: 890-712

Loyalty points: 2 (x50)

Price: £ 1.05 Excl. VAT

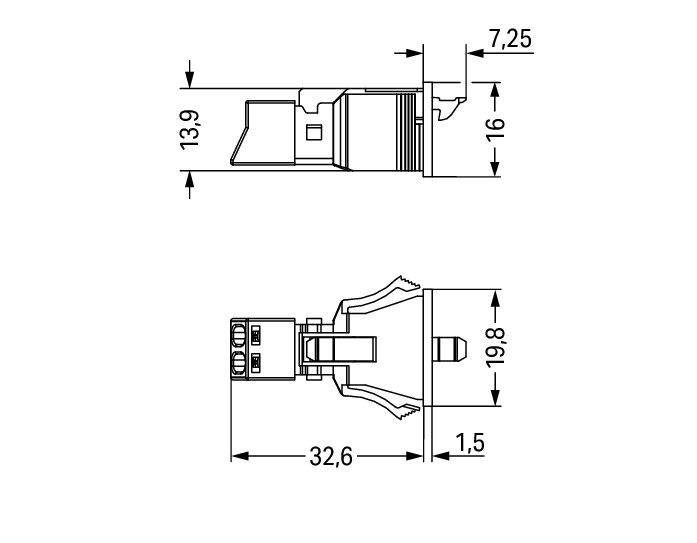

Specifications

Model	Plug
Width	19.8
Height	16
Length	39.85
Fire load	0.03111
Halogen free	yes
Rated current	16
Rated voltage	250
Housing colour	Black
Connection type	Spring clamp connection
Number of poles	2
Type of locking	Integrated in plug-in connector
Built-in version	Snap-in/screw-in device
Contact material	CuSn
Housing material	Polyamide (PA)
Insert direction	Straight
Pollution degree	3
Mechanical coding	yes
Pole codification	L, N
Rated surge voltage	4
Angle of inclination
Length soldering pin	-
Continuity resistance	1
Connection size thread	No thread connection
Wall thickness housing	2
Degree of protection (IP)	IP20
Surface treatment contacts	Tinned
Colour coding/contact insert	Black
Number of connections per pole	1
RAL-number coding/contact insert	9004
Colour of the separate adapter piece	-
Connection cross section (solid-core)	0.25 - 1.5
Connection cross section (fine-strand)	0.25 - 1.5
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
