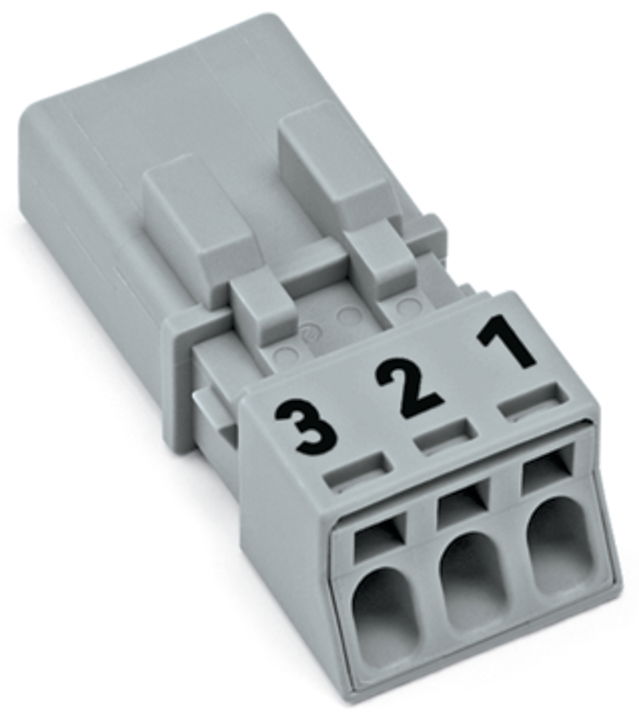

Plug 3-pole Cod. B gray

Name: Plug 3-pole Cod. B gray
Brand: Wago
SKU: 890-253
Availability: InStock

Plug; 3-pole; Cod. B; 1,50 mm²; gray

Product identifiers

SKU: 890-253

EAN: 4055143499859

GTIN: 4055143499859

MPN: 890-253

Price: £ 3.05 Excl. VAT

Specifications

Model	Plug
Width	15
Height	11.7
Length	34.1
Fire load	0.02167
Halogen free	yes
Rated current	16
Rated voltage	250
Cable diameter
Connection type	Spring clamp connection
Number of poles	3
Type of locking	Separate
Contact material	CuSn
Housing material	Polyamide (PA)
Pollution degree	3
Mechanical coding	yes
Pole codification	1, 2, 3
With strain relief	no
Rated surge voltage	4
Continuity resistance	1
Degree of protection (IP)	IP20
Surface treatment contacts	Tinned
Colour coding/contact insert	Grey
Number of connections per pole	1
RAL-number coding/contact insert	7042
Connection cross section (solid-core)	0.25 - 1.5
Connection cross section (fine-strand)	0.25 - 1.5
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
