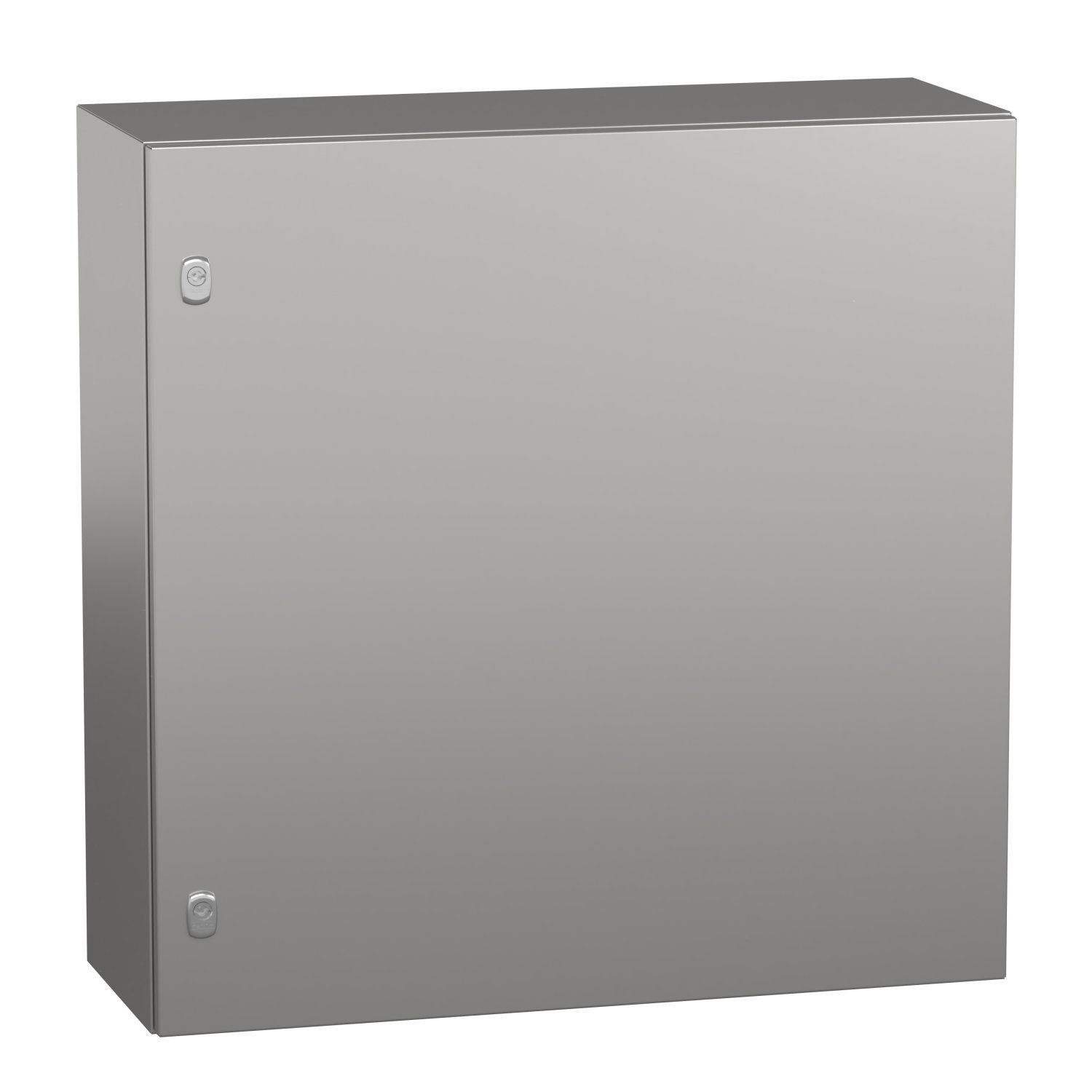

"PanelSet S3X stainless 304L, Scotch Brite® finish, H800xW800xD300 mm."
"PanelSet S3X is a stainless steel 304L wall-mounting enclosure designed for a multi-purpose application and resistance to corrosion" "It is certified to UL 508 type A and CAN/CSA 22 standards, and has an IK10 (IEC 62262) rating for impact resistance and an IP66 (IEC 60529) rating for dust and water resistance" "The enclosure has a nominal height, width and depth of 800mm, 800mm and 300mm respectively" "It is made with Scotch-Brite® brushed surface finish and features a single piece body with a cross-shaped structure and gutter shaped front rail" "The door is plain and is reversible up to 120°, and it is secured with two lock points lock and 3mm double-bar insert" "The door is removable for maintenance purposes" "The net weight of the enclosure is 32kg"
Product identifiers
SKU: NSYS3X8830
EAN: 3606480155321
GTIN: 3606480155321
MPN: NSYS3X8830
Loyalty points:
341
Price range: £ 761.24 - £ 854.28 Excl. VAT
Categories
Features
|
Depth
|
300 mm
|
|
Width
|
800 mm
|
|
Colour
|
Stainless steel
|
|
Height
|
800 mm
|
|
Material
|
Stainless steel
|
|
Couplable
|
FALSE
|
|
With door
|
TRUE
|
|
RAL-number
|
7035
|
|
With cover
|
FALSE
|
|
EMC-version
|
FALSE
|
|
Corner model
|
FALSE
|
|
Freestanding
|
FALSE
|
|
Pitched roof
|
FALSE
|
|
Pre-stamping
|
FALSE
|
|
Pole fastening
|
FALSE
|
|
With rear door
|
FALSE
|
|
Impact strength
|
IK10
|
|
Number of doors
|
1
|
|
Number of locks
|
1
|
|
Material quality
|
Stainless steel 304 (V2A)
|
|
With glazed door
|
FALSE
|
|
Surface finishing
|
Other
|
|
Transparent cover
|
FALSE
|
|
With mounting plate
|
FALSE
|
|
Intermediate mounting
|
FALSE
|
|
With ventilation door
|
FALSE
|
|
Degree of protection (IP)
|
IP55
|
|
Floor standing wall model
|
TRUE
|
|
Number of connector holes
|
0
|
|
Suitable for wall built-in
|
FALSE
|
|
Suitable for wall mounting
|
TRUE
|
|
Degree of protection (NEMA)
|
12
|
|
Suitable for outdoor set-up
|
FALSE
|
|
Suitable for metrical mounting
|
TRUE
|
|
Mounting plate depth-adjustable
|
FALSE
|
|
Max. permissible load of the door(s) according to IEC 62208
|
50 N
|
|
Max. permissible load of the enclosure according to IEC 62208
|
50 N
|
|
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
|
-
|
|
Max. permissible load of the mounting plate according to IEC 62208
|
250 N
|
