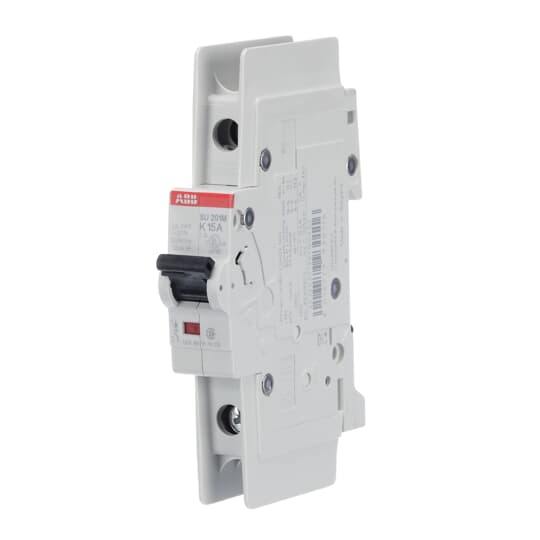

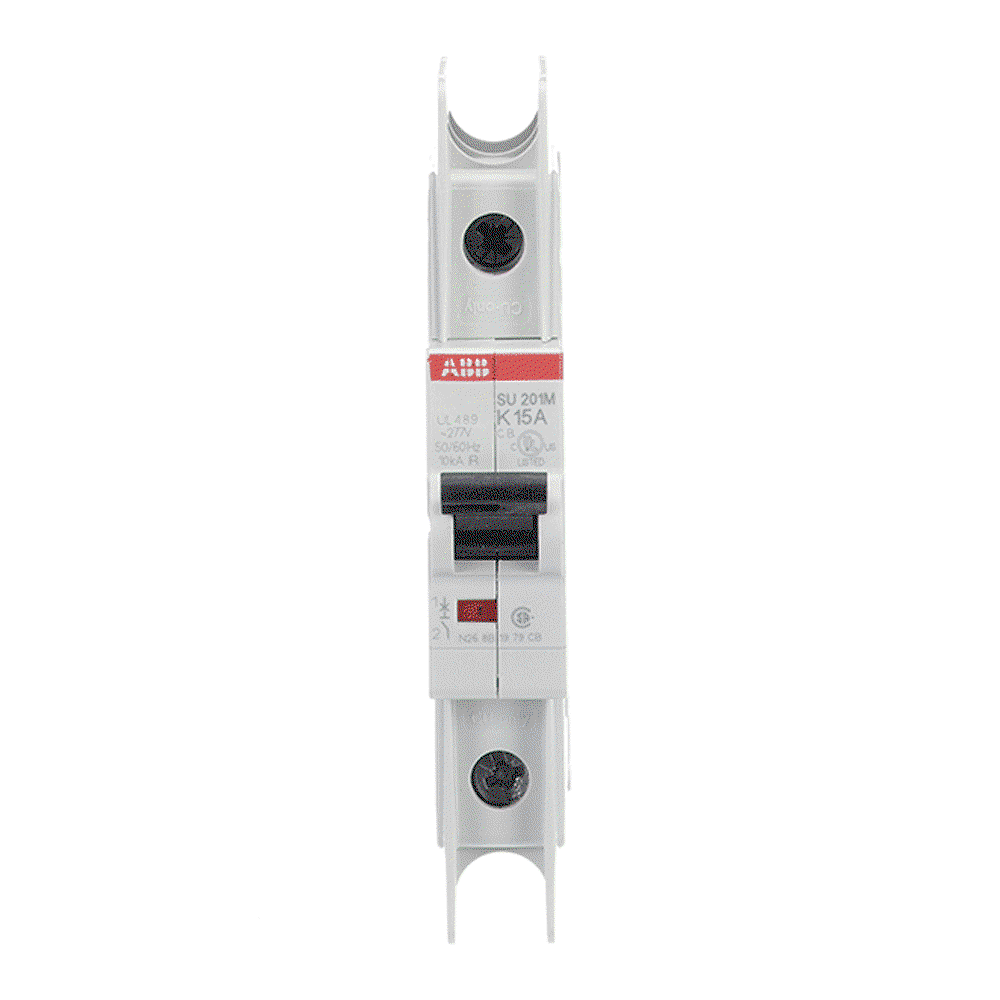

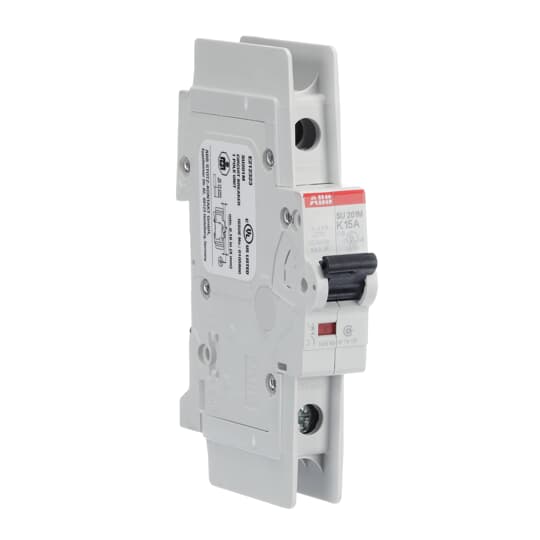

Miniature Circuit Breaker - SU200M - 1P - 15 A - K - (230 V AC) 11.2 kA
ABB

Miniature Circuit Breaker - SU200M - 1P - 15 A - K - (230 V AC) 11.2 kA

SU201M-K15 Miniature Circuit Breaker K-Char., UL10kA, IEC15kA, 15A, 1P UL489

Product identifiers

SKU: 2CDS271337R0457
EAN: 4016779930116
GTIN: 4016779930116
MPN: SU201M-K15

V+ Loyalty points:

24

Price range: £ 40.36 - £ 53.49 Excl. VAT

Categories

MCBs Switchgear & Circuit Protection Circuit Breakers

Specifications

Frequency
Power loss 2.4
Voltage type AC/DC
Rated current 15
Rated voltage
Built-in depth 69
Explosion-proof no
Pollution degree 3
Current limiting class 3
Number of poles (total) 1
Number of protected poles 1
Rated insulation voltage Ui 440
Width in number of modular spacings 1
Rated impulse withstand voltage Uimp 4
Connectable conductor cross section solid-core
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 11.2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V 15

Documents

Deeplink product page
Deeplink REACH
Instructions for use
Product data sheet
Declaration RoHS
Declaration DOC CE (Declaration of conformity CE)
Declaration EPD (Environmental Product Declaration)
