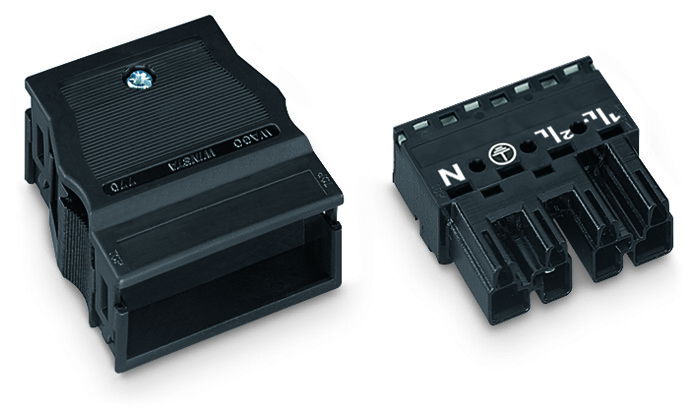

Plug with strain relief housing 4-pole black

Name: Plug with strain relief housing 4-pole black
Brand: Wago
SKU: 770-114
Availability: InStock

Plug; with strain relief housing; 4-pole; Cod. A; 4,00 mm²; black

Product identifiers

SKU: 770-114

EAN: 4044918254410

GTIN: 4044918254410

MPN: 770-114

Price range: £ 3.85 - £ 4.28 Excl. VAT

Specifications

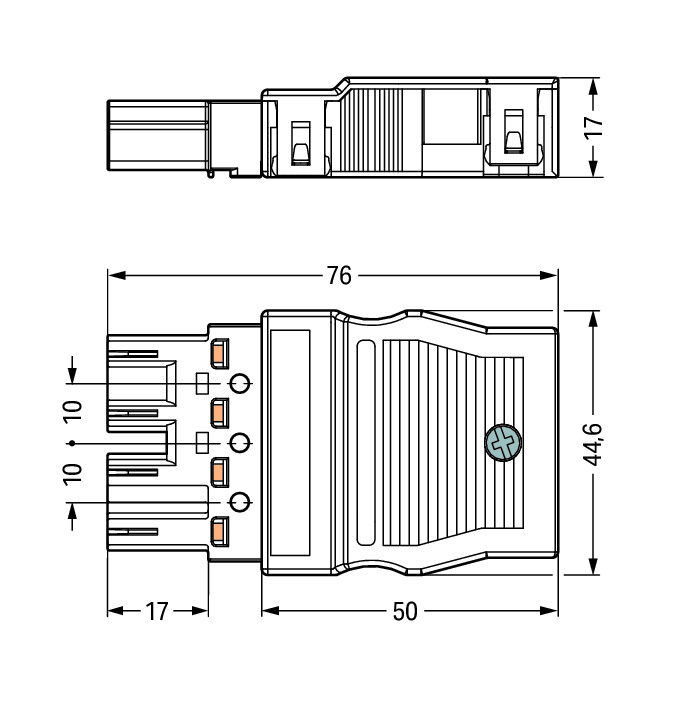

Model	Plug
Width	44.6
Height	17
Length	76
Fire load	0.16056
Halogen free	yes
Rated current	25
Rated voltage	400
Cable diameter	9 - 13
Connection type	Spring clamp connection
Number of poles	4
Type of locking	Separate
Contact material	CuSn
Housing material	Polyamide (PA)
Pollution degree	3
Mechanical coding	yes
Pole codification	Other
With strain relief	yes
Rated surge voltage	6
Continuity resistance	1
Degree of protection (IP)	IP20
Surface treatment contacts	Tinned
Colour coding/contact insert	Black
Number of connections per pole	2
RAL-number coding/contact insert	9004
Connection cross section (solid-core)	0.5 - 4
Connection cross section (fine-strand)	0.5 - 4
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
