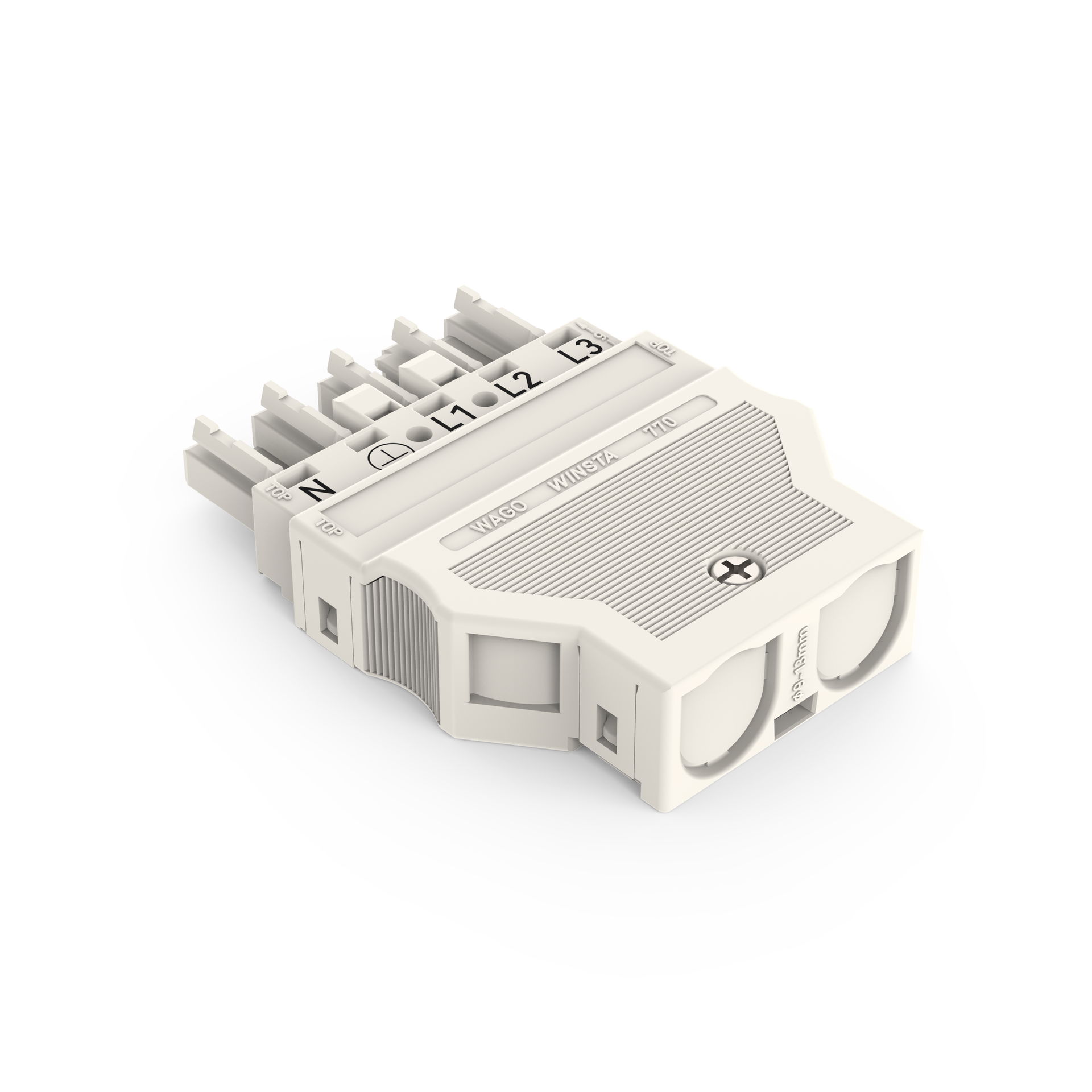

Socket with strain relief housing 5-pole white

Name: Socket with strain relief housing 5-pole white
Brand: Wago
SKU: 770-125
Availability: InStock

Socket; with strain relief housing; 5-pole; Cod. A; 4,00 mm²; white

Product identifiers

SKU: 770-125

EAN: 4044918252201

GTIN: 4044918252201

MPN: 770-125

Price: £ 5.23 Excl. VAT

Specifications

Model	Bus
Width	54.6
Height	17
Length	76
Fire load	0.1725
Halogen free	yes
Rated current	25
Rated voltage	400
Cable diameter	9 - 13
Connection type	Spring clamp connection
Number of poles	5
Type of locking	Separate
Contact material	CuSn
Housing material	Polyamide (PA)
Pollution degree	3
Mechanical coding	yes
Pole codification	Other
With strain relief	yes
Rated surge voltage	6
Continuity resistance	1
Degree of protection (IP)	IP20
Surface treatment contacts	Tinned
Colour coding/contact insert	White
Number of connections per pole	2
RAL-number coding/contact insert	9010
Connection cross section (solid-core)	0.5 - 4
Connection cross section (fine-strand)	0.5 - 4
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
