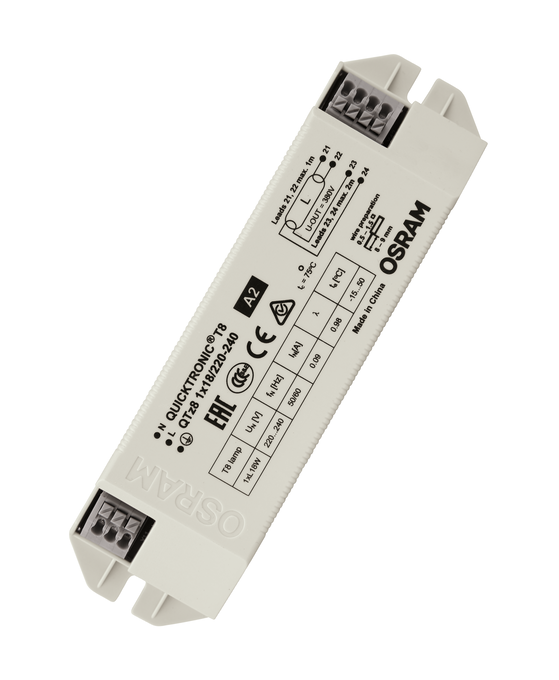

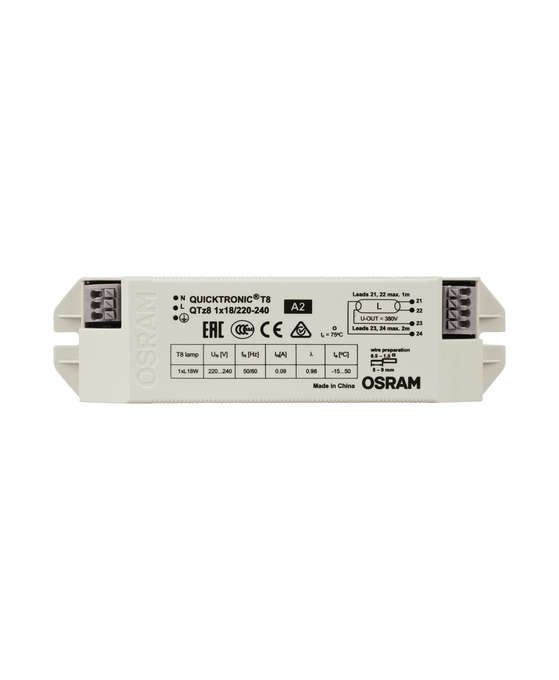

QTz8 1X18
1 / 2
QTz8 1X18
Product benefits
- Compact housing
- Automatic restart after lamp replacement
Areas of application
- Public buildings
- Sports halls
- Strip lighting
- Suitable for luminaires of protection class I
Product features
- Supply voltage: 220 240 V
- Line voltage: 198 264 V
- Line frequency: 50 Hz | 60 Hz
- Energy Efficiency Index EEI: A2
- Number of lamp switching cycles: up to 3,500
Product identifiers
SKU: 4008321863263
EAN: 4008321863263
GTIN: 4008321863263
MPN: 4008321863263
Specifications
Lifespan
| ECG lifetime | 30000 h 1) |
Capabilities
| Dimmable | No |
| Max. cable length to lamp/LED module | 2.0 m / 1.0 m |
| Suitable for fixtures with prot. class | I |
Electrical data
| Nominal wattage | 19.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Operating frequency | 30…45 kHz |
