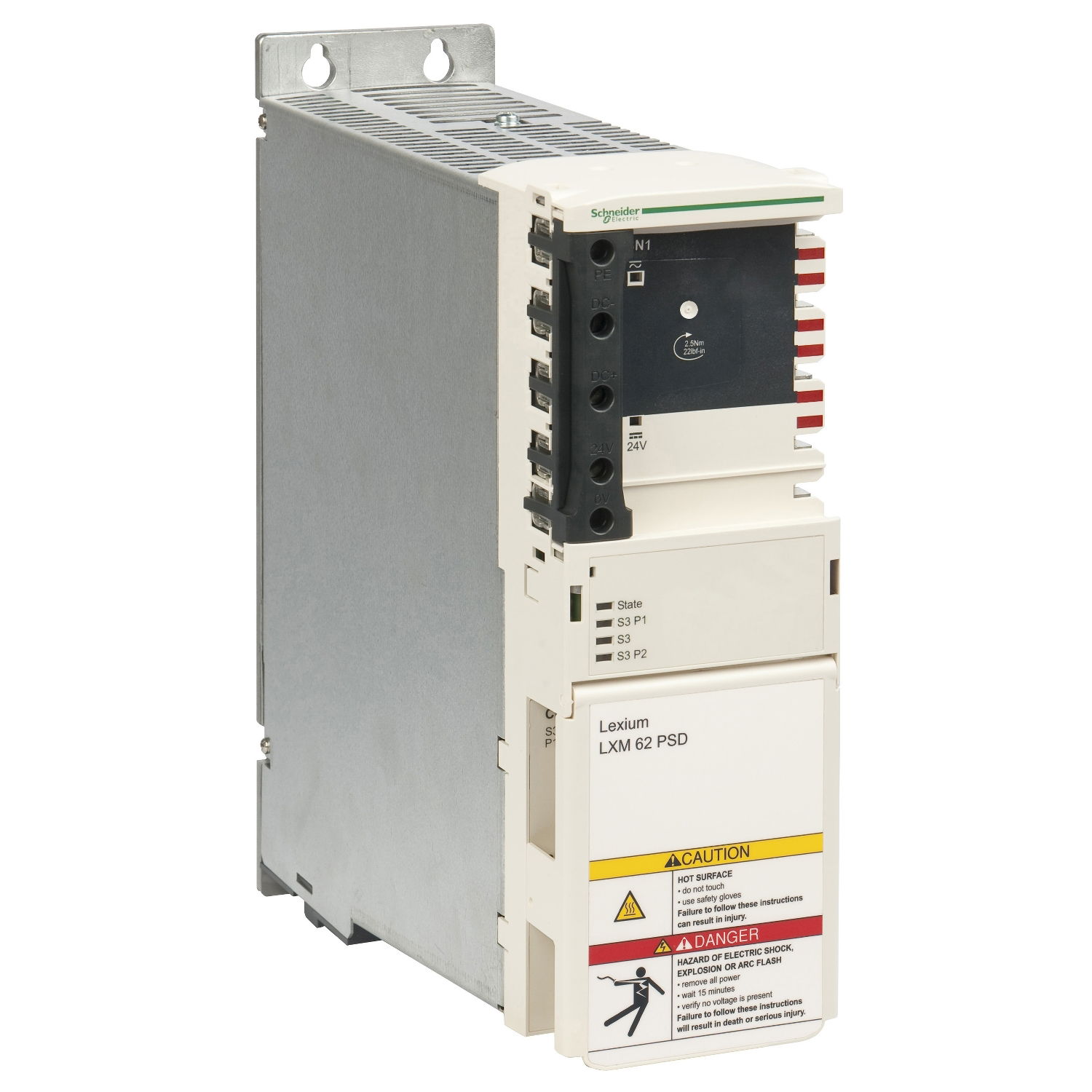

Lexium LXM 62 power supply drive - 42/84 A

Link copied
SKU
EAN
GTIN
MPN

Lexium LXM 62 power supply drive - 42/84 A by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £2,441.59 excl. VAT. Voltimum+ members earn 269 points per unit.

This product is part of the PacDrive 3 range, an offer of power supplies for integrated drives. The power supply module features SERCOS III communication interface. It offers 2 relay outputs for volt-free contacts. It is a power supply module with a rated supply voltage of 400V three phase, 230V single/three phase and a rated supply current of 21A single phase, 42A three phase AC. It is an IP20 rated product. Its dimensions are 89.5mm (width) x 270mm (depth) x 310mm (height). It weighs 6.3kg. It is suitable for use in general machine control, packaging machine automation, material handling applications. This product is certified by CSA and UL. It meets EN/IEC 61800-5-1, EN/IEC 61800-3 and UL 508C standards. Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Eco and Pro/Pro 2 series motion controllers via SERCOS communication. Multiaxis integrated servo drives from 0.31kW to 1.91kW for automation solutions based on PacDrive 3.

Voltimum+ Loyalty Programme Loyalty points: 269

Price: £ 2,441.59 Excl. VAT

Specifications

Depth 270 mm
Width 89.5 mm
Height 310 mm
Stabilized -
Power output -
Built-in height -
Modular version -
Power consumption -
Max. output current 1 -
Max. output current 3 -
Rated supply voltage DC
Degree of protection (IP) IP20
SIL according to IEC 61508 2
Degree of protection (NEMA) -
1st secondary output voltage
3rd secondary output voltage
Rated supply voltage AC 50 Hz
Suitable for safety functions yes
Performance level according to EN ISO 13849-1 Level d

Documents

Declaration of Conformity (Sustainability)

LXM62PD84A11000 REACh Regulation

Open

User guide

Lexium 62, Hardware Guide

Open

Instruction sheet

Lexium 62 Power Supply, Instruction Sheet

Open

Product data sheet

Open

Catalog

Catalog Lexium 62 & Motors - Multi axis servo system and servo motors for PacDrive 3_March 2022

Open

Declaration of Conformity (Sustainability)

LXM62PD84A11000 EU RoHS Directive

Open

Declaration of conformity

Lexium 62 Power Supply, Declaration of Conformity, EU CE, Schneider Electric

Open

Environmental Disclosure

Lexium 62 - Power Supply - Product Environmental Profile

Open
