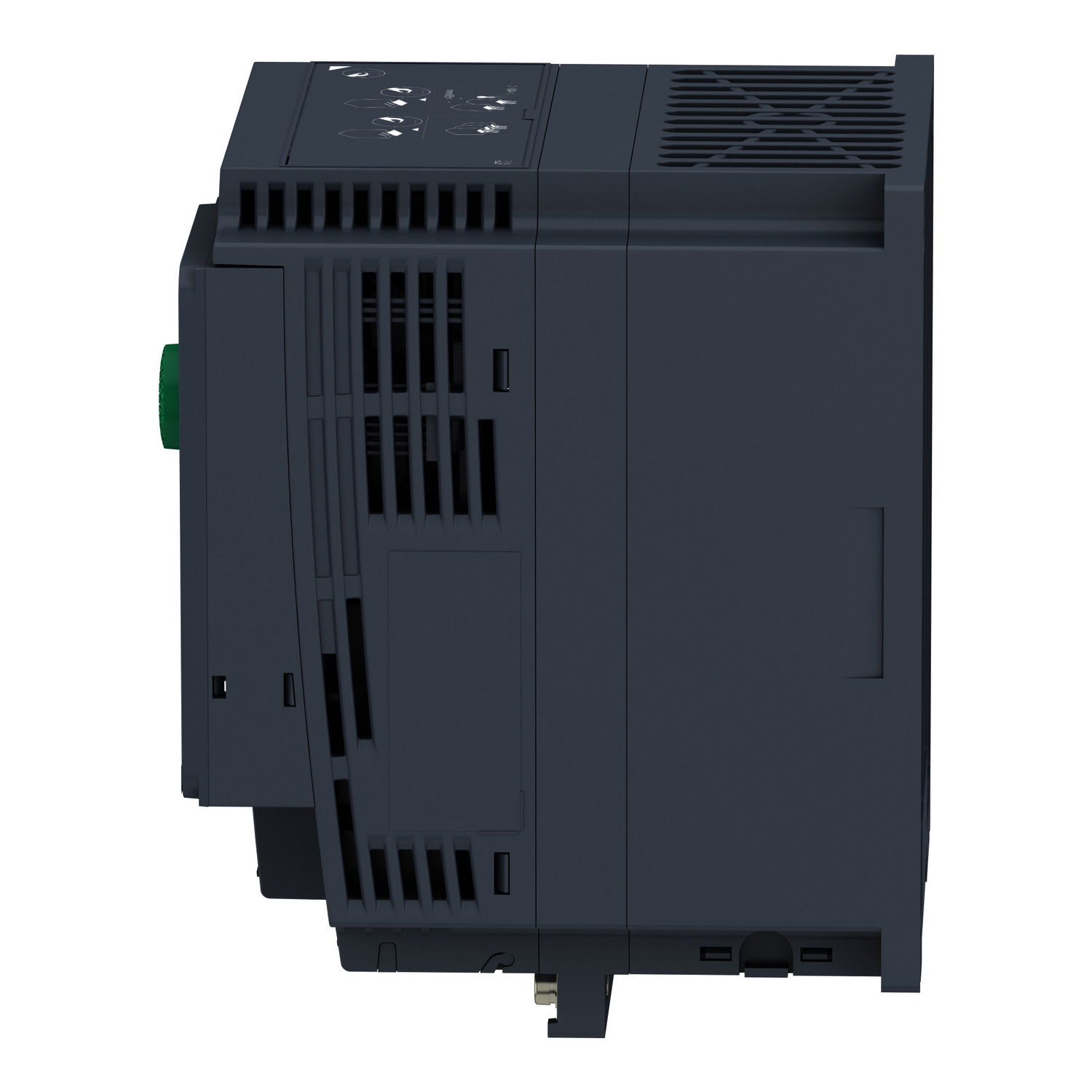

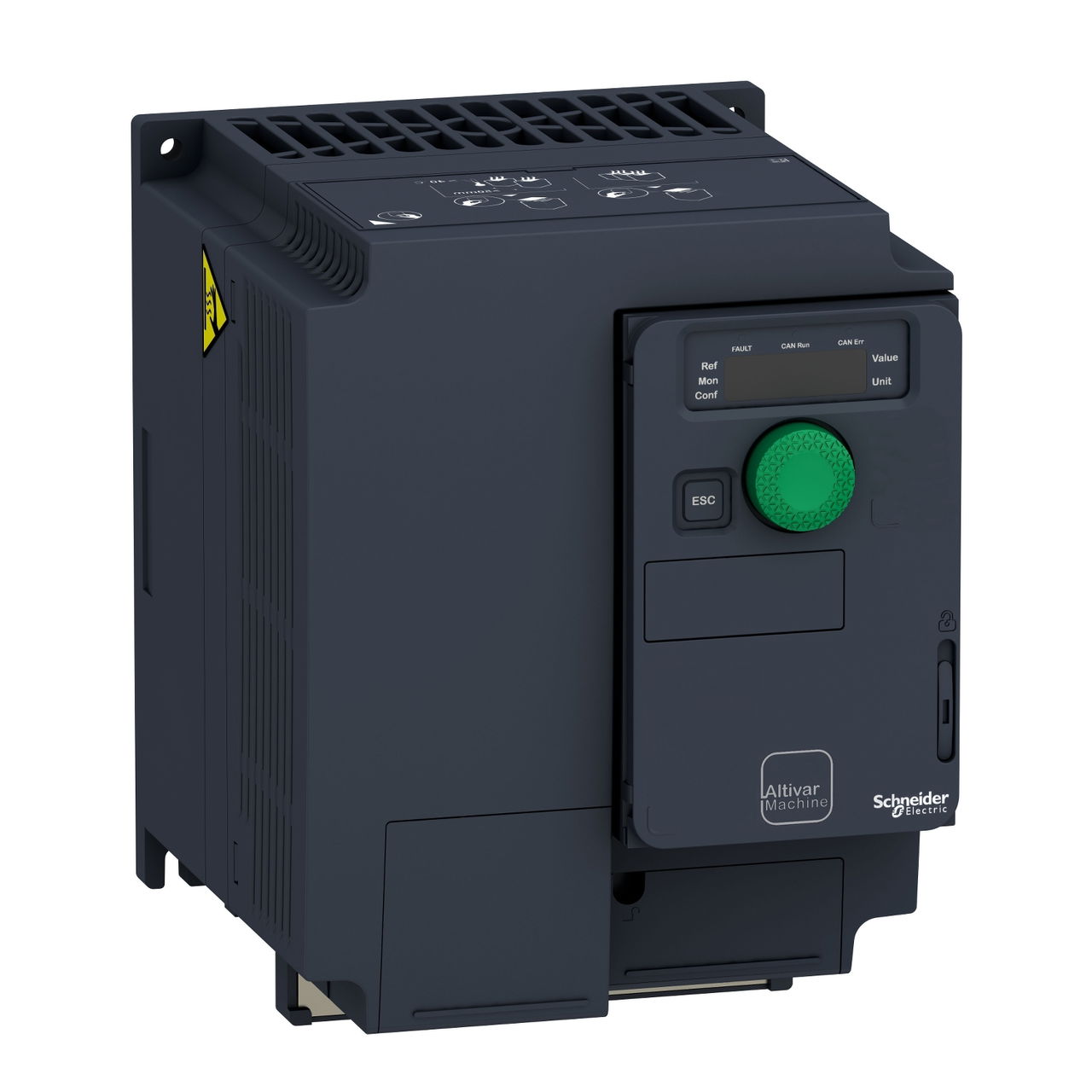

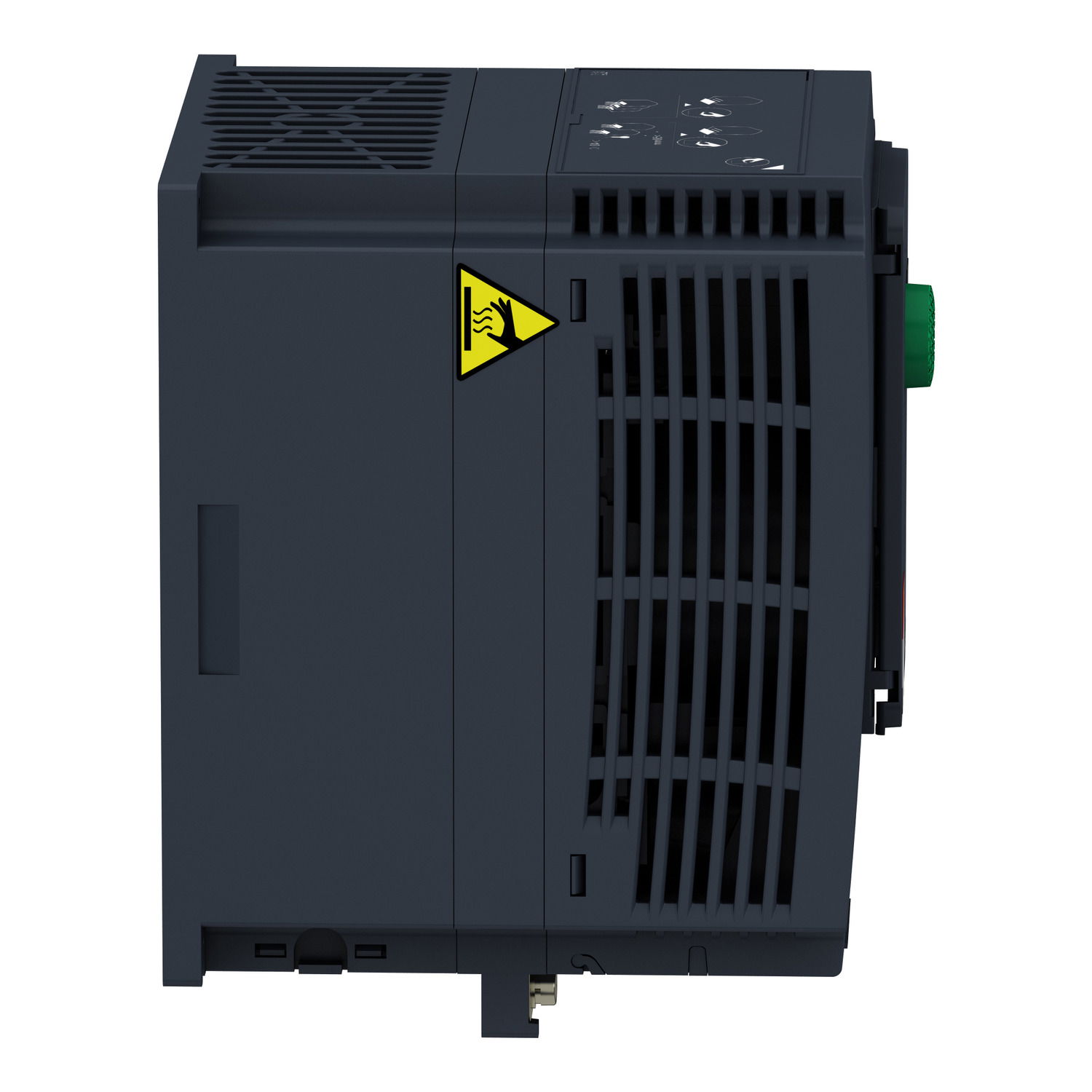

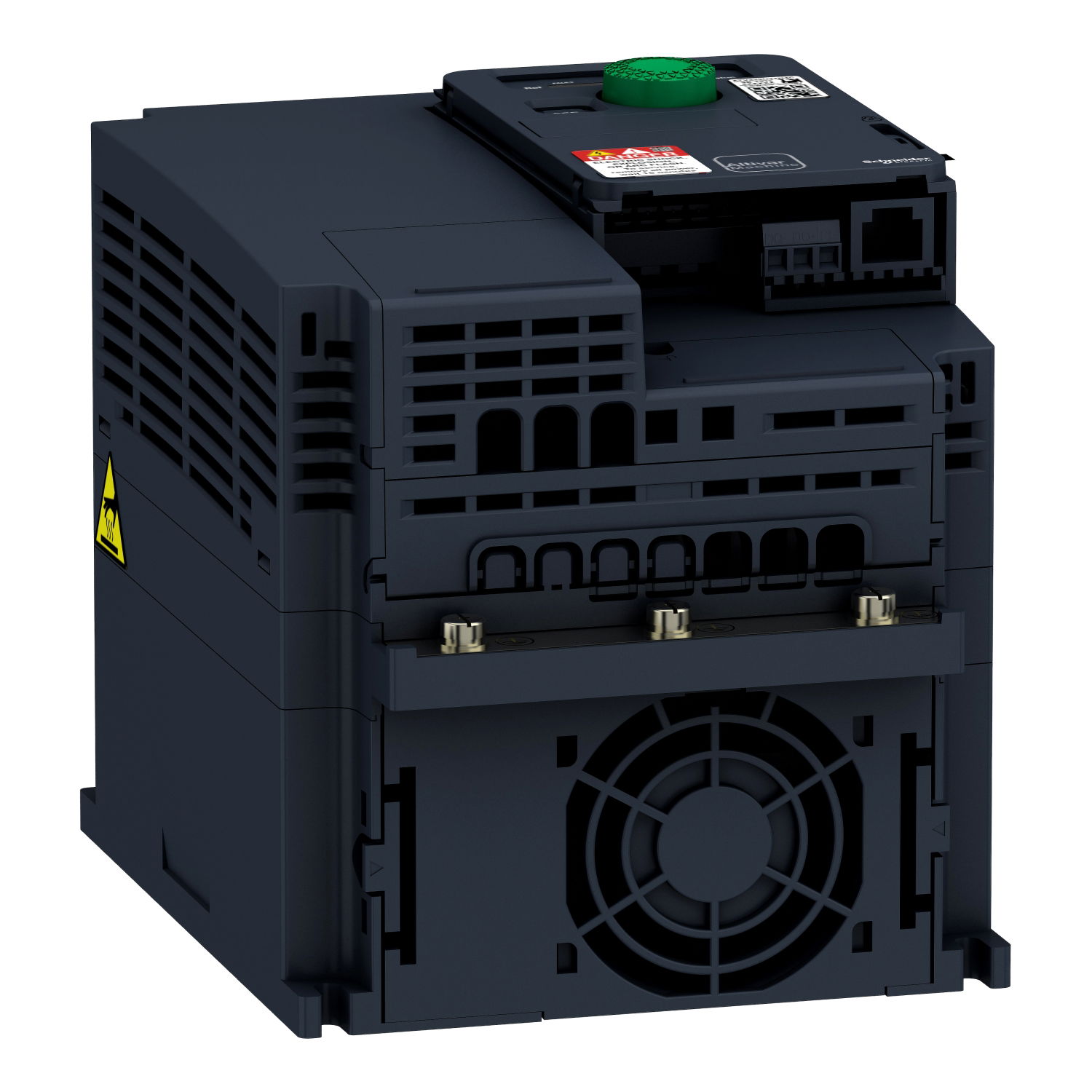

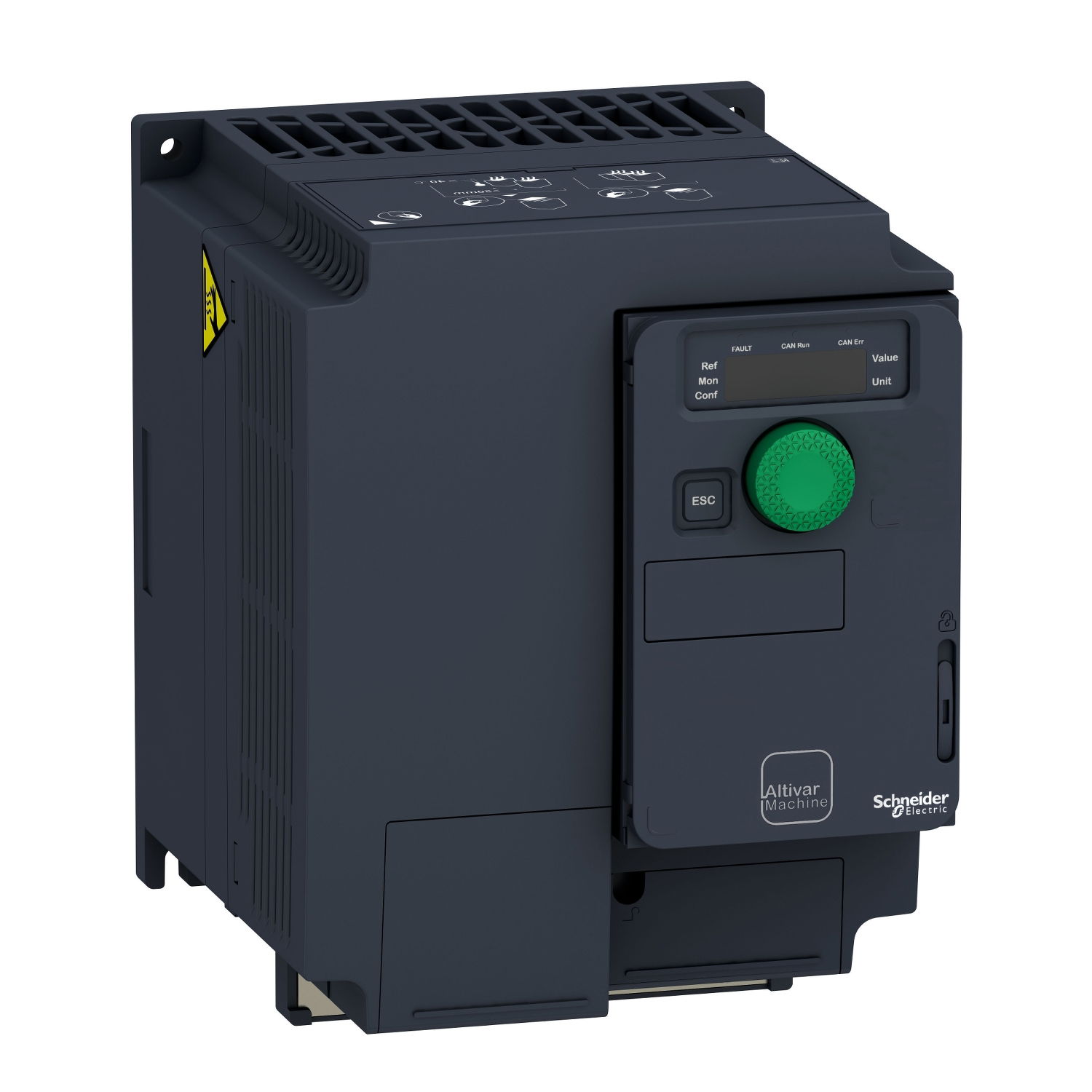

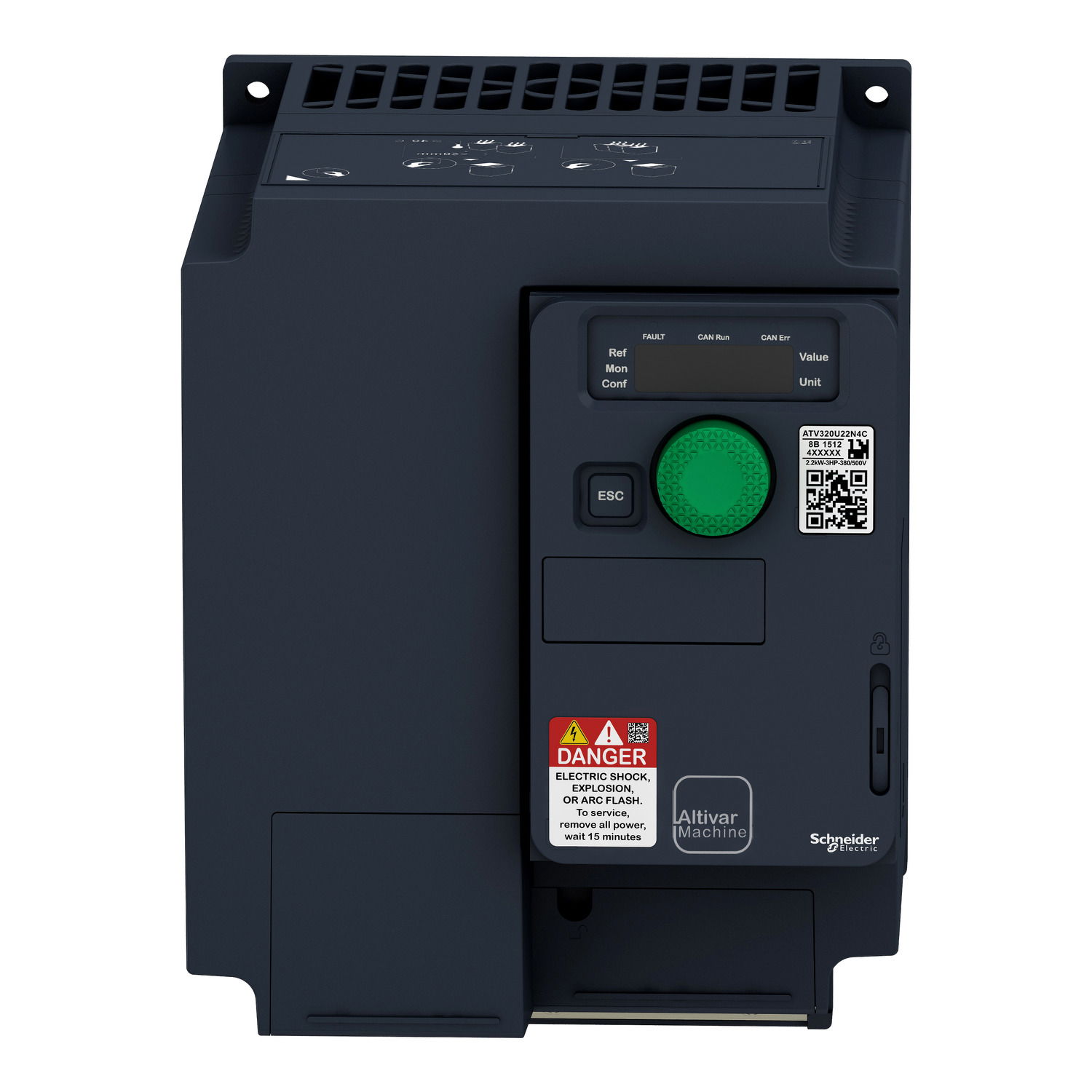

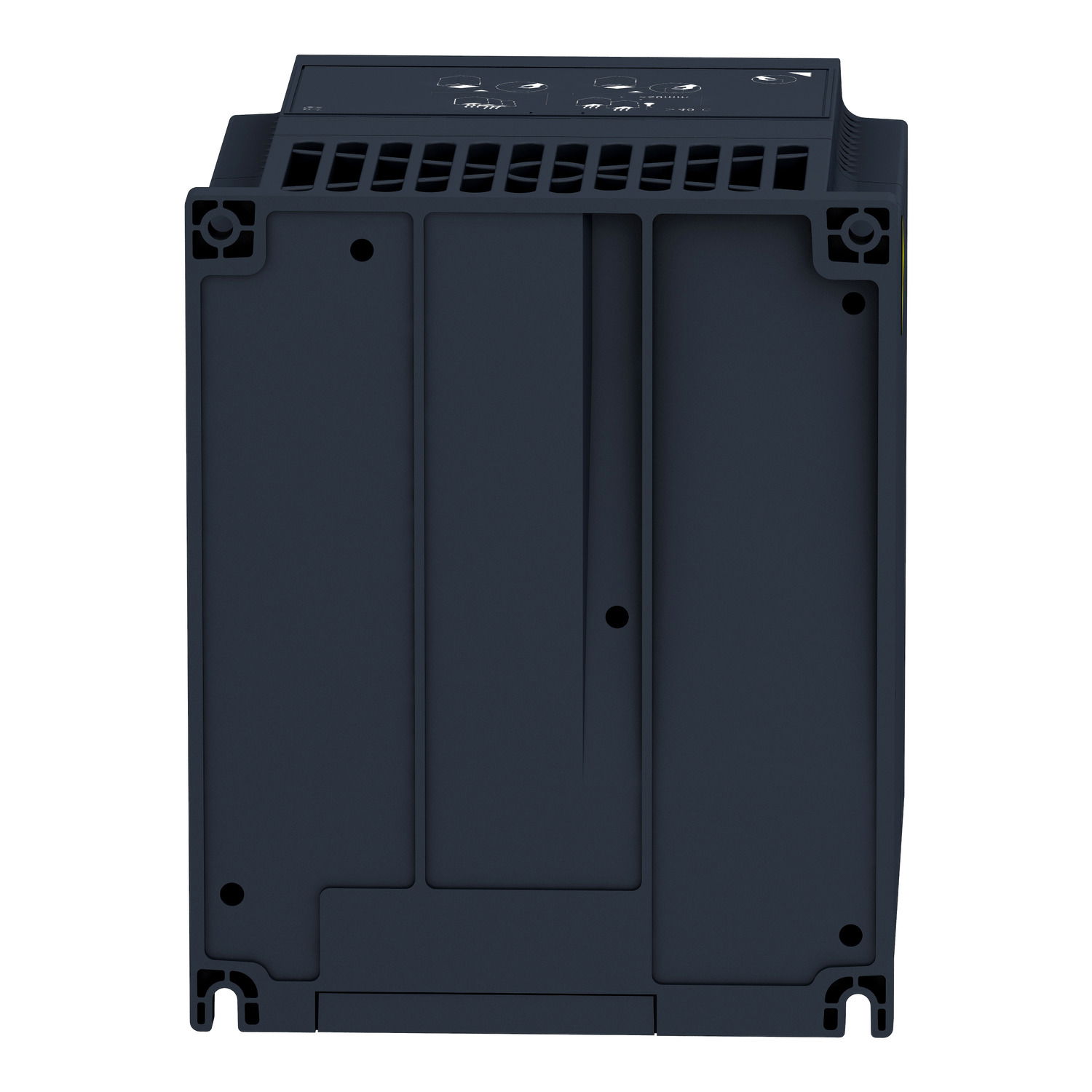

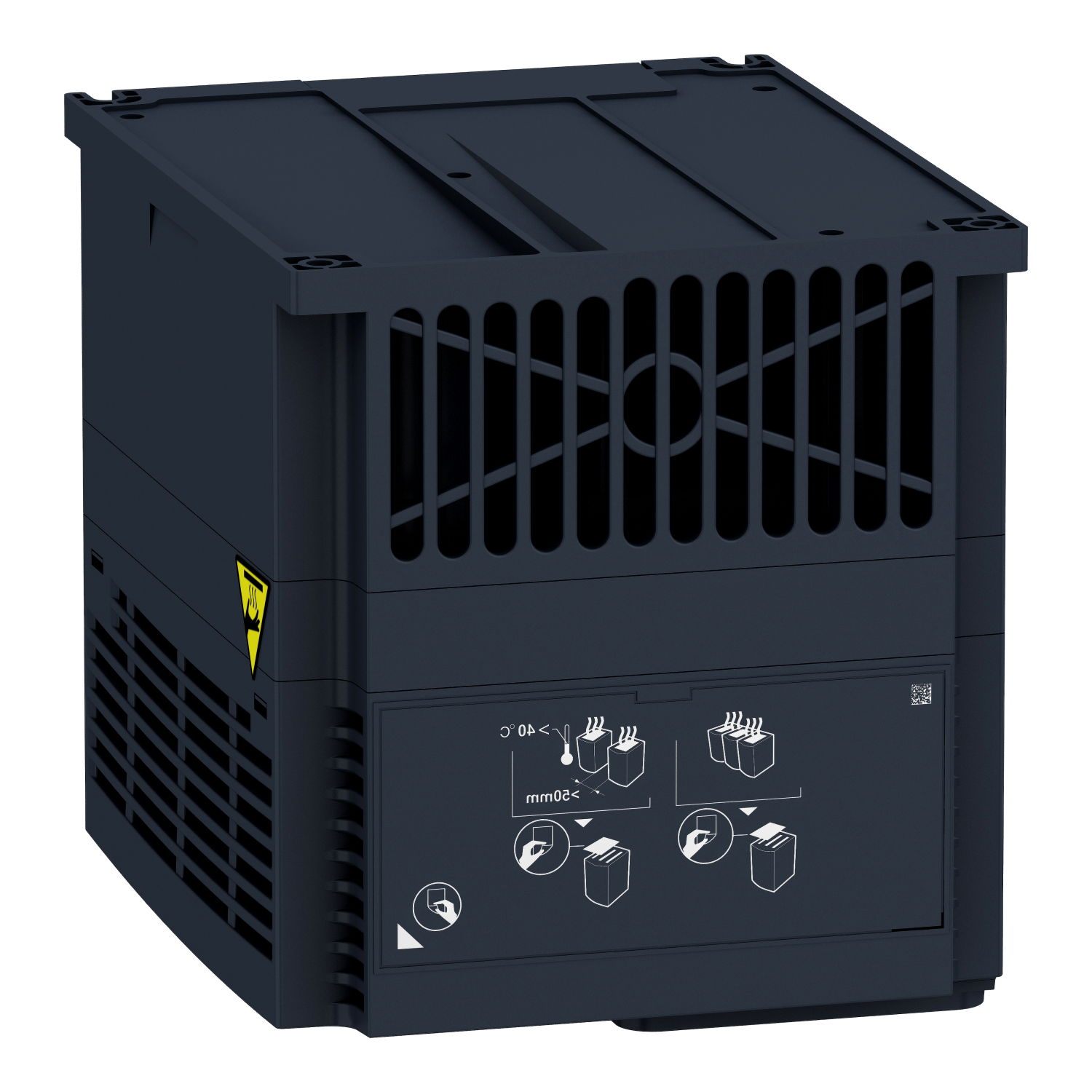

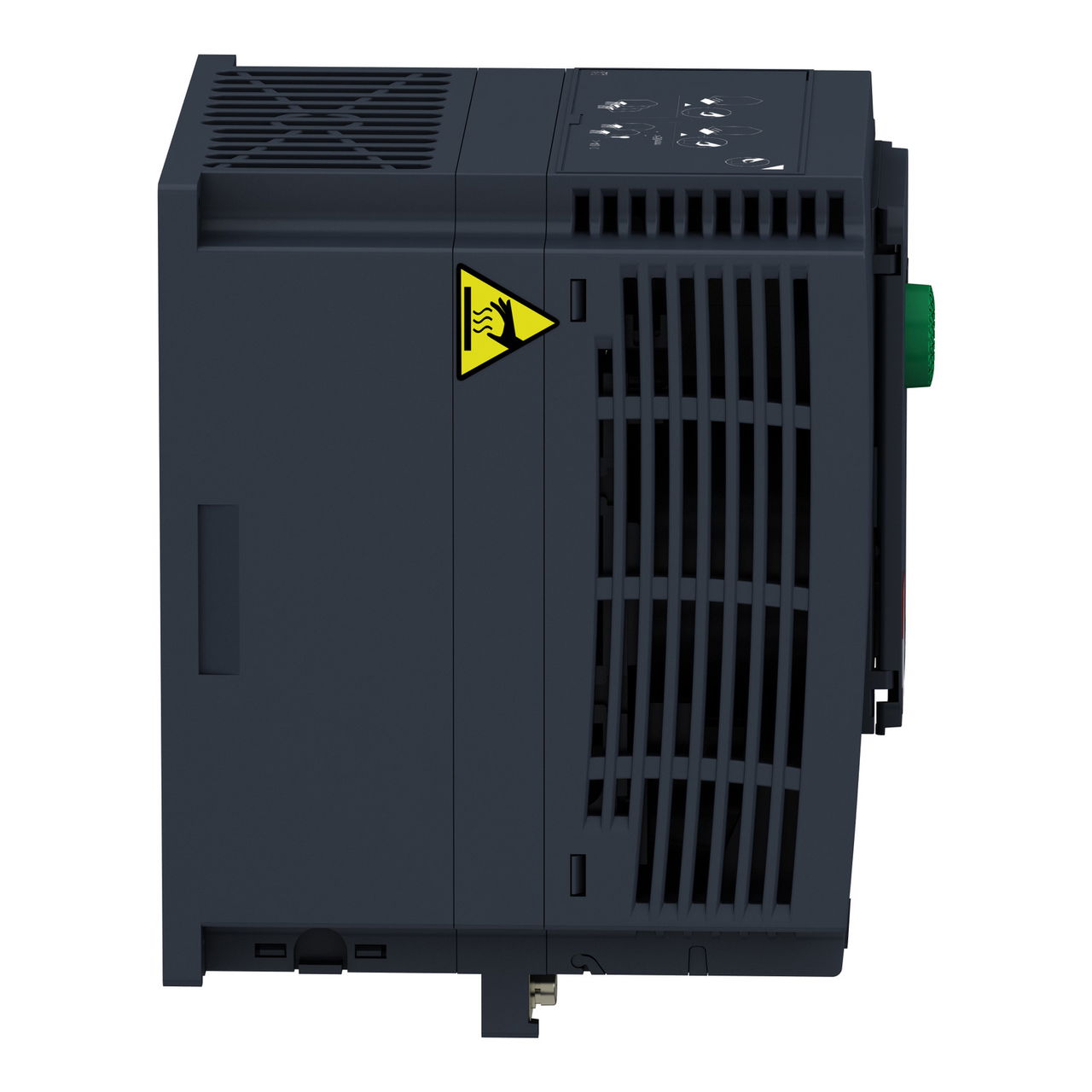

Variable speed drive, ATV320, 4 kW, 380…500 V, 3 phases, compact

Variable speed drive, ATV320, 4 kW, 380…500 V, 3 phases, compact by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at 6 of them. Trade prices range from £731.63 to £977.89 excl. VAT. Voltimum+ members earn 129 points per unit.

This Altivar 320 variable speed drive can feed 3-phase synchronous and asynchronous motors. Its compact form factor allows vertical stacking of drives inside machine frames. It works at a rated power up to 4kW / 5hp and a rated voltage from 380V to 500V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, NOM, EAC and RCM certified. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It complies with environmental protection directives such as RoHS, WEEE, etc.

Product identifiers

SKU: ATV320U40N4C
EAN: 3606480966781
GTIN: 3606480966781
MPN: ATV320U40N4C

Voltimum+ Loyalty Programme Loyalty points: 129

Price range: £ 731.63 - £ 977.89 Excl. VAT

Categories

Switchgear & Circuit Protection Contactors & Motor Starters

ETIM group

Low-voltage industrial components

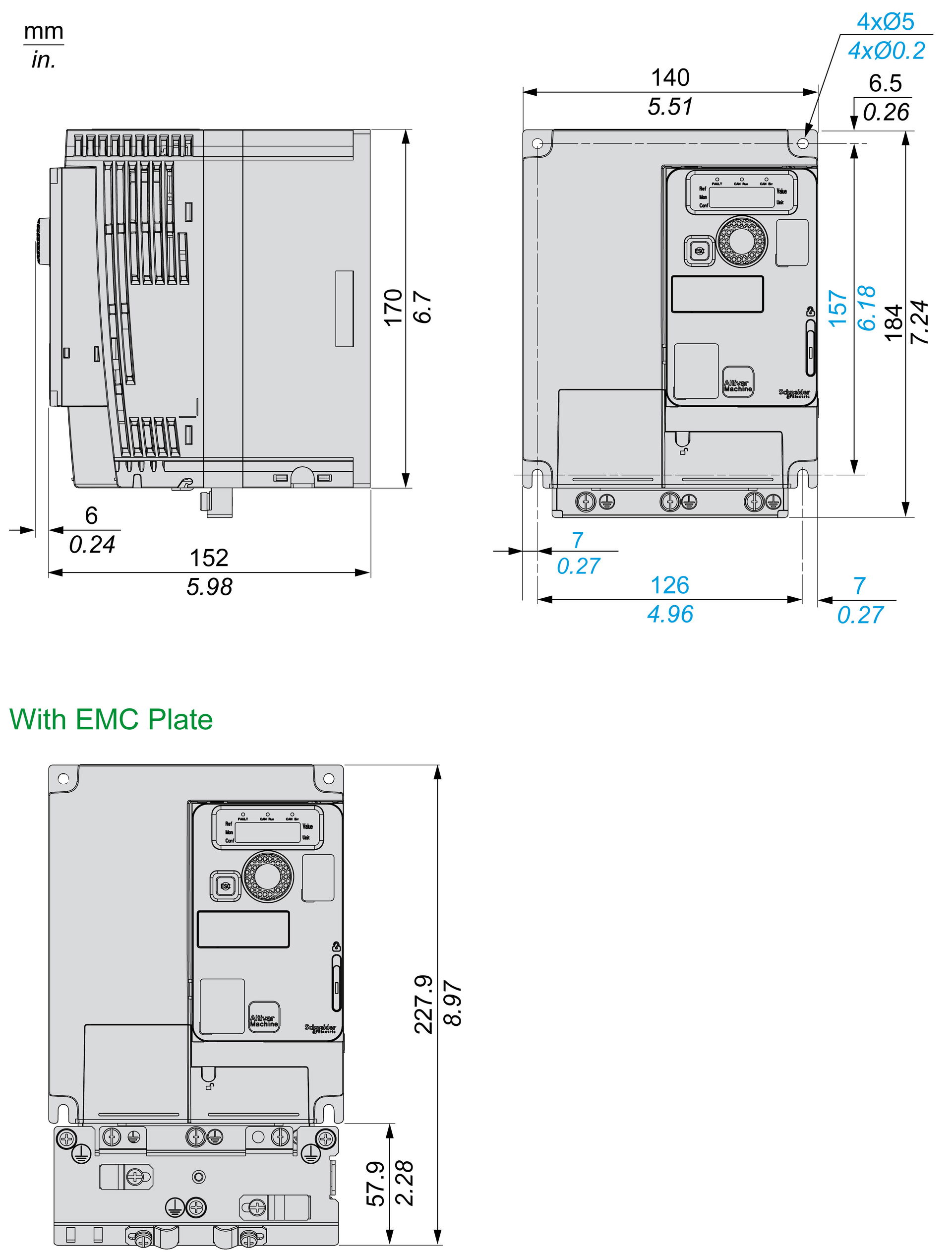

Specifications

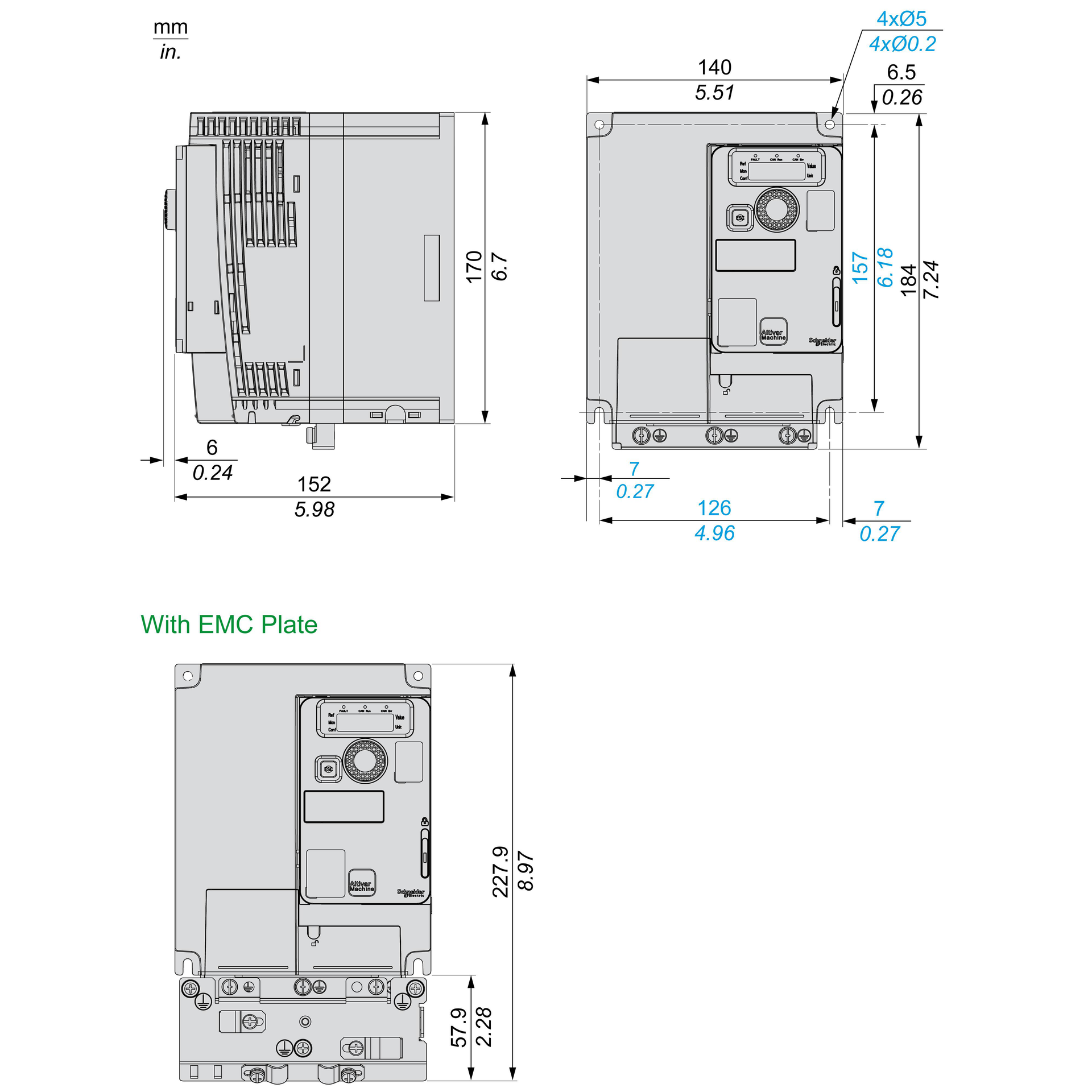

Depth 158 mm
Width 140 mm
Height 184 mm
Mains voltage
Mains frequency 50/60 Hz
Power consumption -
Type of converter U converter
With PC connection yes
With control element yes
Number of phases input 3
Number of phases output 3
Degree of protection (IP) IP20
Number of digital outputs 1
Number of analogue outputs 1
Number of HW-interfaces USB 0
Supporting protocol for CAN yes
Supporting protocol for LON no
Number of HW-interfaces other 1
Integrated breaking resistance no
Number of HW-interfaces RS-422 0
Supporting protocol for BACnet no
Supporting protocol for SERCOS no
Supporting protocol for SUCONET no
Supporting protocol for INTERBUS no
Supporting protocol for DeviceNet yes
Number of HW-interfaces serial TTY 0
Supporting protocol for PROFINET IO yes
Supporting protocol for Data-Highway no
Supporting protocol for INTERBUS-Safety no
Relative symmetric net voltage tolerance 10 %
Supporting protocol for other bus systems yes
Number of HW-interfaces industrial Ethernet 1
Max. output at linear load at rated output voltage 4 kW
Max. output at quadratic load at rated output voltage 4 kW
