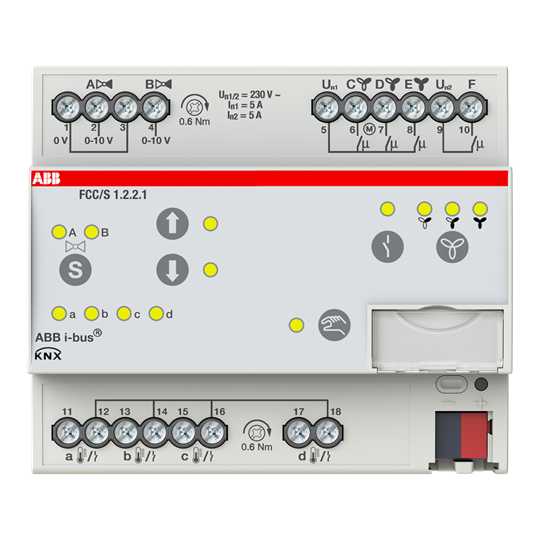

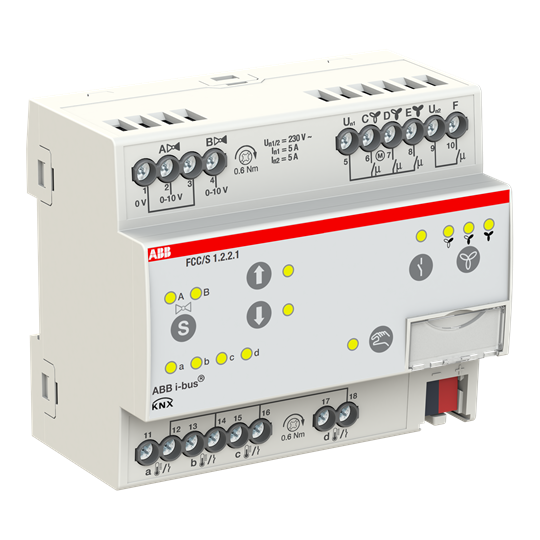

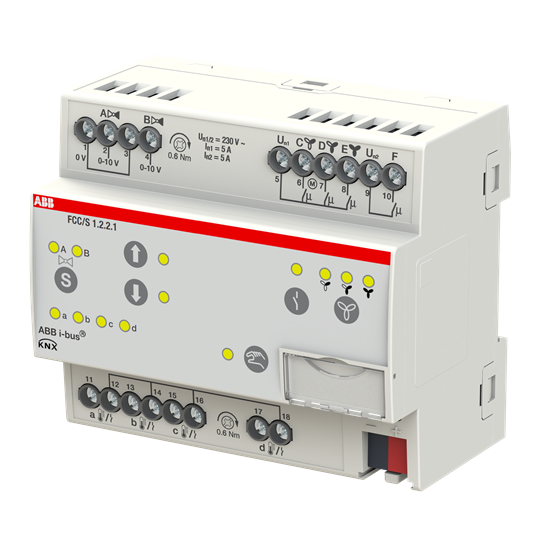

FCC/S1.2.2.1 Fan Coil Controller, 2 x 0-10 V, Manual Operation, 3-stage, MDRC
For the control of fan coil units. Via two analog outputs, two analog valves or one 6-way valve drive can be controlled for heating and cooling. For the fan control the devices features three relay outputs. A relay output switches an additional load of up to 16 A, such as auxiliary heating. Over 4 inputs the room status can be detected and monitored (Use for window contact, dew point sensor, level sensor or temperature sensor). Also it is possible to connect one analog room control unit (SAR/A or SAF/A) to the inputs of the device. The device has an integrated room temperature controller for the control of the room temperature, which can be used directly to control the outputs of the device. The FCC/S 1.2.2.1 features an easy to use manual operation. The device supports the ABB i-bus Tool for advanced diagnosis and improved commissioning.
Product identifiers
SKU: 2CDG110213R0011
EAN: 4016779011457
GTIN: 4016779011457
MPN: FCC/S1.2.2.1
Loyalty points:
156
Price: £ 0.00 Excl. VAT
Categories
Features
|
EFI12278
|
-
|
|
Manual switch
|
yes
|
|
Bus system KNX
|
yes
|
|
Bus system LON
|
no
|
|
Mounting method
|
DRA (DIN-rail adapter)
|
|
Number of outputs
|
5
|
|
Other bus systems
|
None
|
|
Switching voltage
|
|
|
Bus system Powernet
|
no
|
|
Max. output current
|
-
|
|
With bus connection
|
no
|
|
Bus module detachable
|
no
|
|
Number of digital inputs
|
4
|
|
Degree of protection (IP)
|
IP20
|
|
Valve protection function
|
yes
|
|
Bus system radio frequency
|
no
|
|
Correcting variable switching
|
yes
|
|
Radio frequency bidirectional
|
no
|
|
Correcting variable consistent
|
yes
|
|
Bus system KNX-RF (Radio Frequency)
|
no
|
|
Width in number of modular spacings
|
6.0
|
|
Max. switching current (resistive load)
|
-
|
|
Min. depth of built-in installation box
|
-
|
