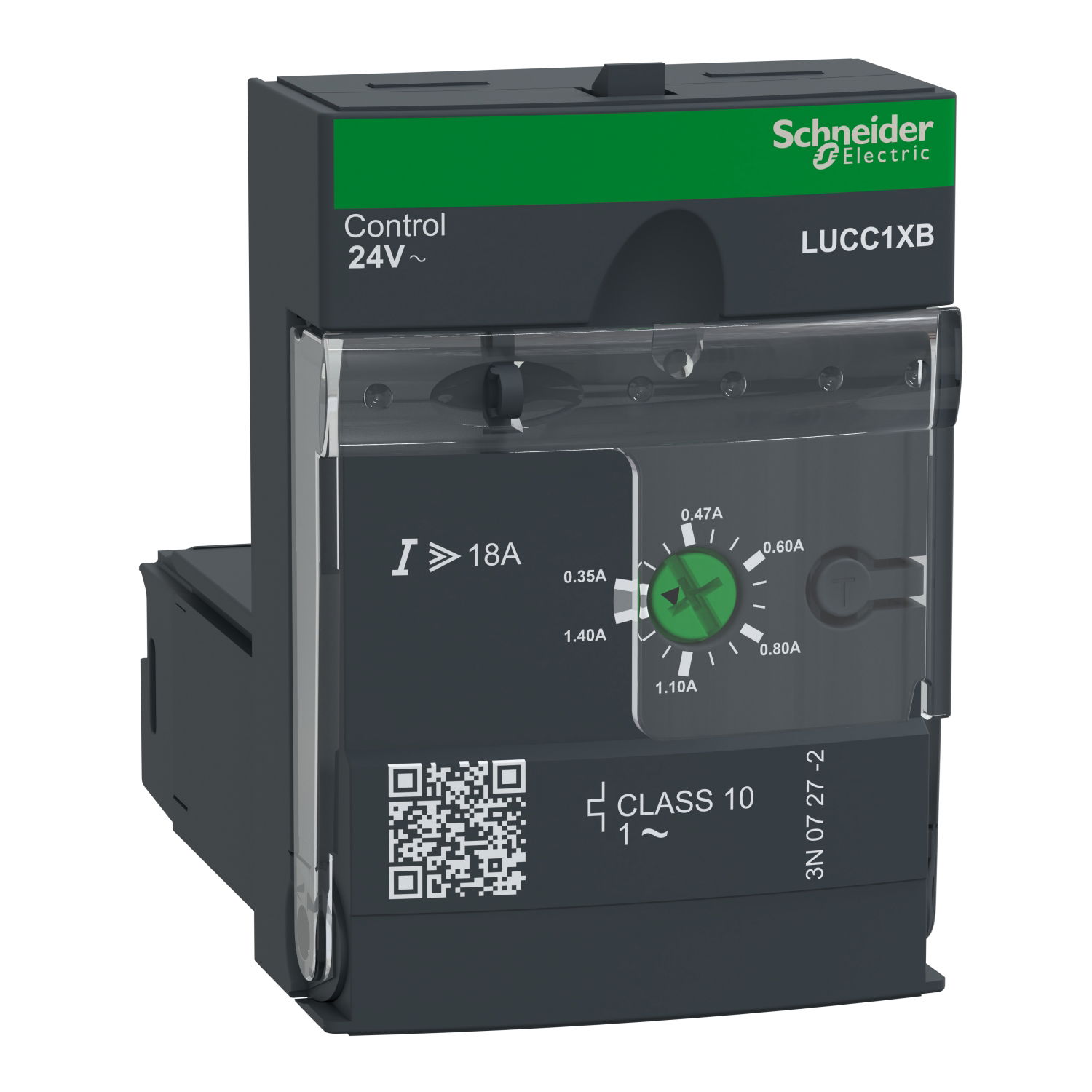

Advanced control unit, TeSys U, 0.35-1.4A, 1P motors, protection & diagnostic, class 10, coil 24V AC

Name: Advanced control unit, TeSys U, 0.35-1.4A, 1P motors, protection & diagnostic, class 10, coil 24V AC
Brand: Schneider Electric
SKU: LUCC1XB
Availability: InStock

Advanced control unit, TeSys U, 0.35-1.4A, 1P motors, protection & diagnostic, class 10, coil 24V AC by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Farnell. Trade prices range from £98.80 to £99.79 excl. VAT. Voltimum+ members earn 12 points per unit.

TeSys U control and diagnostic unit to be inserted in advanced power bases LUB120, LUB320, LUB380 to form a TeSys U starter controller, for 1-phase motor applications up to 0.09kW@400V. It provides full protection to motors with a rated current Ir 0.35-1.4A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). It provides a thermal overload alarm to be used locally using a LUFDA module or remotely using a LULC module, and a test push button for overload simulation. To be used with a 24V AC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),

Product identifiers

SKU: LUCC1XB

EAN: 3389110364545

GTIN: 3389110364545

MPN: LUCC1XB

Loyalty points: 12

Price range: £ 98.80 - £ 99.79 Excl. VAT

Specifications

Depth	60 mm
Width	45 mm
Height	66 mm
Number of poles	3
Supply voltage DC
Operating voltage DC
Rated switch current	-
Supply voltage AC 50 Hz
Supply voltage AC 60 Hz
Type of motor protection	Electronic release
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Rated permanent current Iu	1.4 A
Voltage type (supply voltage)	AC
External power supply required	yes
Short-circuit release function	Undelayed
Overload release current setting
Voltage type (operating voltage)	AC
With ground fault protection function	yes
Current setting delayed short-circuit release
Current setting undelayed short-circuit release
Number of auxiliary contacts as change-over contact	-
Number of auxiliary contacts as normally open contact	-
Number of auxiliary contacts as normally closed contact	-
