ABS box IP66 IK07 RAL7035 Int.H175W105D100 Ext.H192W121D105 Opaque cover H40
1 / 3
Popularity
Top 30%
More about Popularity
Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales.
Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.
ABS box IP66 IK07 RAL7035 Int.H175W105D100 Ext.H192W121D105 Opaque cover H40
ABS box IP66 IK07 RAL7035 Int.H175W105D100 Ext.H192W121D105 Opaque cover H40 by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 4 of them. Trade prices range from £12.67 to £20.32 excl. VAT. Voltimum+ members earn 2 points per unit.

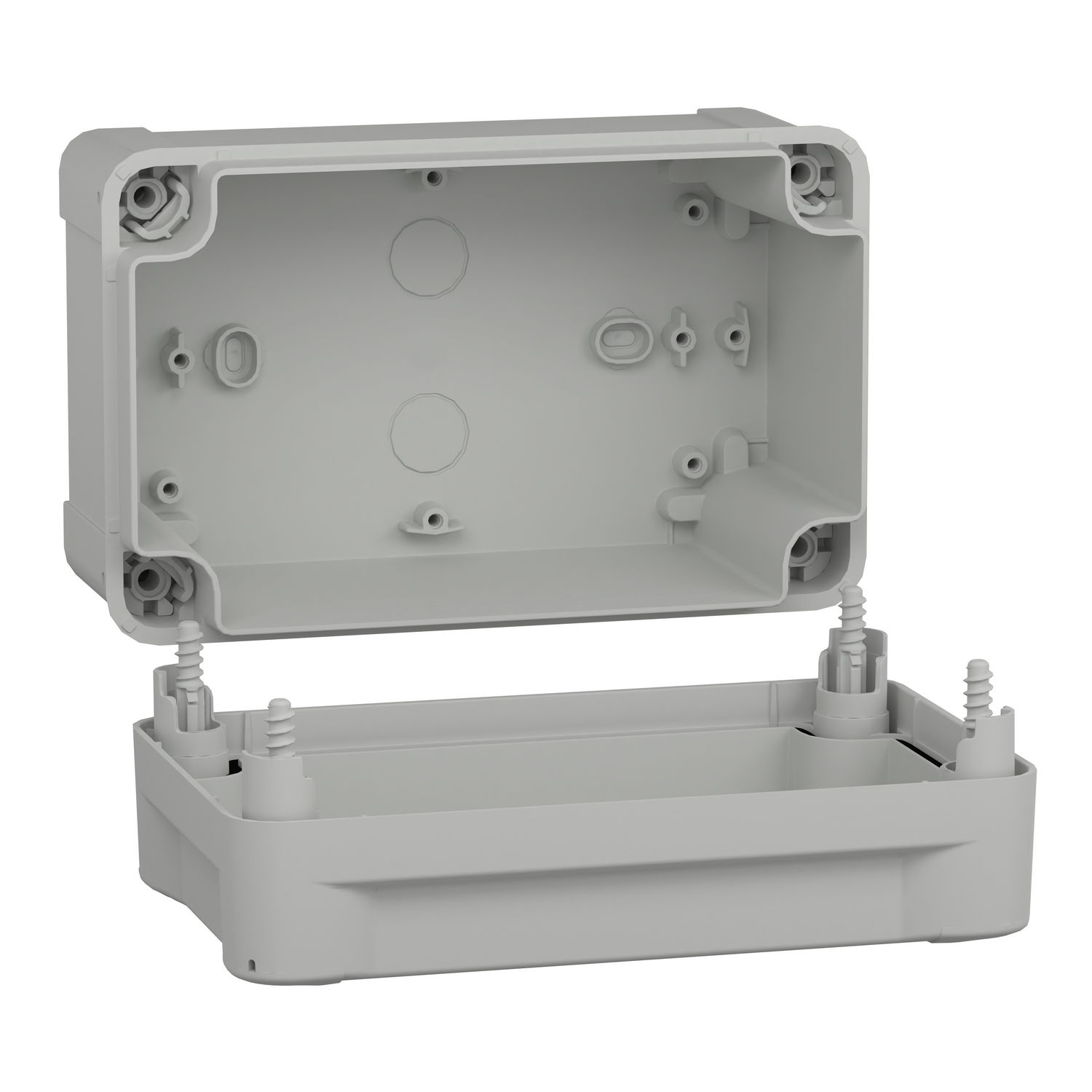

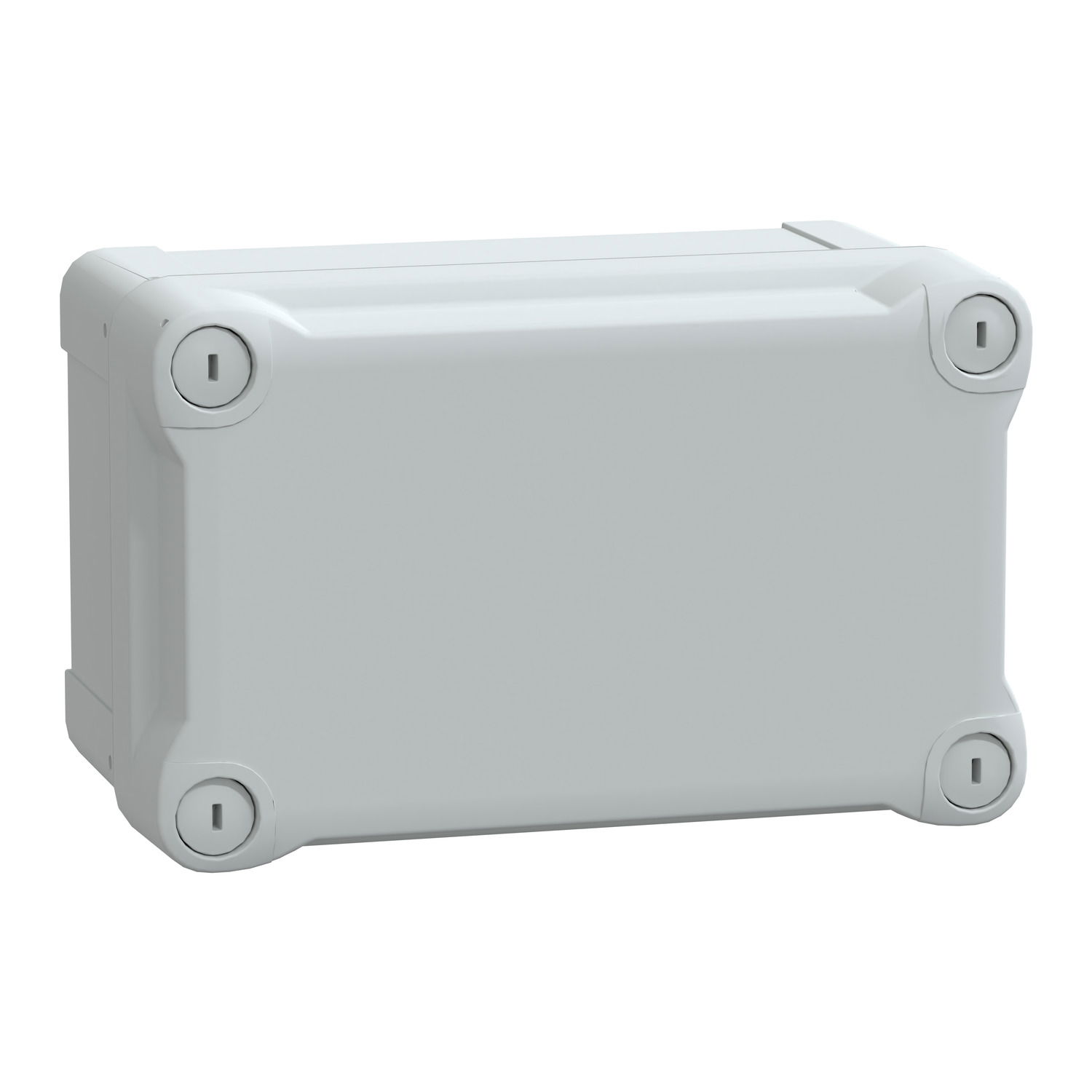

PanelSeT TBS industrial ABS box with opaque cover H40. Int is 175 x 105 x 100 mm. Ext is 192 x 121 x 105 mm. Wall mounted enclosure. High plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
Product identifiers
SKU: NSYTBS191210H
EAN: 3606480165290
GTIN: 3606480165290
MPN: NSYTBS191210H
Loyalty points:
2
Price range: £ 12.67 - £ 20.32 Excl. VAT
Categories
ETIM group
Specifications
| Depth | 105 mm |
| Width | 121 mm |
| Colour | Grey |
| Height | 192 mm |
| With lock | no |
| RAL-number | 7035 |
| Cover model | Closed |
| Inner depth | 100 mm |
