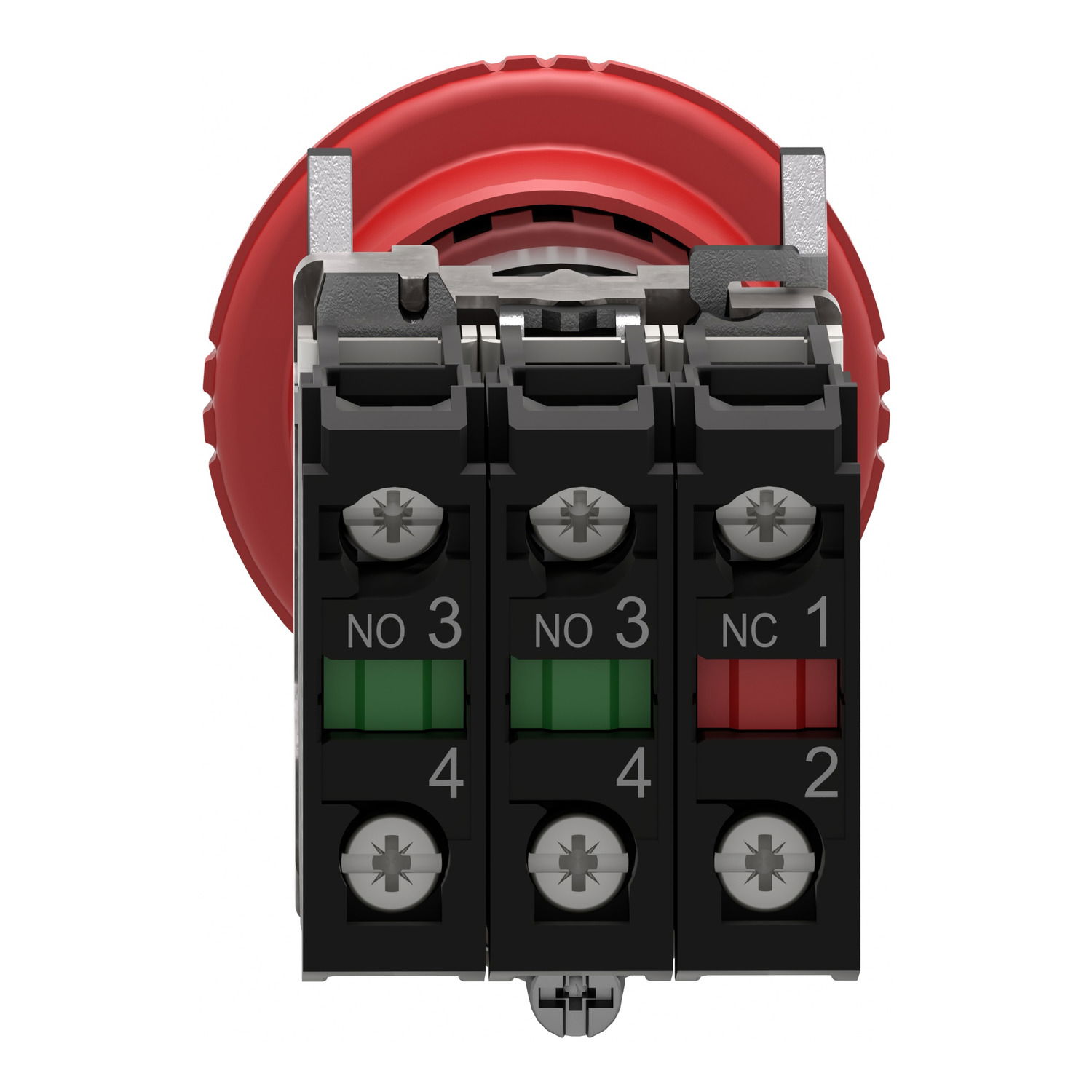

Red Ø40 Emergency stop, switching off Ø22 latching turn release 2NC+1NO – Image 2 of 13

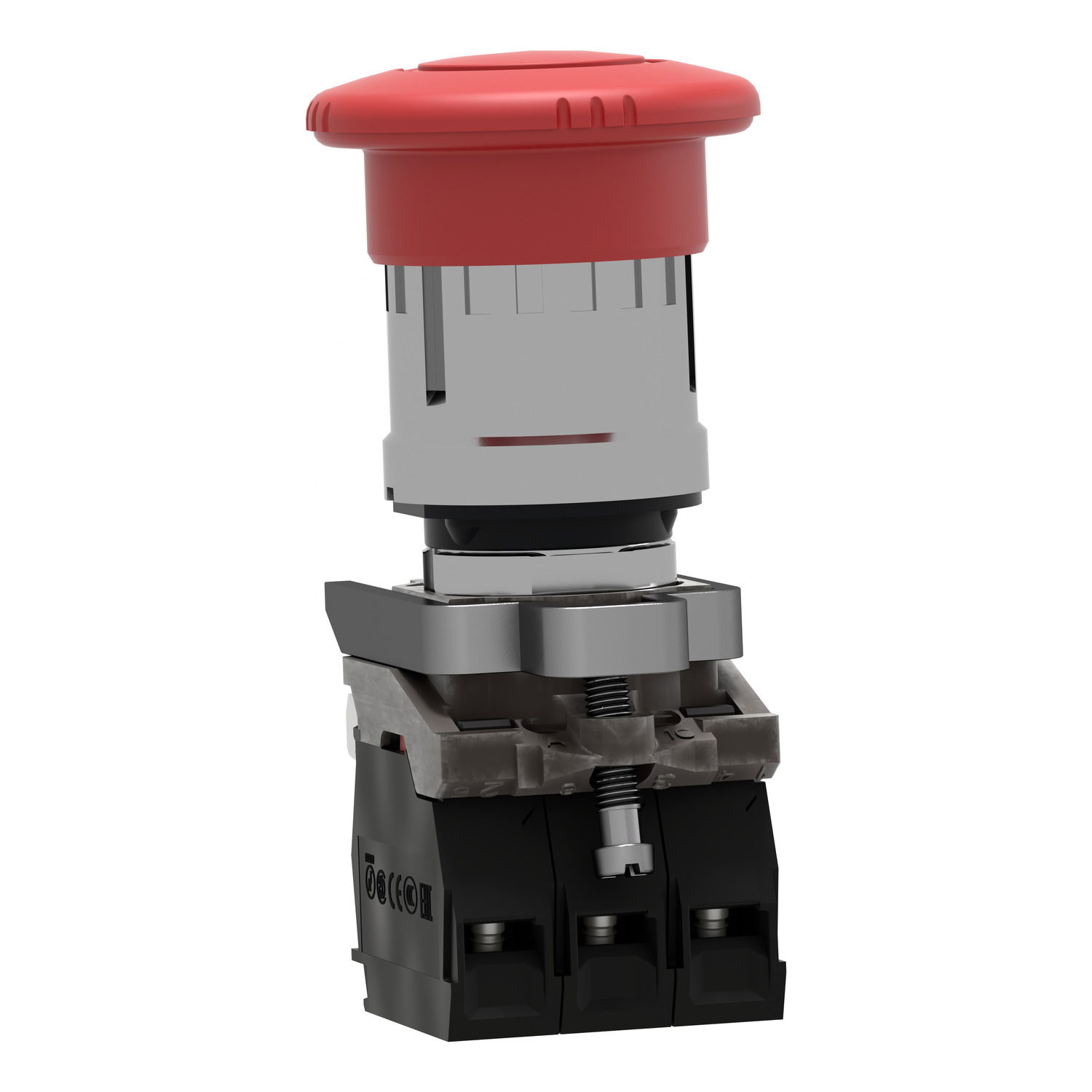

Red Ø40 Emergency stop, switching off Ø22 latching turn release 2NC+1NO – Image 3 of 13

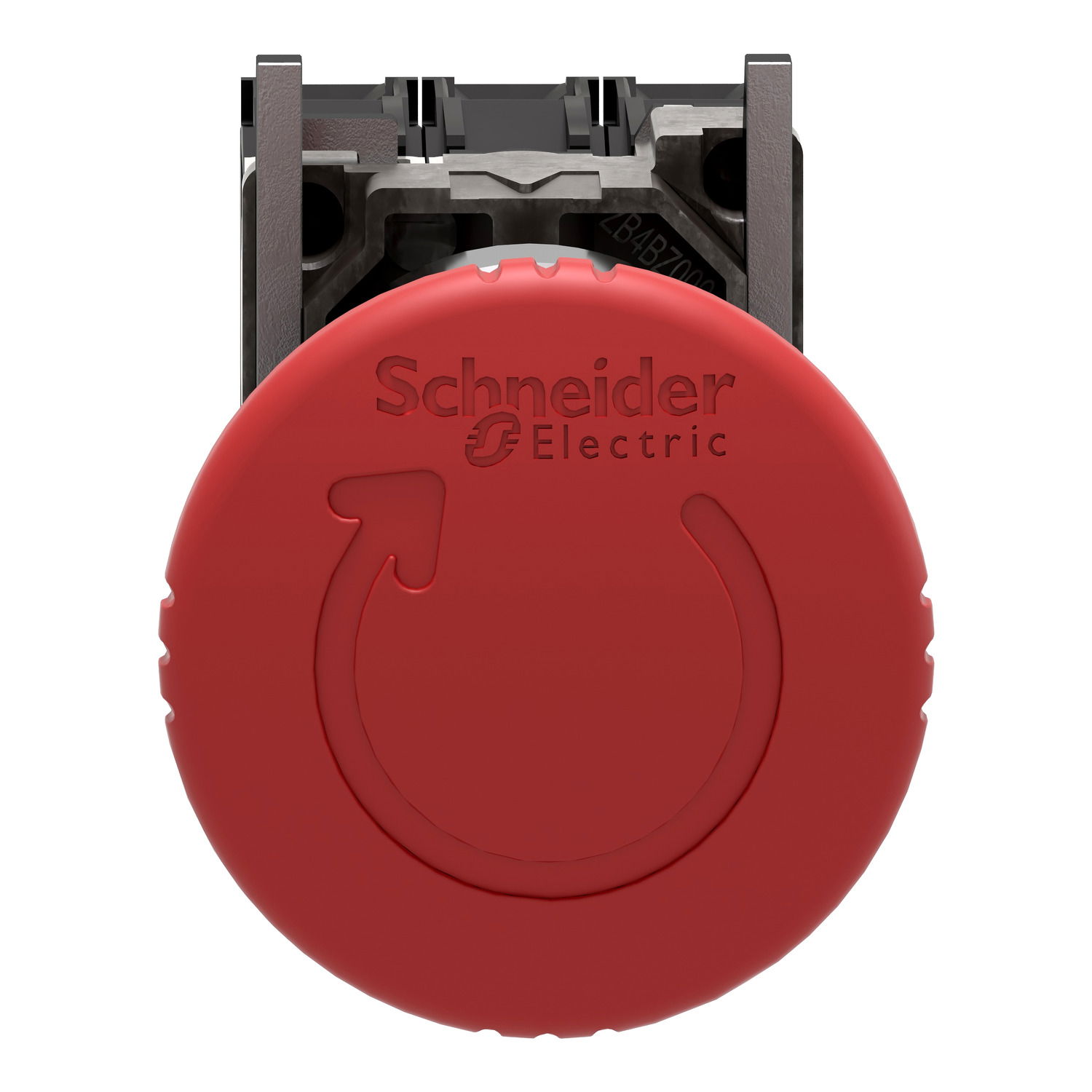

Red Ø40 Emergency stop, switching off Ø22 latching turn release 2NC+1NO – Image 4 of 13

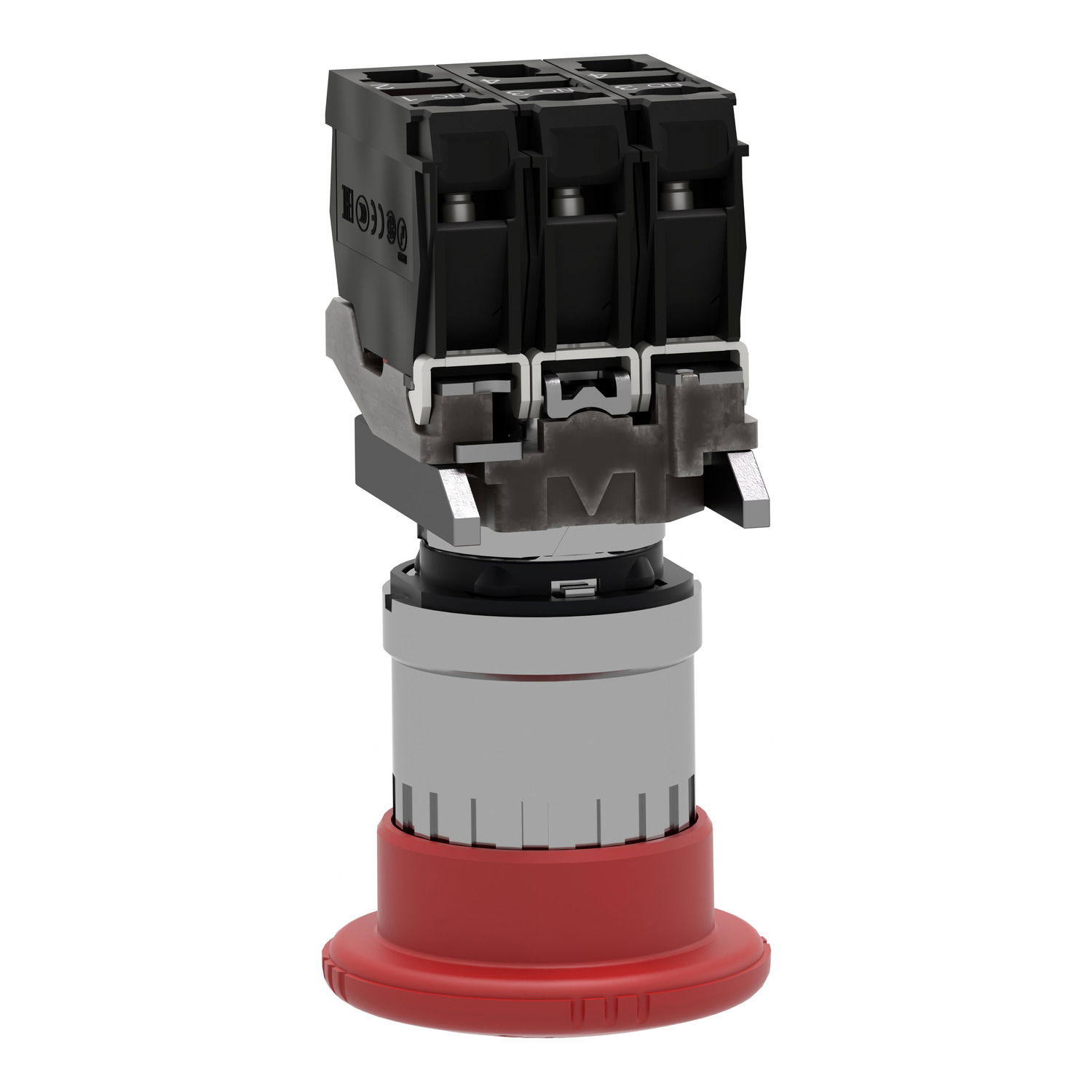

Red Ø40 Emergency stop, switching off Ø22 latching turn release 2NC+1NO – Image 5 of 13

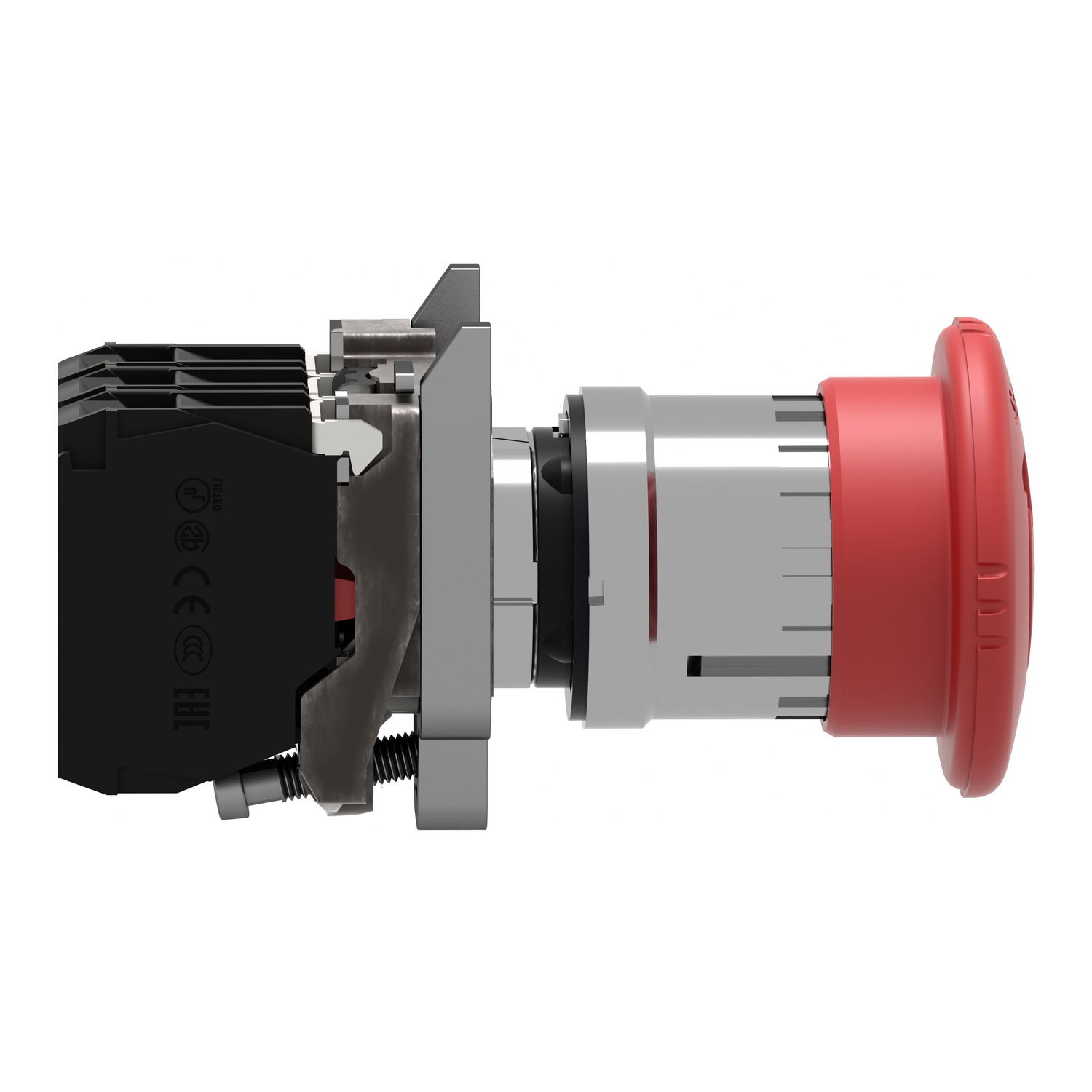

Red Ø40 Emergency stop, switching off Ø22 latching turn release 2NC+1NO – Image 6 of 13

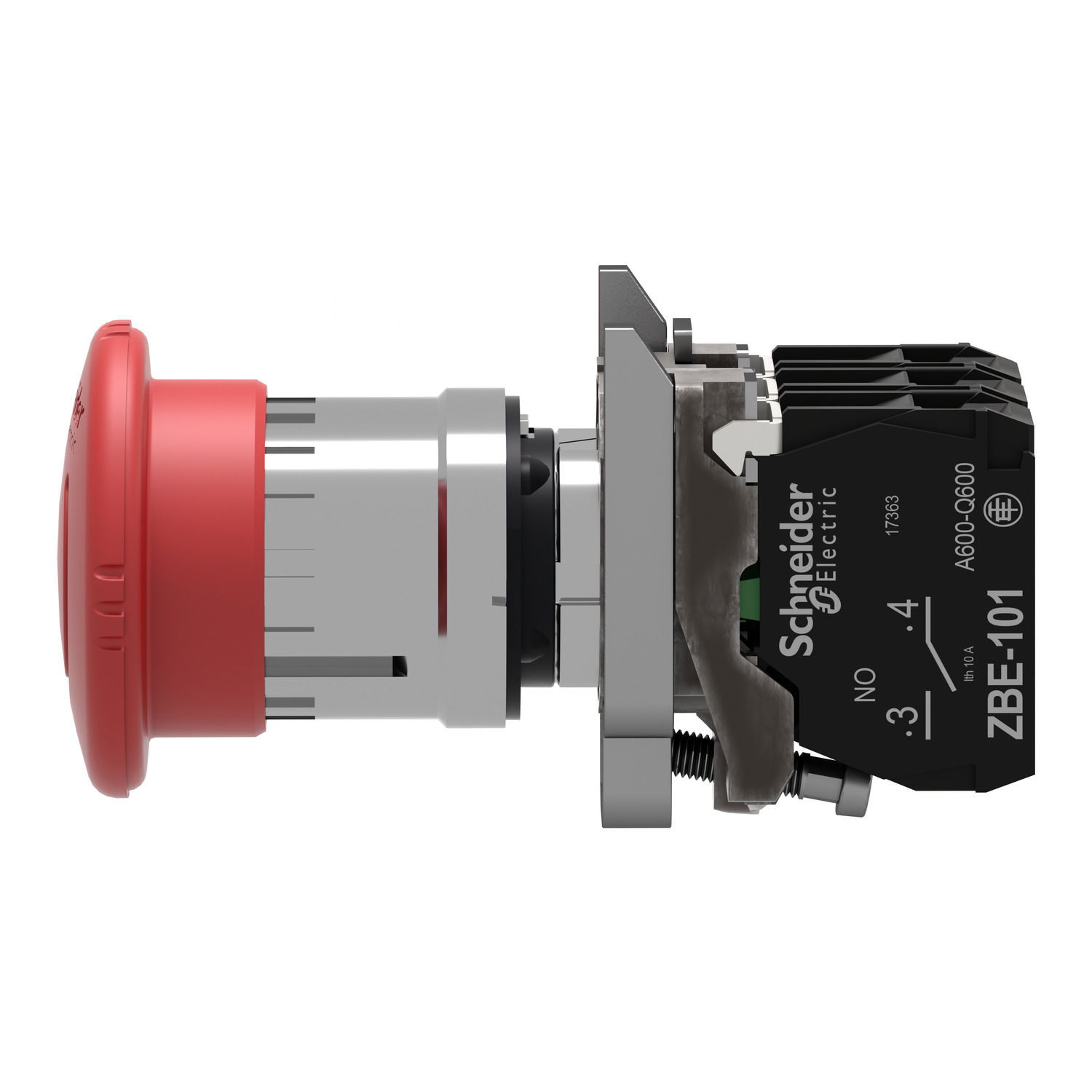

Red Ø40 Emergency stop, switching off Ø22 latching turn release 2NC+1NO – Image 7 of 13

Red Ø40 Emergency stop, switching off Ø22 latching turn release 2NC+1NO – Image 8 of 13

Red Ø40 Emergency stop, switching off Ø22 latching turn release 2NC+1NO – Image 9 of 13

Red Ø40 Emergency stop, switching off Ø22 latching turn release 2NC+1NO – Image 10 of 13

Red Ø40 Emergency stop, switching off Ø22 latching turn release 2NC+1NO – Image 11 of 13

Red Ø40 Emergency stop, switching off Ø22 latching turn release 2NC+1NO – Image 12 of 13

Red Ø40 Emergency stop, switching off Ø22 latching turn release 2NC+1NO – Image 13 of 13

1 / 13

Popularity Top 30%

Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

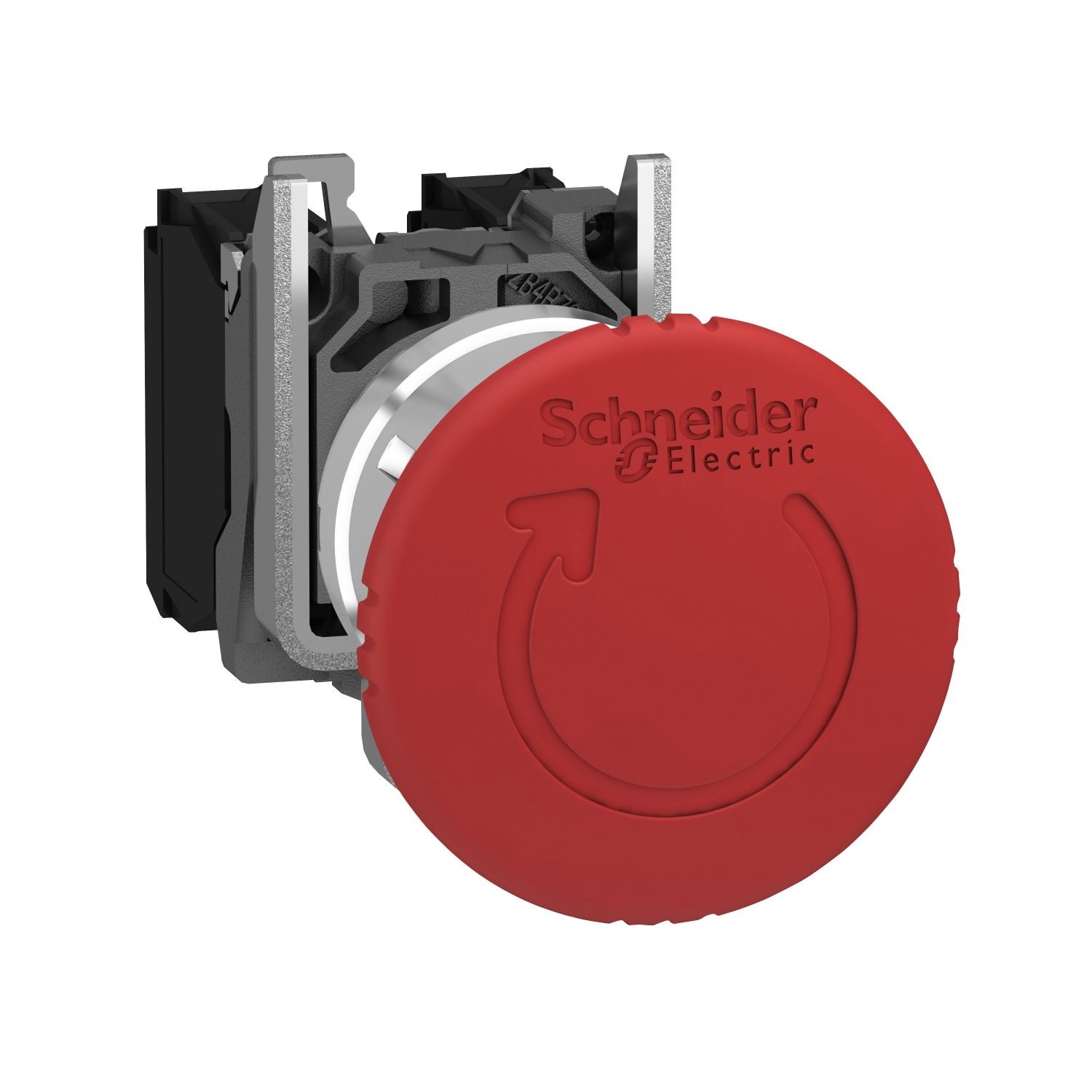

Red Ø40 Emergency stop, switching off Ø22 latching turn release 2NC+1NO

Link copied

SKU
EAN
GTIN
MPN

Red Ø40 Emergency stop, switching off Ø22 latching turn release 2NC+1NO by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 5 of them. Trade prices range from £25.77 to £44.70 excl. VAT. Voltimum+ members earn 5 points per unit.

This Harmony XB4 emergency stop / shutdown 40mm mushroom head modular red push button operates with a latched turn to release mechanism. It has a metal bezel. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off), is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.

Loyalty points: 5

Price range: £ 25.77 - £ 44.70 Excl. VAT

ETIM group

Low-voltage industrial components

Specifications

Diameter cap	40 mm
Hole diameter	22.5 mm
With lighting	no
Mounting method	Built-in
Unlocking method	Turn-release
Supply voltage lamp	-
Degree of protection (IP)	IP66
Degree of protection (NEMA)	Other
Connection type auxiliary circuit	Screw connection
Number of contacts as normally open contact	1
Number of contacts as normally closed contact	2

Documents

Declaration of Conformity (Sustainability)

XB4BS84441 REACh Regulation
