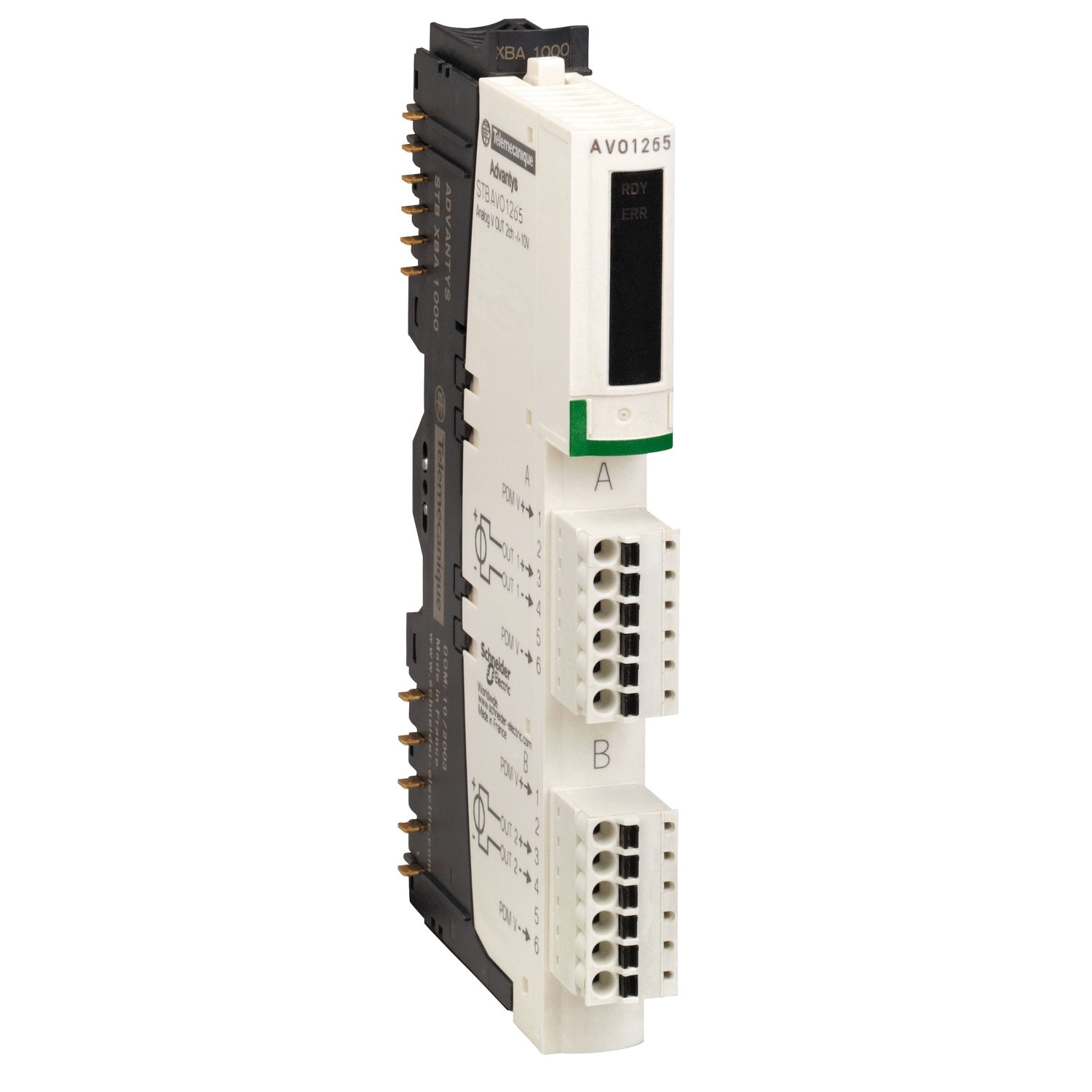

Basic analog output kit STB - +/- 10 V - 2 O - 9 bits + sign

Name: Basic analog output kit STB - +/- 10 V - 2 O - 9 bits + sign
Brand: Schneider Electric
SKU: STBAVO1265K
Price: 160.00 GBP
Availability: OutOfStock

Product identifiers

SKU: STBAVO1265K

EAN: 3595863948981

GTIN: 3595863948981

MPN: STBAVO1265K

Loyalty points: 27

Price: £ 160.00 Excl. VAT

Specifications

Depth	70 mm
Width	128.3 mm
Height	13.9 mm
IO link master	no
Input, current	no
Input, voltage	no
Input, resistor	no
Output, current	no
Output, voltage	yes
System accessory	yes
Power consumption	-
Supply voltage DC
Radio standard GSM	no
Input, thermocouple	no
Radio standard GPRS	no
Radio standard UMTS	no
Rack-assembly possible	yes
Front built-in possible	no
Supply voltage AC 50 Hz
Supply voltage AC 60 Hz
Radio standard Bluetooth	no
Degree of protection (IP)	IP20
Number of analogue inputs	0
Input signal, configurable	no
Number of analogue outputs	2
Output signal configurable	yes
Radio standard WLAN 802.11	no
SIL according to IEC 61508	None
Suitable for rail mounting	yes
Degree of protection (NEMA)	-
Number of HW-interfaces USB	0
Supporting protocol for ASI	no
Supporting protocol for CAN	no
Supporting protocol for KNX	no
Supporting protocol for LON	no
Type of electric connection	Screw connection
Analogue inputs configurable	no
Analogue outputs configurable	yes
Input, resistance thermometer	no
Number of HW-interfaces other	0
Number of interfaces PROFINET	0
Suitable for safety functions	no
Voltage type (supply voltage)	AC/DC
Wall mounting/direct mounting	no
Number of HW-interfaces RS-232	0
Number of HW-interfaces RS-422	0
Number of HW-interfaces RS-485	0
Supporting protocol for Modbus	no
Supporting protocol for SERCOS	no
Supporting protocol for TCP/IP	no
Supporting protocol for SUCONET	no
Number of HW-interfaces parallel	0
Number of HW-interfaces wireless	0
Supporting protocol for EtherCAT	no
Supporting protocol for INTERBUS	no
Supporting protocol for PROFIBUS	no
Appendant operation agent (Ex ia)	no
Appendant operation agent (Ex ib)	no
Explosion safety category for gas	Other
Resolution of the analogue inputs	9 Bit
Supporting protocol for DeviceNet	no
Supporting protocol for PROFIsafe	no
Explosion safety category for dust	Other
Number of HW-interfaces serial TTY	0
Resolution of the analogue outputs	9 Bit
Supporting protocol for EtherNet/IP	no
Supporting protocol for PROFINET IO	no
Supporting protocol for SafetyBUS p	no
Supporting protocol for Data-Highway	no
Supporting protocol for PROFINET CBA	no
Supporting protocol for INTERBUS-Safety	no
Supporting protocol for DeviceNet Safety	no
Supporting protocol for other bus systems	no
Certified for UL hazardous location class I	no
Number of HW-interfaces industrial Ethernet	0
Supporting protocol for Foundation Fieldbus	no
Certified for UL hazardous location class II	no
Certified for UL hazardous location class III	no
Performance level according to EN ISO 13849-1	None
Certified for UL hazardous location division 1	no
Certified for UL hazardous location division 2	no
Supporting protocol for AS-Interface Safety at Work	no
Certified for UL hazardous location group D (propane)	no
Certified for UL hazardous location group B (hydrogen)	no
Certified for UL hazardous location group C (ethylene)	no
Fieldbus connection over separate bus coupler possible	yes
Certified for UL hazardous location group A (acetylene)	no
Certified for UL hazardous location group E (metal dusts)	no
Certified for UL hazardous location group F (carbonaceous dusts)	no
Certified for UL hazardous location group G (non-conductive dusts)	no
