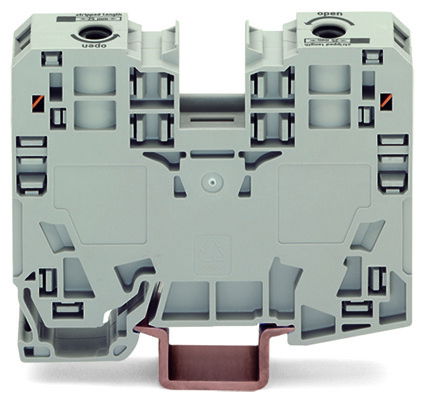

2-conductor through terminal block 35 mm² lateral marker slots gray
2-conductor through terminal block; 35 mm²; lateral marker slots; only for DIN 35 x 15 rail; POWER CAGE CLAMP; 35,00 mm²; gray
Product identifiers
SKU: 285-135
EAN: 4045454507381
GTIN: 4045454507381
MPN: 285-135
Loyalty points:
2
Price range: £ 6.74 - £ 7.54 Excl. VAT
Categories
Features
|
Depth
|
63
|
|
Width
|
16
|
|
Colour
|
Grey
|
|
Height
|
86
|
|
Rated voltage
|
1000
|
|
Mounting method
|
DIN rail (top hat rail) 35 mm
|
|
Number of levels
|
1
|
|
Rated current In
|
125
|
|
Operating temperature
|
105 - 105
|
|
Closing plate required
|
no
|
|
Material insulation body
|
Thermoplastic
|
|
Internally connected stages
|
no
|
|
Explosion-tested version 'Ex e'
|
no
|
|
Suitable for conductor material
|
-
|
|
Type of electrical connection 1
|
Spring clamp connection
|
|
Type of electrical connection 2
|
Spring clamp connection
|
|
Number of clamp positions per level
|
2
|
|
Connectable conductor cross section solid-core
|
6 - 35
|
|
Connectable conductor cross section multi-wired
|
6 - 35
|
|
Inflammability class of insulation material according to UL94
|
V0
|
|
Connectable conductor cross section fine-strand with cable end sleeve
|
6 - 35
|
|
Connectable conductor cross section fine-strand without cable end sleeve
|
6 - 35
|
