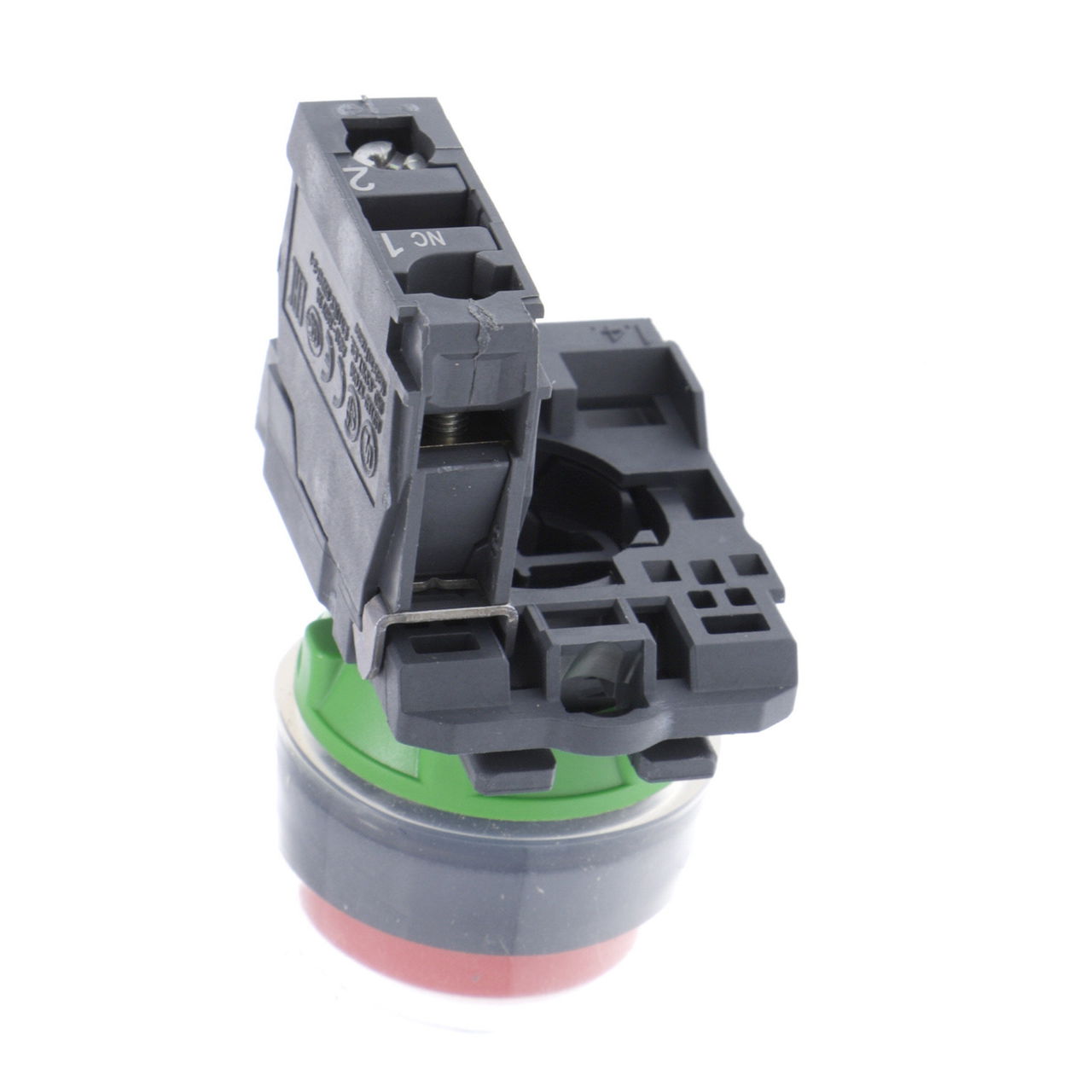

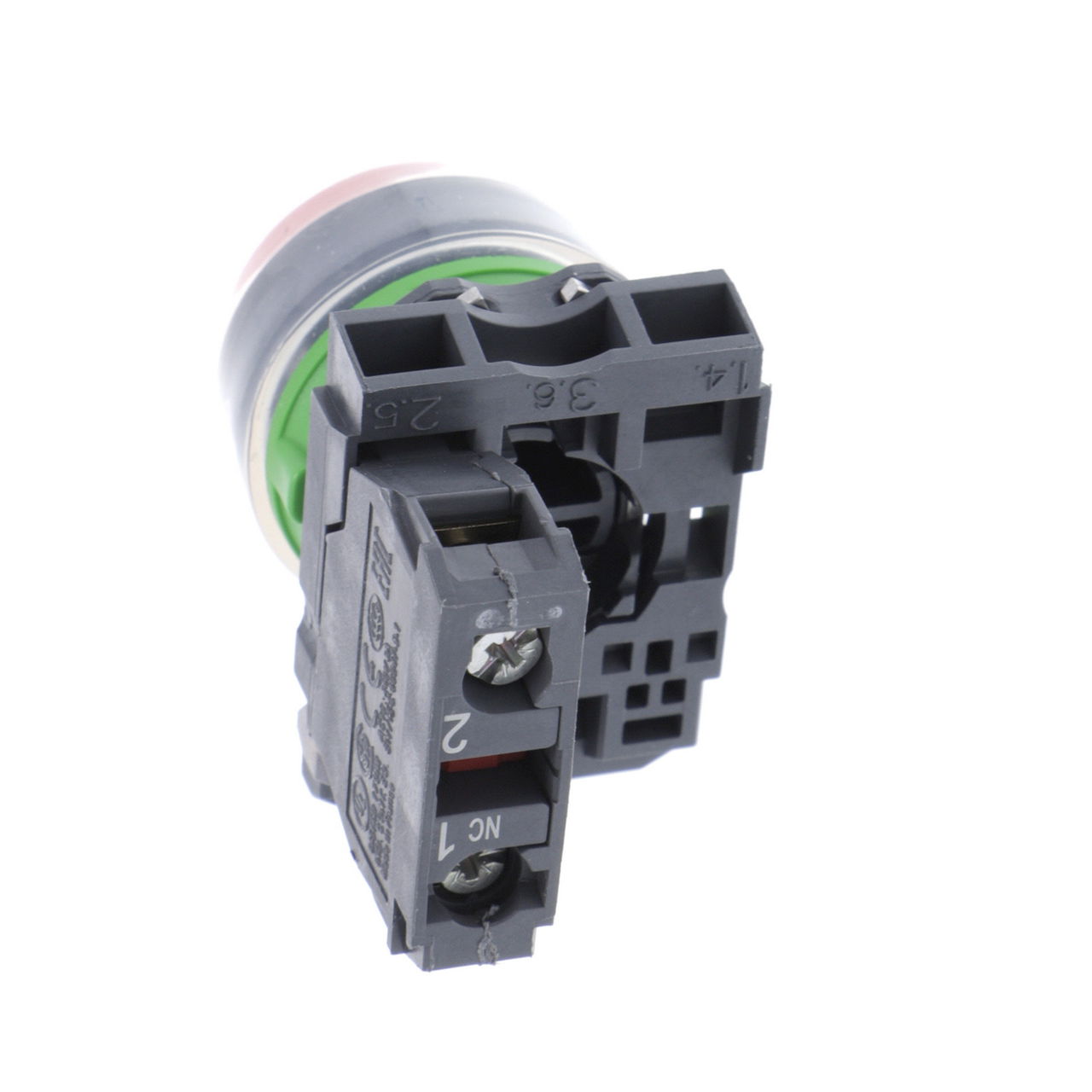

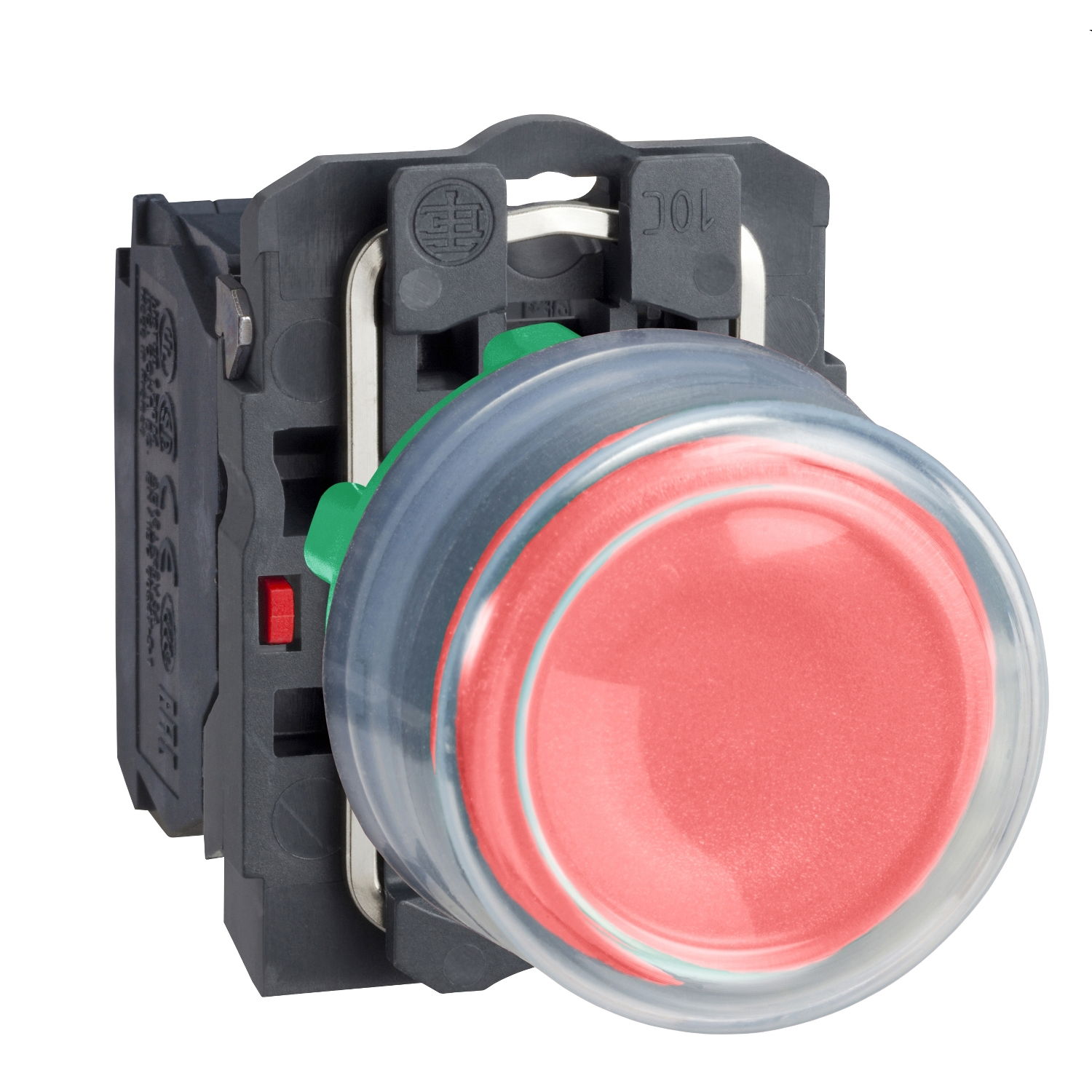

Harmony XB5, Push button, plastic, projecting, red, Ø22, spring return, booted, unmarked, 1 NO

Link copied
SKU
EAN
GTIN
MPN

Harmony XB5, Push button, plastic, projecting, red, Ø22, spring return, booted, unmarked, 1 NO by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Farnell, RS Components and City Electrical Factors. It is currently in stock at 2 of them. Trade prices range from £15.81 to £16.72 excl. VAT. Voltimum+ members earn 2 points per unit.

This Harmony XB5, clear silicone booted modular red push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This silicone booted push button provides a simple solution to comply with hygiene requirement in food, beverage industries as well as healthcare and pharmaceuticals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Voltimum+ Loyalty Programme Loyalty points: 2

Price range: £ 15.81 - £ 16.72 Excl. VAT

Specifications

Transparent no
Colour button Red
Hole diameter 22.5 mm
Spring-return yes
Width opening -
Height opening -
Type of button High
With front ring yes
Material front ring Plastic
Suitable for lighting no
Degree of protection (IP) IP66
Number of command positions 1
Type of electric connection Screw connection
Number of contacts as normally open contact 0

Documents

Declaration of Conformity (Sustainability)

XB5AP42 REACh Regulation

Open

Instruction sheet

XB4-XB5 - Mounting, Instruction Sheet

Open

Product data sheet

Open

Catalog

Discover the Harmony XB5 plastic Control and signaling units catalog

Open

Declaration of Conformity (Sustainability)

XB5AP42 EU RoHS Directive

Open

Declaration of conformity

XB4B, XB5A/D/E/K, Control and signaling units, XD4P, XD5P Joystick Controllers

Open

Environmental Disclosure

XB5 Plastic Non Illuminated Push Button - Product Environmental Profile

Open

Circularity Profile

XB5 Plastic Non Illuminated Push Button - EnD Of Life Instructions

Open
