Electronic overload relay for motor TeSys - 0.3...1.5 A - 200...240 V AC

Name: Electronic overload relay for motor TeSys - 0.3...1.5 A - 200...240 V AC
Brand: Schneider Electric
SKU: LR97D015M7
Availability: InStock

Electronic overload relay for motor TeSys - 0.3...1.5 A - 200...240 V AC by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, RS Components and 1 more. It is currently in stock at 2 of them. Trade prices range from £105.86 to £106.92 excl. VAT. Voltimum+ members earn 14 points per unit.

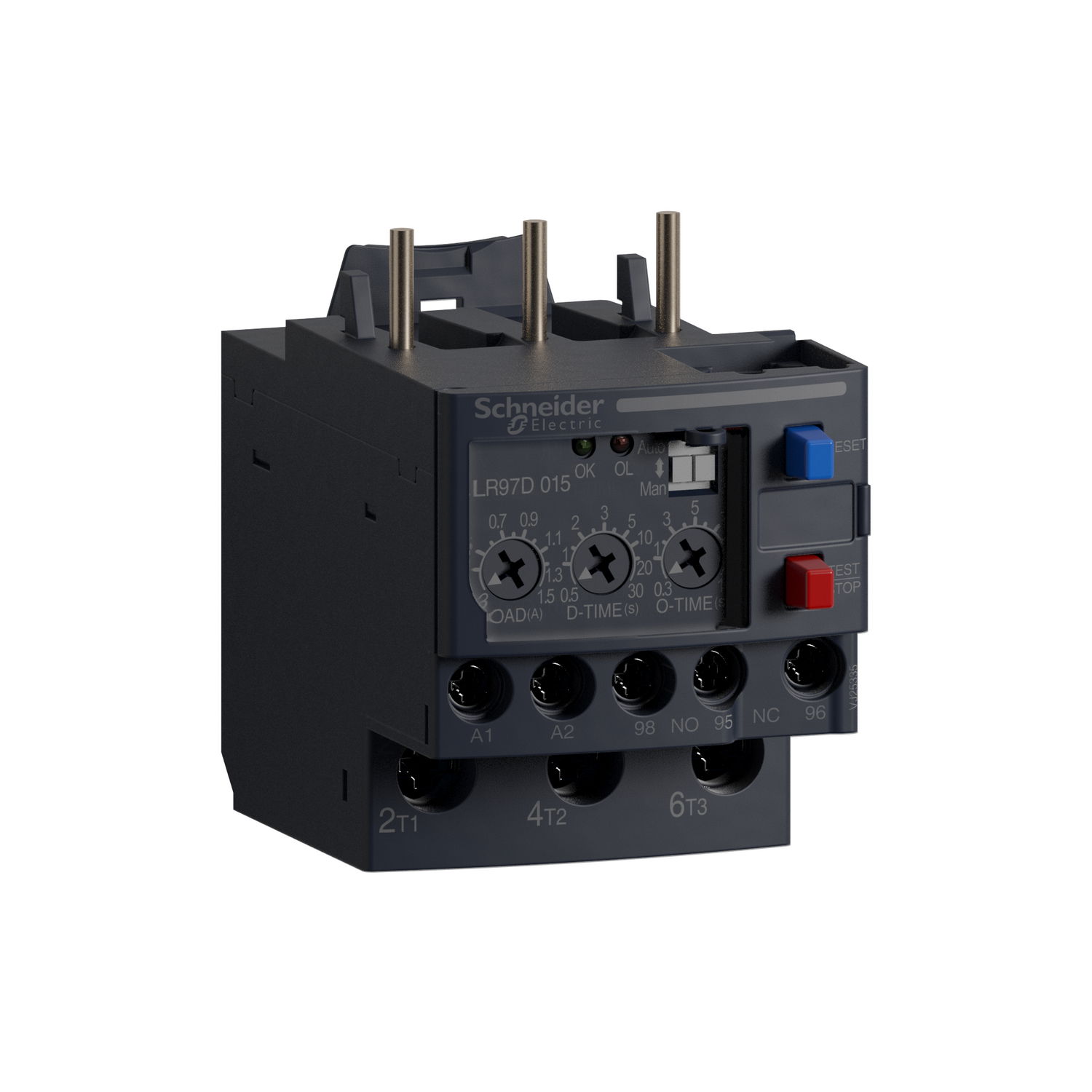

TeSys LR97D electronic overcurrent relay, 1.5A/690V, to be supplied with 200-240V AC, for protection of motors with a rated current 0.3-1.3A. It provides 3 dials to adjust the protection, LOAD (0.3-1.5A) for the overcurrent level, O-TIME (0.3-10sec) for the acceptable duration of the overcurrent, D-TIME (0.5-30sec) for the starting duration. In addition, the device trips when the current is higher than 3 x LOAD during more than 0.5sec in steady state and if there is a missing phase during more than 3sec. The settings include selectors for 1-phase/3-phase motors and manual/automatic reset, and the device has a reset button, a test/stop button, 2 LED indicators (Run/Trip), 2 auxiliary contacts 1NO/NC for fault signalling. Settings can be locked by sealing the transparent cover. For direct attachement to the bottom terminals of a 3-pole contactor LC1D09-D38, with screw clamp terminals on bottom, the separate mounting from the contactor is possible using the terminal block LAD7B106 (to be ordered separately). Multi-standards certified (IEC, UL, CSA, CCC, EAC), compliant RoHs/Reach.

Product identifiers

SKU: LR97D015M7

EAN: 3389110575804

GTIN: 3389110575804

MPN: LR97D015M7

Loyalty points: 14

Price range: £ 105.86 - £ 106.92 Excl. VAT

Specifications

Depth	67.5 mm
Width	45 mm
Height	64.5 mm
Release class	Adjustable
Mounting method	Direct attachment
Operating voltage DC
Rated switch current	-
Reset function input	yes
Adjustable current range
Reset function automatic	yes
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Reset function push-button	yes
Voltage type for actuating	AC
External power supply required	no
Rated control supply voltage DC
Voltage type (operating voltage)	AC
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Type of electrical connection of main circuit	Screw connection
Number of auxiliary contacts as change-over contact	1
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0

Documents

Declaration of Conformity (Sustainability)

LR97D015M7 REACh Regulation
