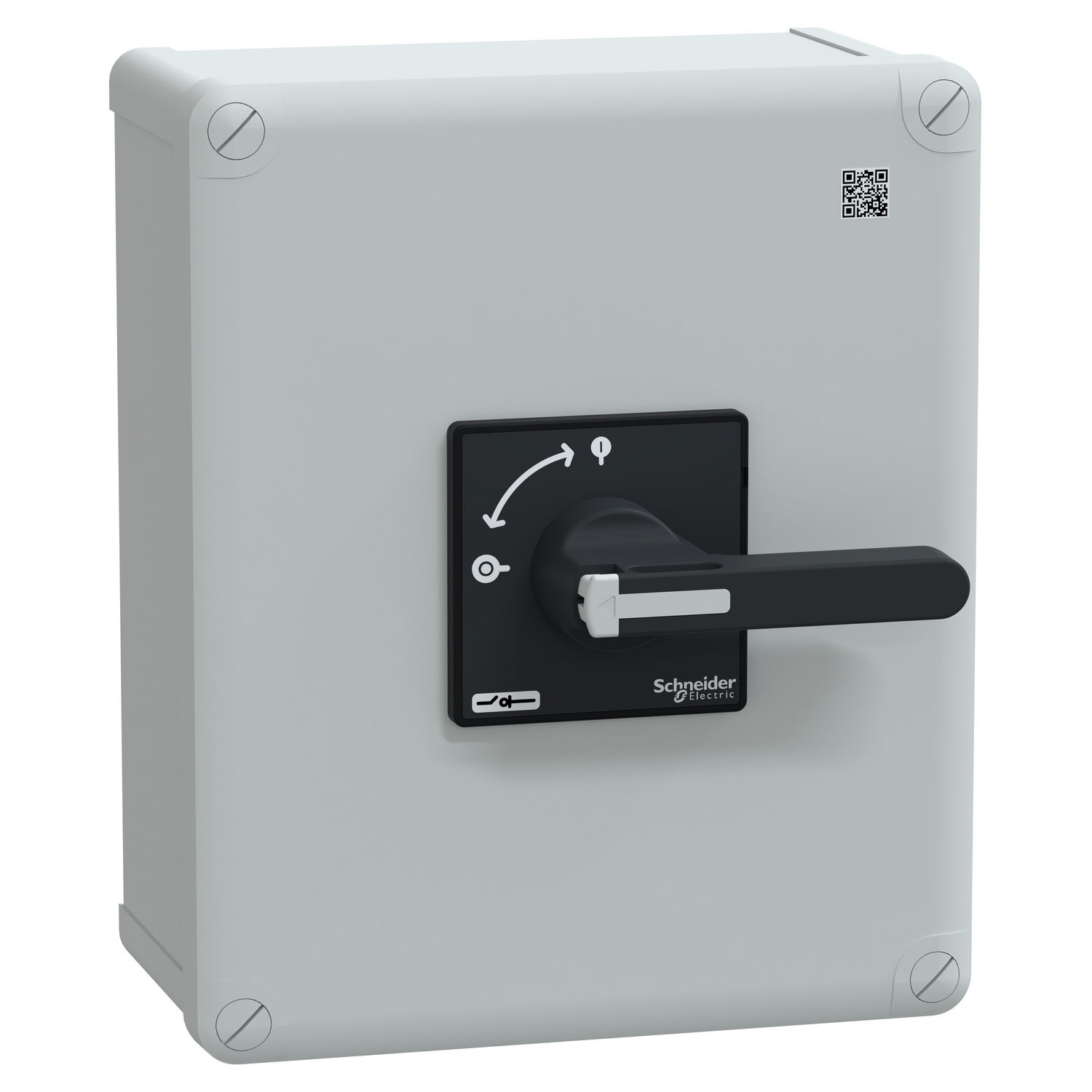

TeSys Vario enclosed, main switch disconnector, 100A, IP65, long handle

Name: TeSys Vario enclosed, main switch disconnector, 100A, IP65, long handle
Brand: Schneider Electric
SKU: VBF5GEN
Availability: InStock

TeSys Vario enclosed, main switch disconnector, 100A, IP65, long handle by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and Rexel Group. It is currently in stock at 1 of them. Trade price £288.20 excl. VAT. Voltimum+ members earn 33 points per unit.

TeSys enclosed starter with switch disconnector, 3 poles, Ithe 100A 690V, for main switching in motor applications up to 37kW@400V AC-23. Enclosure providing IP65 protection, fitted with a black long rotary handle and black front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V5 with 1 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60204 and IEC 60947-4-1,

Product identifiers

SKU: VBF5GEN

EAN: 3389119413169

GTIN: 3389119413169

MPN: VBF5GEN

Loyalty points: 33

Price: £ 288.20 Excl. VAT

Specifications

Depth	191 mm
Width	220 mm
Height	280 mm
Interlockable	yes
Number of poles	3
Number of switches	1
Device construction	Complete device in housing
Motor drive optional	no
Colour control element	Black
Motor drive integrated	no
Version as main switch	yes
Rated operating voltage
Type of control element	Long turning handle
Switching power at 400 V	-
Version as safety switch	no
Voltage release optional	no
Rated permanent current Iu	100 A
With pre-assembled cabling	no
Degree of protection (NEMA)	-
Suitable for floor mounting	yes
Version as reversing switch	no
Max. rated operation voltage Ue AC	690 V
Suitable for front mounting 4-hole	no
Suitable for front mounting centre	no
Suitable for intermediate mounting	no
Width in number of modular spacings	-
Rated operation power at AC-3, 400 V	30 kW
Degree of protection (IP), front side	IP65
Rated operation power at AC-23, 400 V	37 kW
Rated short-time withstand current lcw	1.5 kA
Version as emergency stop installation	no
Version as maintenance-/service switch	yes
Rated permanent current at AC-21, 400 V	125 A
Rated permanent current at AC-23, 400 V	68.5 A
Conditioned rated short-circuit current Iq	10 kA
Suitable for distribution board installation	no
Type of electrical connection of main circuit	Screw connection
Number of auxiliary contacts as change-over contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
