Schneider Electric

CABLE ENDS

CABLE ENDS by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Farnell, RS Components and Rexel Group. It is currently in stock at 2 of them. Trade prices range from £0.12 to £13.50 excl. VAT. Voltimum+ members earn 1 point per unit.

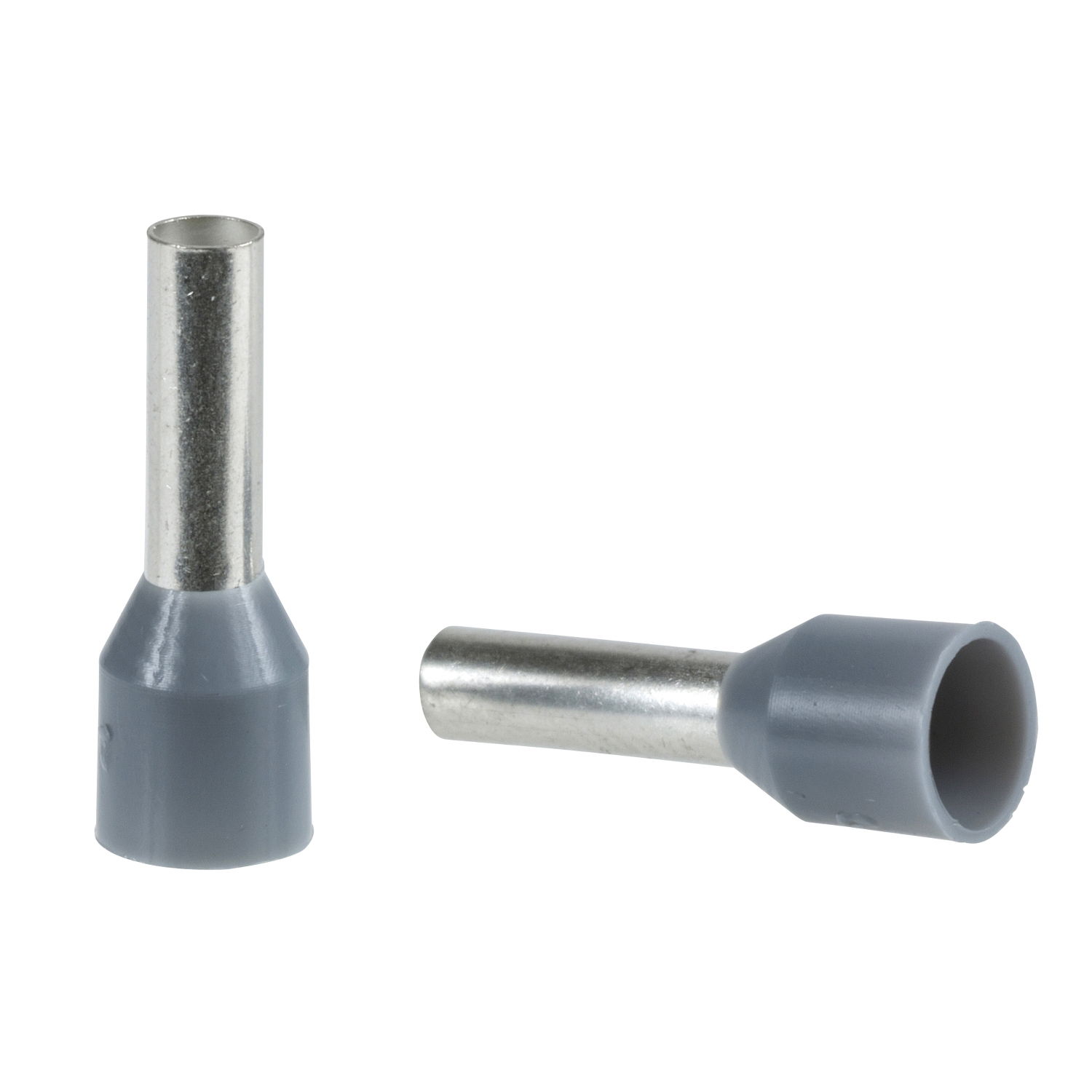

Linergy cable end insulated without marker tag holder. It applied to single conductor with 2.5 mm² cable cross section. It is medium size without marker tag holder. Packing by string of bags and quantity per set is 10 sets of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is UL certified. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is UL certified. It is compliant with Green Premium (RoHS/REACH).

Product identifiers

SKU: DZ5CE025
EAN: 3389110537024
GTIN: 3389110537024
MPN: DZ5CE025

Voltimum+ Loyalty Programme Loyalty points: 1

Price range: £ 0.12 - £ 13.50 Excl. VAT

Categories

Wiring Accessories & Installation Wiring Accessories

ETIM group

Installation, isolation and connection material (electrotechnical)

Specifications

Colour Grey
AWG size 14
Material Copper
Insulated yes
Halogen free no
Total length 14 mm
Sleeve length 8 mm
Construction type Standard
Material insulation Other
Nominal cross section 2.5 mm²
For cables resistant to short circuit no
