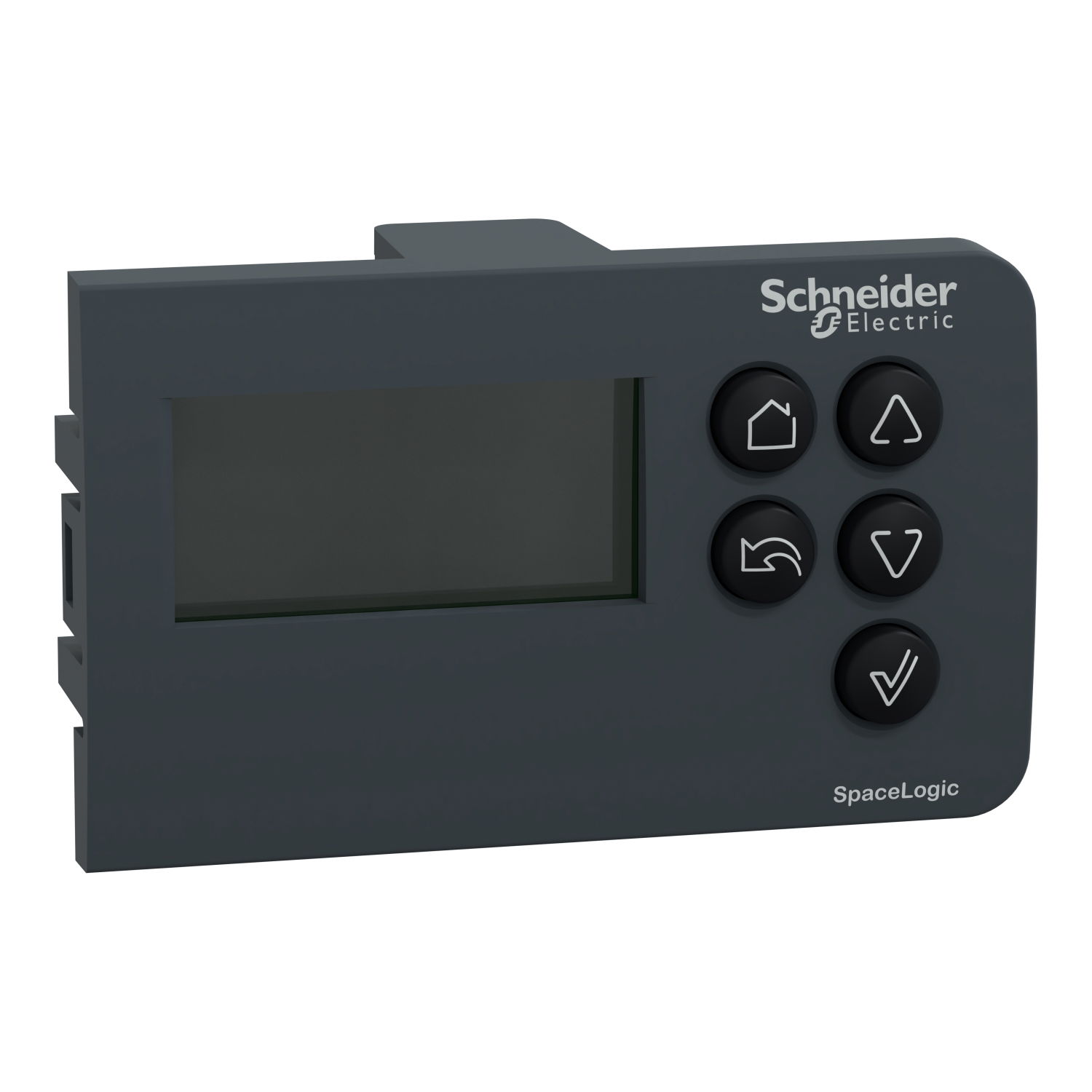

SmartX IP Override Display Module, For All MP-C Models

Link copied
SKU
EAN
GTIN
MPN
SpaceLogic MP-C Display is an optional add-on module for all SpaceLogic MP-C models. It features an LCD display with a resolution of 128 x 64 pixels and five keys. It can be used to manually override outputs for testing, commissioning and maintenance of equipment connected to the outputs. Its dimensions are 46 mm (1.8 in.) in height, 74 mm (2.9 in.) in width and 24 mm (0.9 in.) in depth. The display is compliant with EN ISO 16484-2. The display module is compatible with all SpaceLogic MP-C models. .

Voltimum+ Loyalty Programme Loyalty points: 29

Price: £ 171.00 Excl. VAT

Specifications

Accessory yes
Spare part no
Type of accessory/spare part Other

Documents

Declaration of Conformity (Sustainability)

SXWMPCDSP10001 REACh Regulation

Open

Instruction sheet

SpaceLogic™ MP-C Display Installation Sheet

Open

Product data sheet

Open

Declaration of Conformity (Sustainability)

SXWMPCDSP10001 EU RoHS Directive

Open

Declaration of conformity

CE-DOC-000059-01 SpaceLogic MP-C Series Declaration of conformity

Open

Environmental Disclosure

PEP Spacelogic MP-C Override Display Module

Open

Circularity Profile

EoLI Spacelogic MP-C Override Display Module

Open

CAD

SpaceLogic MP-C DISPLAY 3D-simplified CAD file

Open
