"Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H40 W600mm, 1 row, set of 2"

Name: "Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H40 W600mm, 1 row, set of 2"
Brand: Schneider Electric
SKU: NSYSQCR4060
Price: 17.55 GBP
Availability: InStock

"Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H40 W600mm, 1 row, set of 2" by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Control Components Anglia. Voltimum+ members earn 3 points per unit.

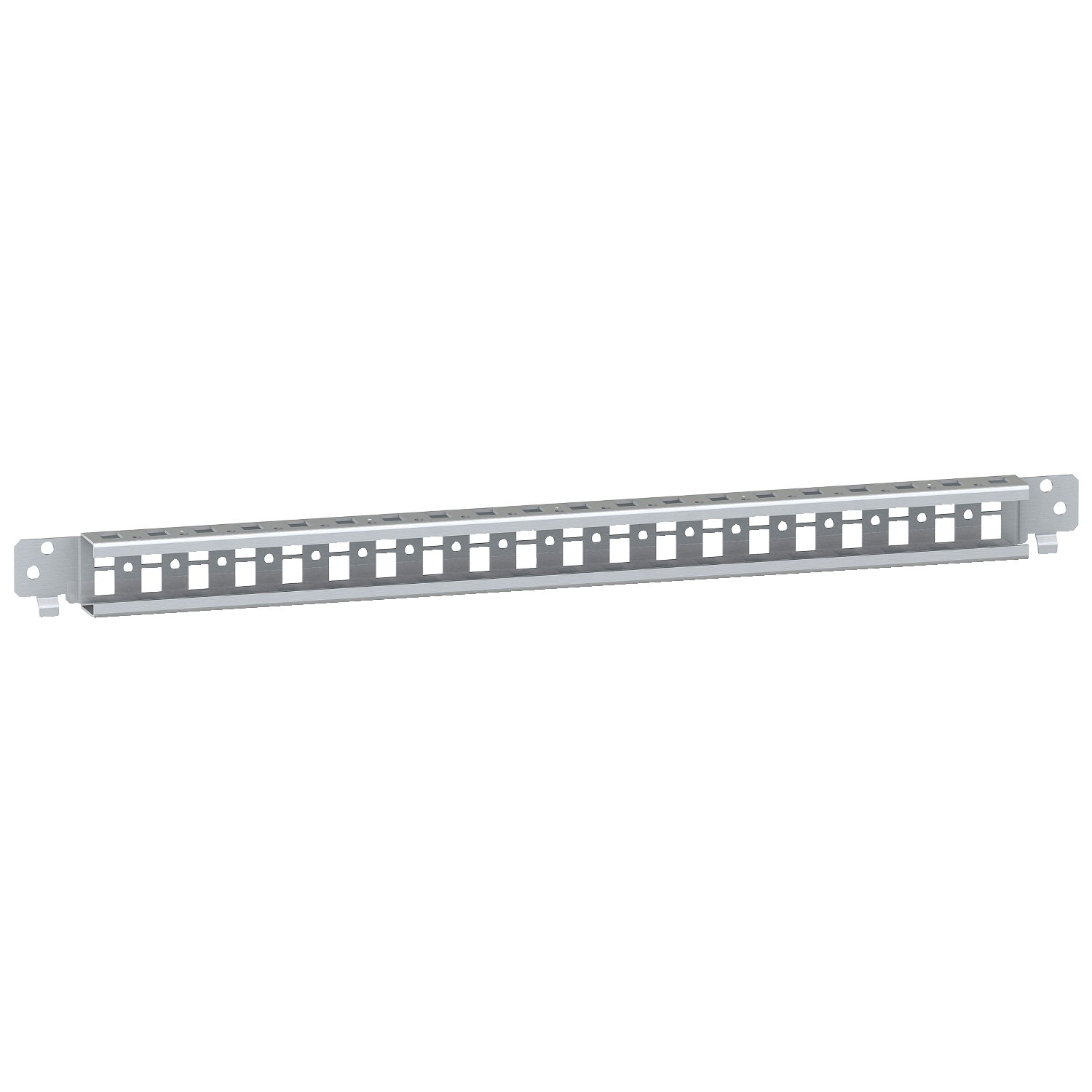

This set of two quick-fixing cross rail is suitable for PanelSeT SFN, PanelSeT SF, PanelSeT SM and PanelSeT SFX electrical enclosures. They are used for the creation of structures inside the enclosure. These mounting elements are made of galvanized steel. They have a nominal width of 40 mm and a nominal length of 40 mm. Each row is perforated every 25 mm with a 5.2 mm diameter hole and a 11x13 mm. They are fixed by means of caged nuts or self-tapping screws, and can be adjusted with a pitch of 25 mm. The set consists of two cross rails and fixing elements.

Product identifiers

SKU: NSYSQCR4060

EAN: 3606485132662

GTIN: 3606485132662

MPN: NSYSQCR4060

Loyalty points: 3

Price: £ 17.55 Excl. VAT

Specifications

Depth	27 mm
Model	Mounting rail
Width	600 mm
Colour	Other
Height	40 mm
Material	Metal
RAL-number	-
Max. load capacity	50 kg
Suitable for enclosure building depth	600 mm
Suitable for enclosure building width	600 mm
Suitable for enclosure building height	-
