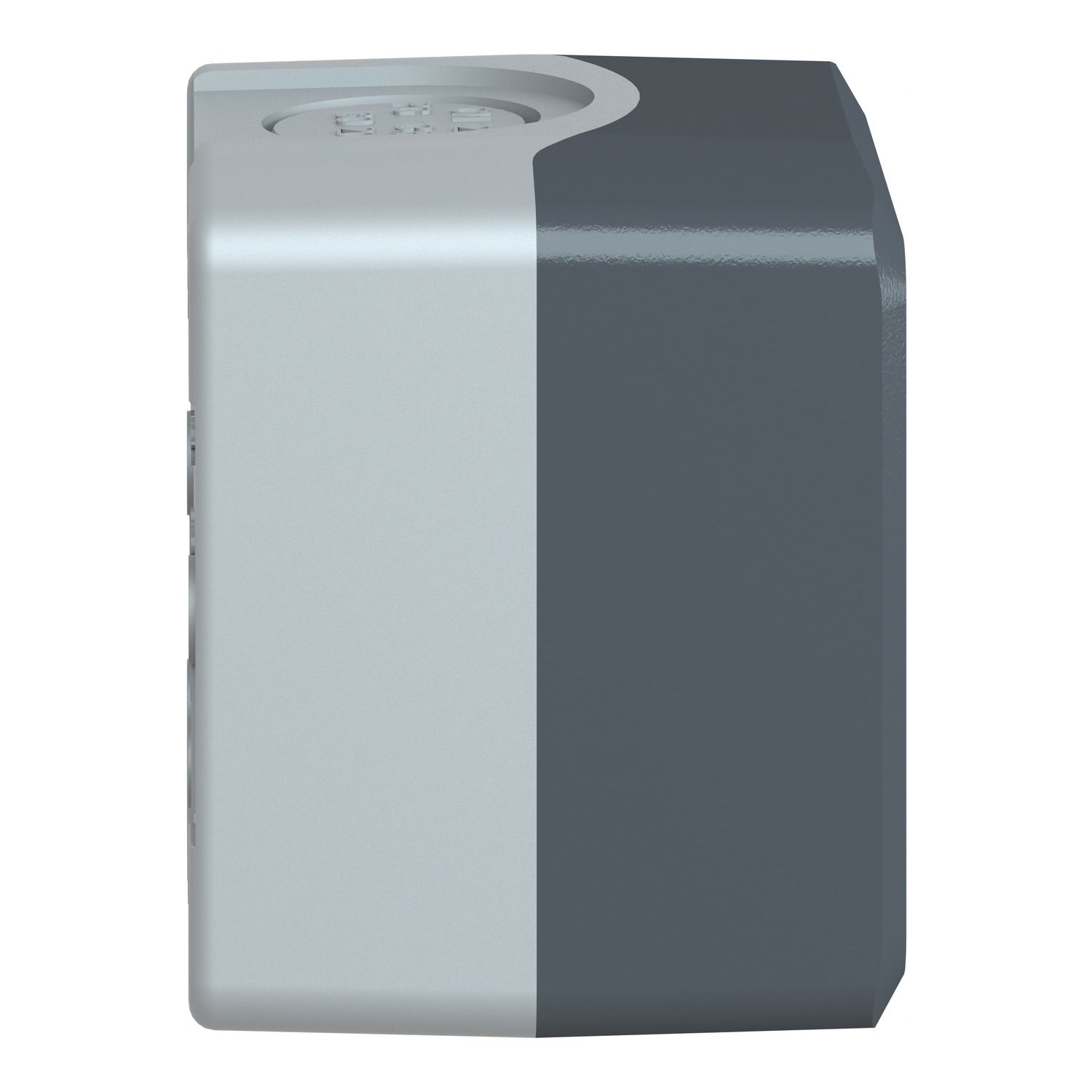

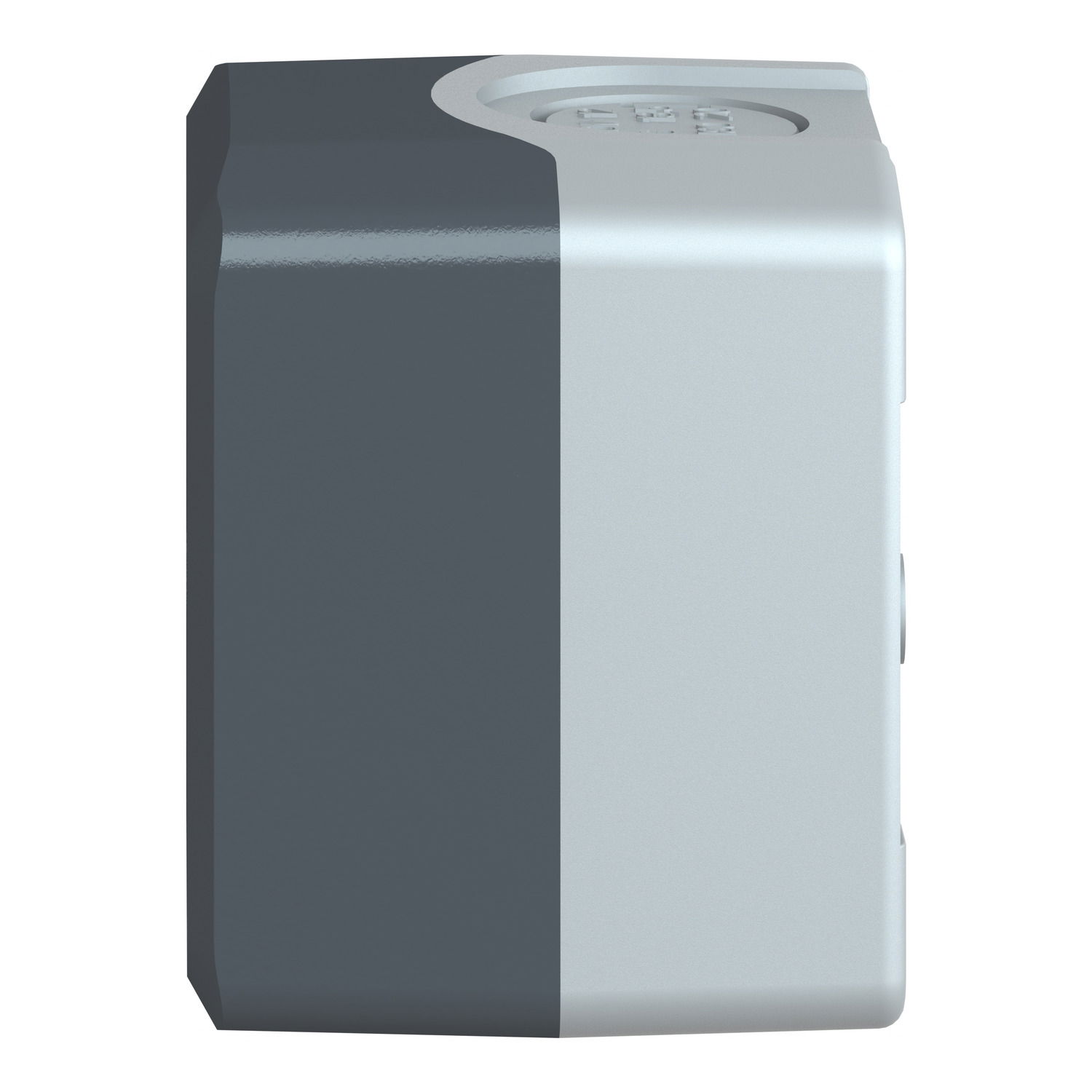

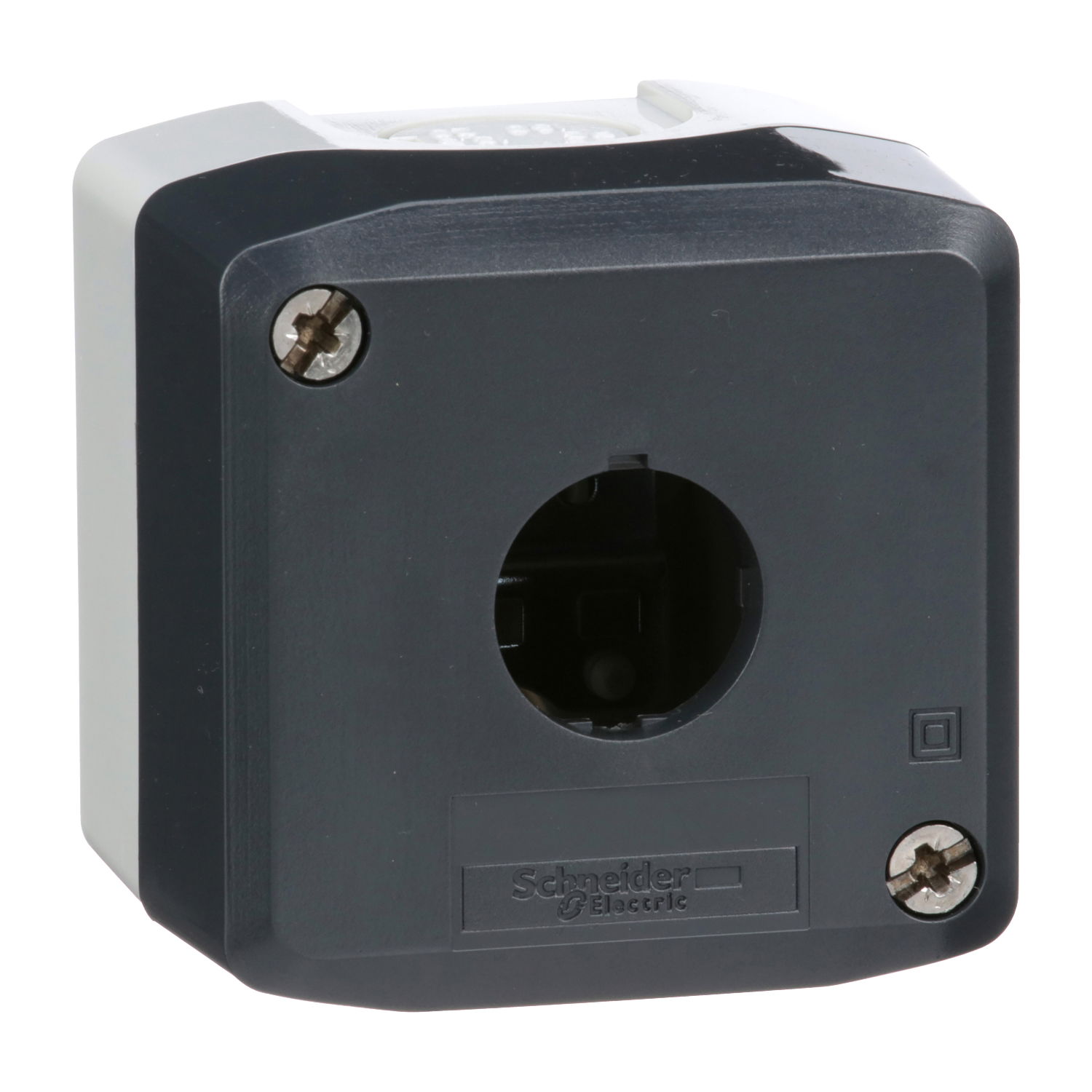

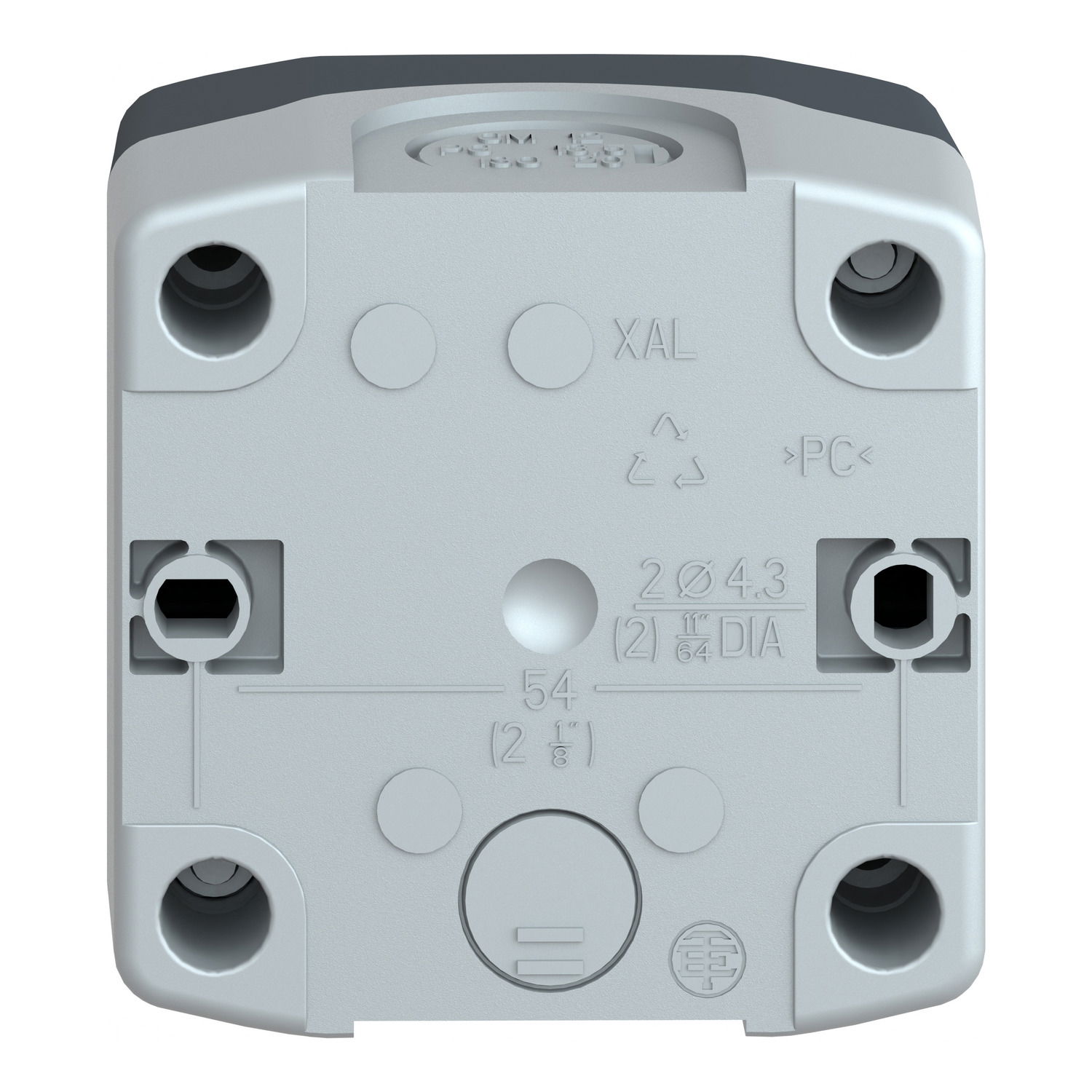

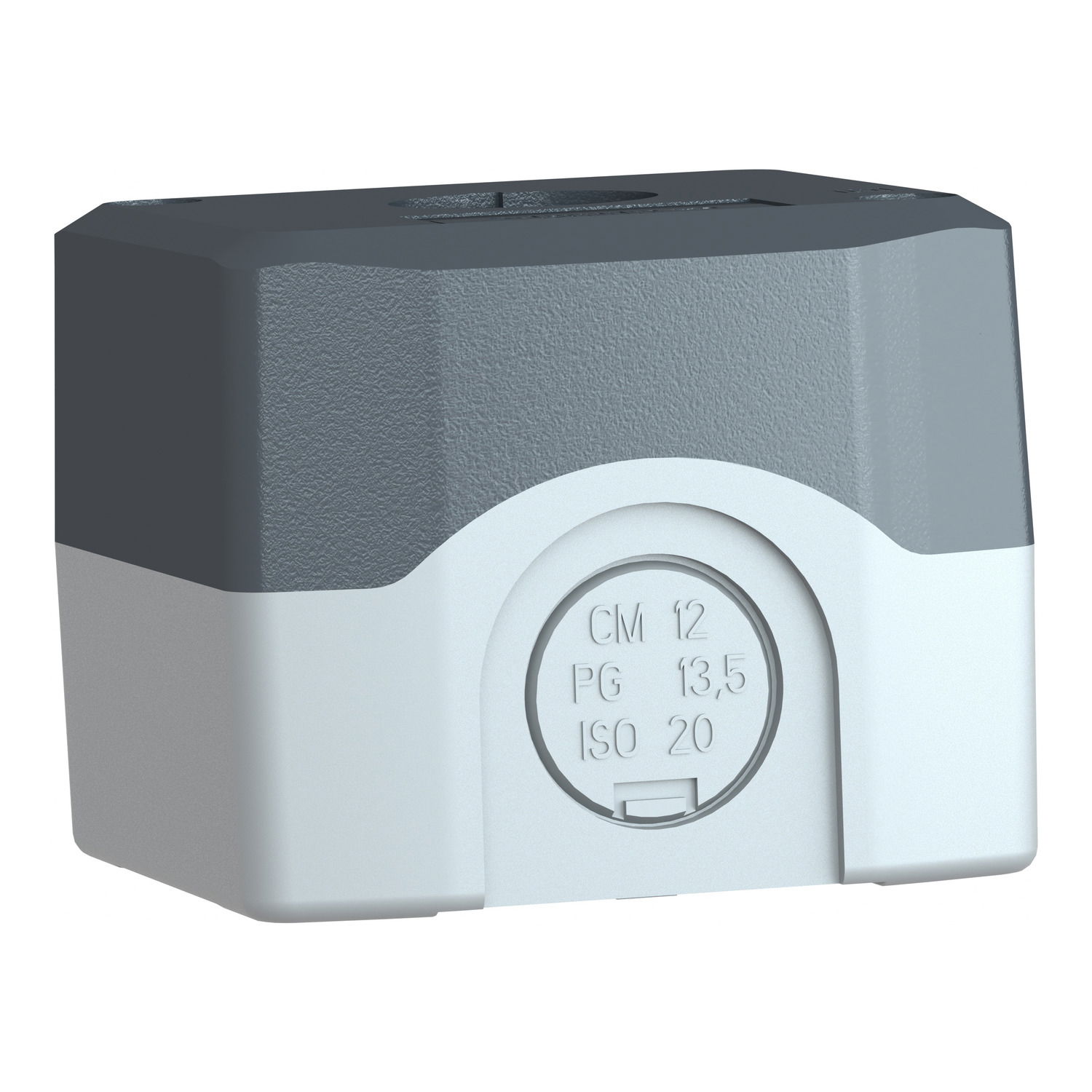

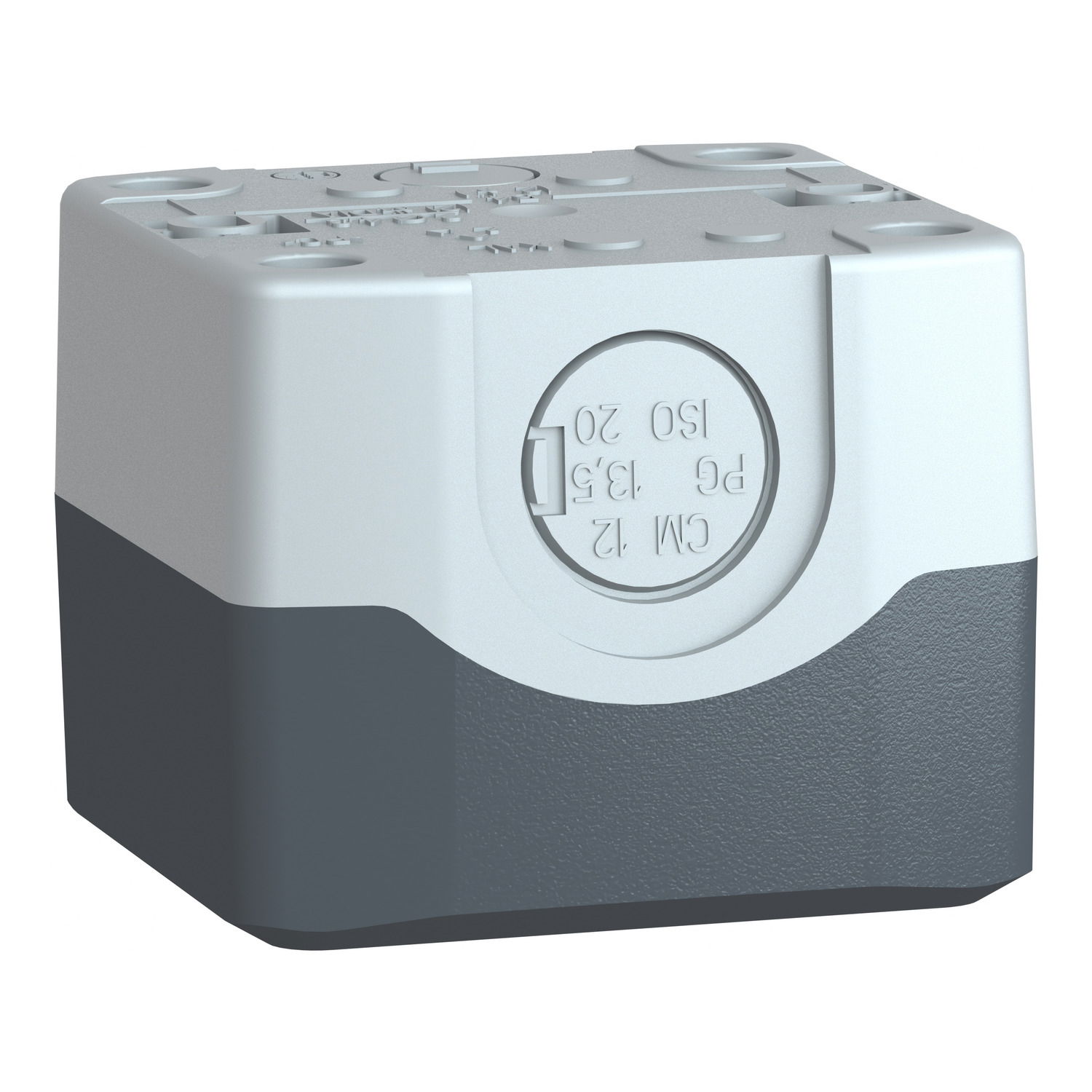

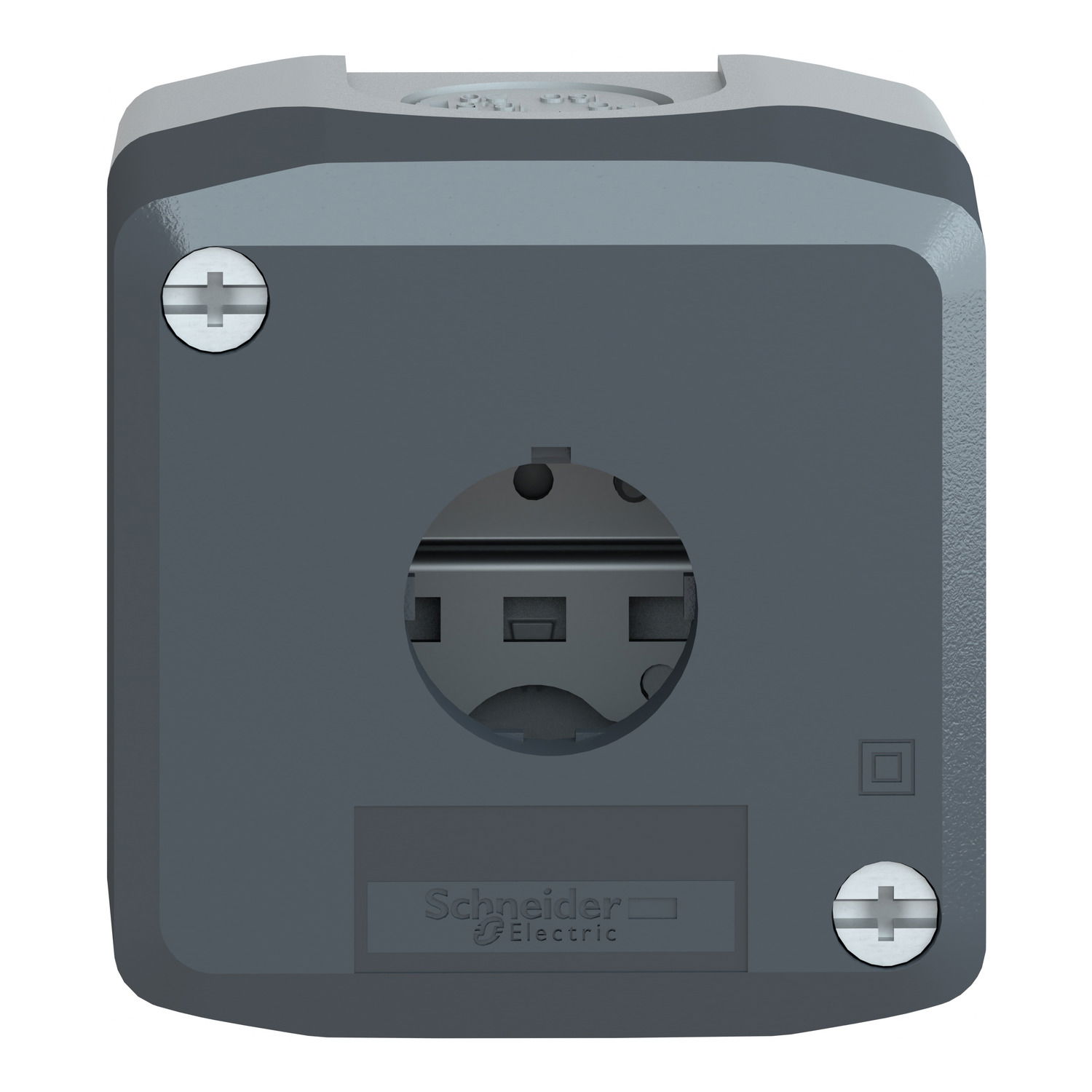

Empty enclosure, plastic, dark grey lid, for push button Ø22, 1 cut-out
Empty enclosure, plastic, dark grey lid, for push button Ø22, 1 cut-out
- SKU
- EAN
- GTIN
- MPN
Empty enclosure, plastic, dark grey lid, for push button Ø22, 1 cut-out by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at all of them. Trade prices range from £9.56 to £15.57 excl. VAT. Voltimum+ members earn 2 points per unit.
Loyalty points:
2
Price range: £ 9.56 - £ 15.57 Excl. VAT
Categories
ETIM group
Specifications
| Depth | 53 mm |
| Width | 68 mm |
| Height | 68 mm |
| Housing material | Plastic |
| Diameter openings | 22.5 mm |
| Colour housing cover | Grey |
| Housing material quality | ABS |
| Construction type housing | Surface mounted housing |
Documents
Declaration of Conformity (Sustainability)
XALD01 REACh Regulation
Instruction sheet
XALD / XALK - Empty control station, Instruction Sheet
Product data sheet
Catalog
XALK_XALD_Catalogue
Declaration of Conformity (Sustainability)
XALD01 EU RoHS Directive
Declaration of conformity
XB4R, XB5R, ZBRN1, ZBRN2, ZBRCETH, ZBRA2 Wireless & Batteryless pushbuttons and XALD
Environmental Disclosure
Harmony XAL Control Stations
Circularity Profile
Harmony XAL Control Stations
