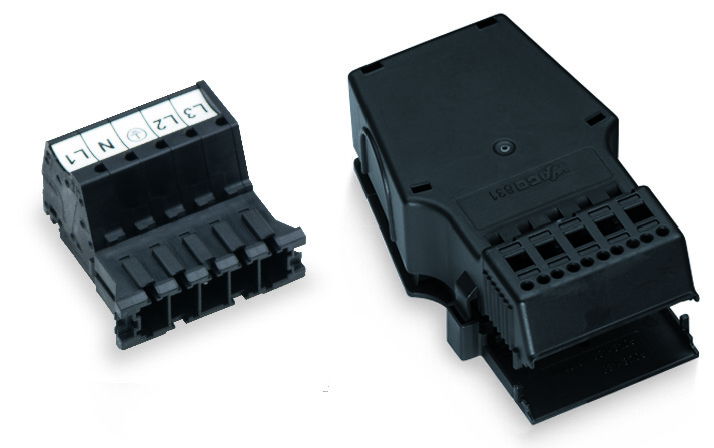

Plug with strain relief housing 5-pole black

Name: Plug with strain relief housing 5-pole black
Brand: Wago
SKU: 831-3205/1020-004
Availability: InStock

Plug; with strain relief housing; 5-pole; Cod. A; 6,00 mm²; black

Product identifiers

SKU: 831-3205/1020-004

EAN: 4055143500746

GTIN: 4055143500746

MPN: 831-3205/1020-004

Price range: £ 8.86 - £ 10.96 Excl. VAT

Specifications

Model	Plug
Width	48
Height	29
Length	46
Fire load	0.38722
Halogen free	yes
Rated current	35
Rated voltage	400
Cable diameter	13 - 18
Connection type	Spring clamp connection
Number of poles	5
Type of locking	Separate
Contact material	CuSn
Housing material	Polyamide (PA)
Pollution degree	3
Mechanical coding	yes
Pole codification	Other
With strain relief	yes
Rated surge voltage	6
Continuity resistance	1
Degree of protection (IP)	IP20
Surface treatment contacts	Tinned
Colour coding/contact insert	Black
Number of connections per pole	1
RAL-number coding/contact insert	9004
Connection cross section (solid-core)	0.5 - 6
Connection cross section (fine-strand)	0.5 - 6
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
