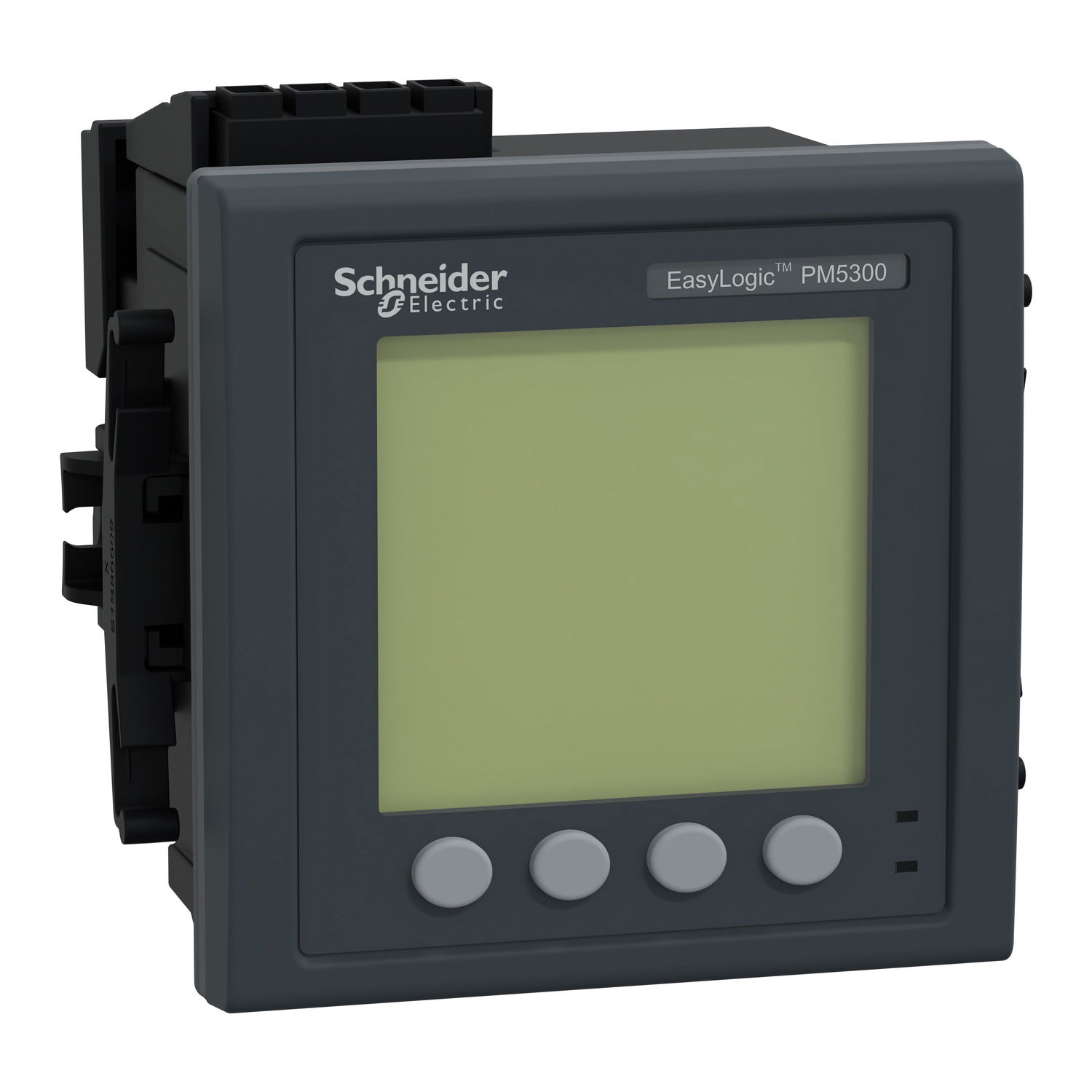

PM5320R Meter, ethernet, up to 31st H, 256K 2DI/2DO 35 alarms, RJ45 LVCT

Link copied
SKU
EAN
GTIN
MPN
This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display, compatible with 3-in-1 current transducer. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 64 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 31st Harmonic. Include 256 kiloBytes of memory for two fixed parameters, active and reactive energy. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 415 VAC and 125 to 250 VDC. Line rated current for this meter is proprietary and delivered by a 3-in-1 current transducer connected to the device with a RJ45 connector. Suitable for Three PhaseBusbar monitoring. The range of measurement voltage between Phases is 35 to 690 VAC at 47 to 63 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 47 to 63 Hz. Communication protocol are Modbus TCP/IP and BACnet/IP based on 10/100 Mbit/s, Ethernet with RJ45 port support. The meter also has two digital inputs or digital outputs, configurable. There are 35 configurable alarms and it supports four tariff schedules. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 2.83 inches (72 millimetres), height 3.78 inches (96 millimetres) and product weight 15.2 onces (430 g).

Voltimum+ Loyalty Programme Loyalty points: 114

Price: £ 682.00 Excl. VAT

Documents

Declaration of Conformity (Sustainability)

METSEPM5320R REACh Regulation

Open

User guide

PowerLogic™ PM5310R / PM5320R - User Manual

Open

Instruction sheet

PowerLogic™ PM5310R / PM5320R - Instruction sheet

Open

Product data sheet

Open

Catalog

PowerLogic Power Monitoring and Control Catalog - Web

Open

Declaration of Conformity (Sustainability)

METSEPM5320R EU RoHS Directive

Open

Declaration of conformity

EU Declaration of Conformity_PM5000Series

Open

Environmental Disclosure

PM5100/PM5300 Series Power and Energy Meter, Environmental Disclosure, Product Environmental Profile

Open
