Schneider Electric
Popularity Top 30% More about Popularity
Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

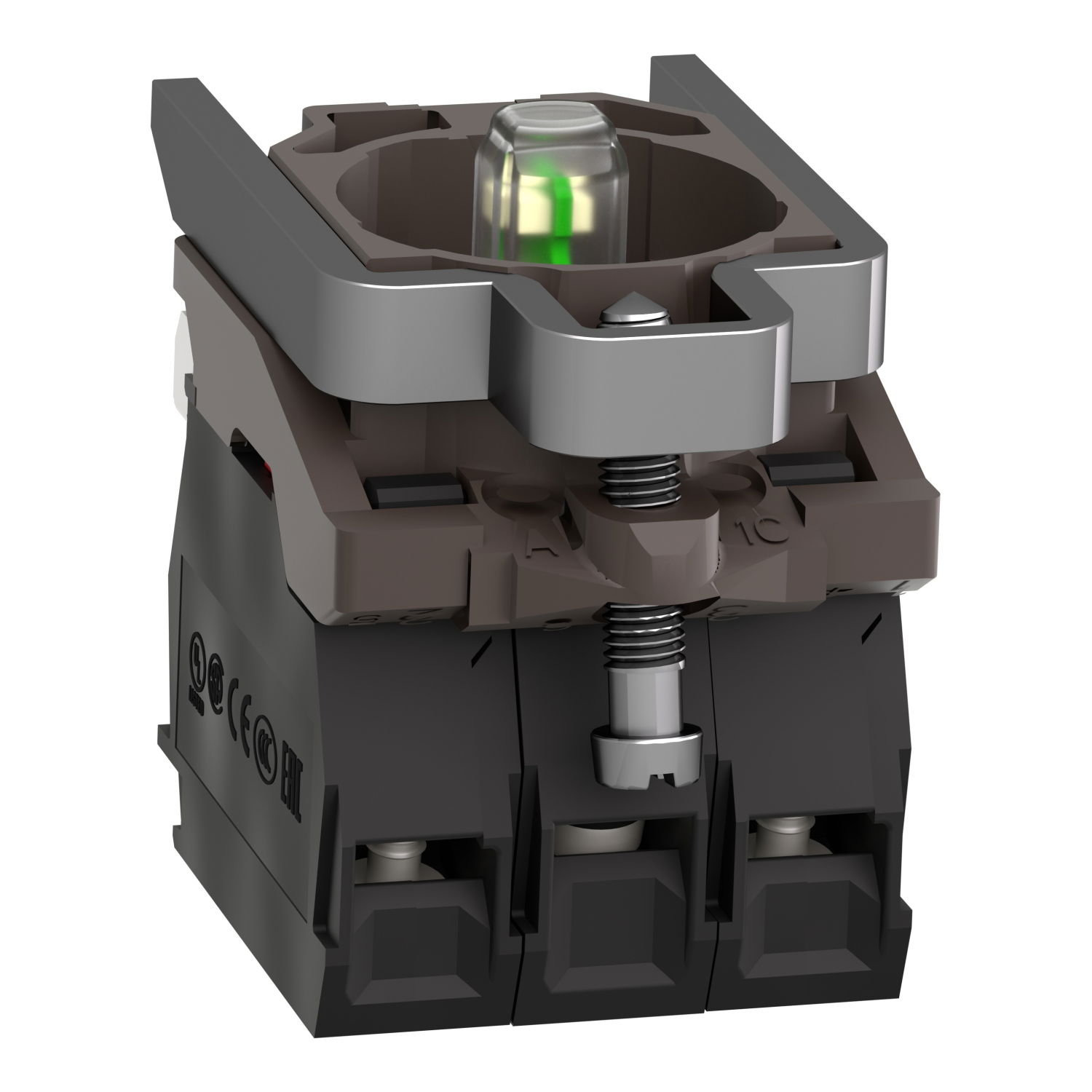

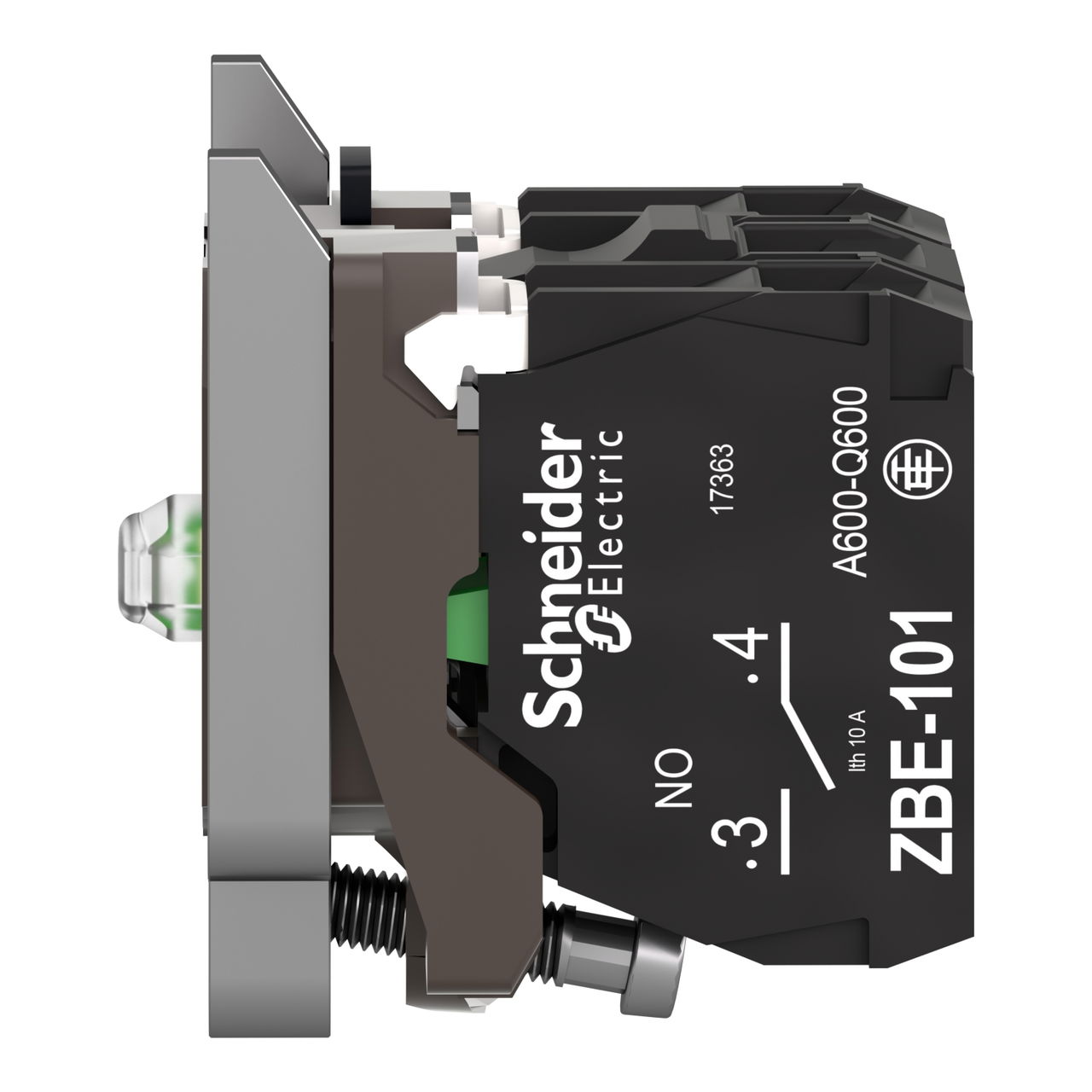

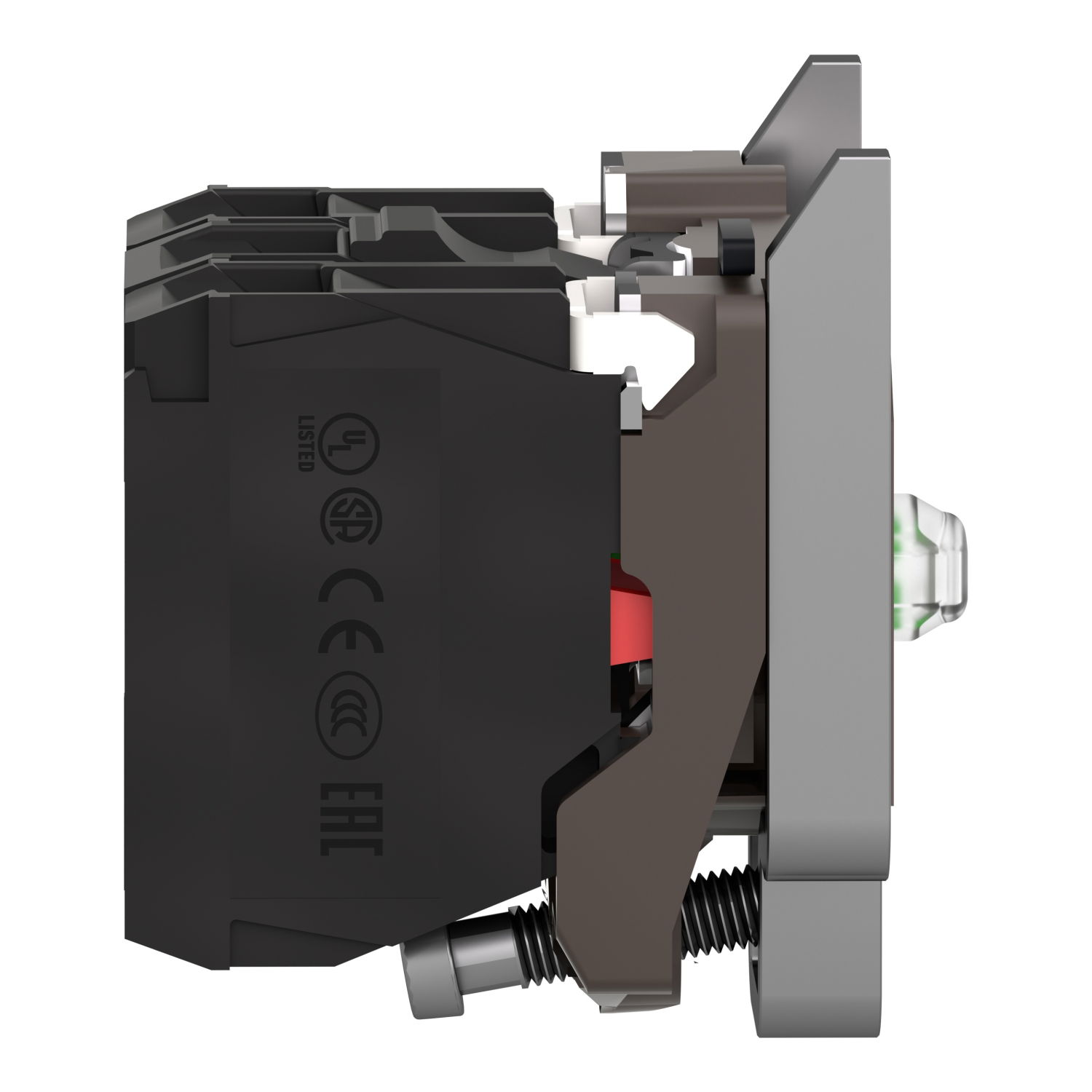

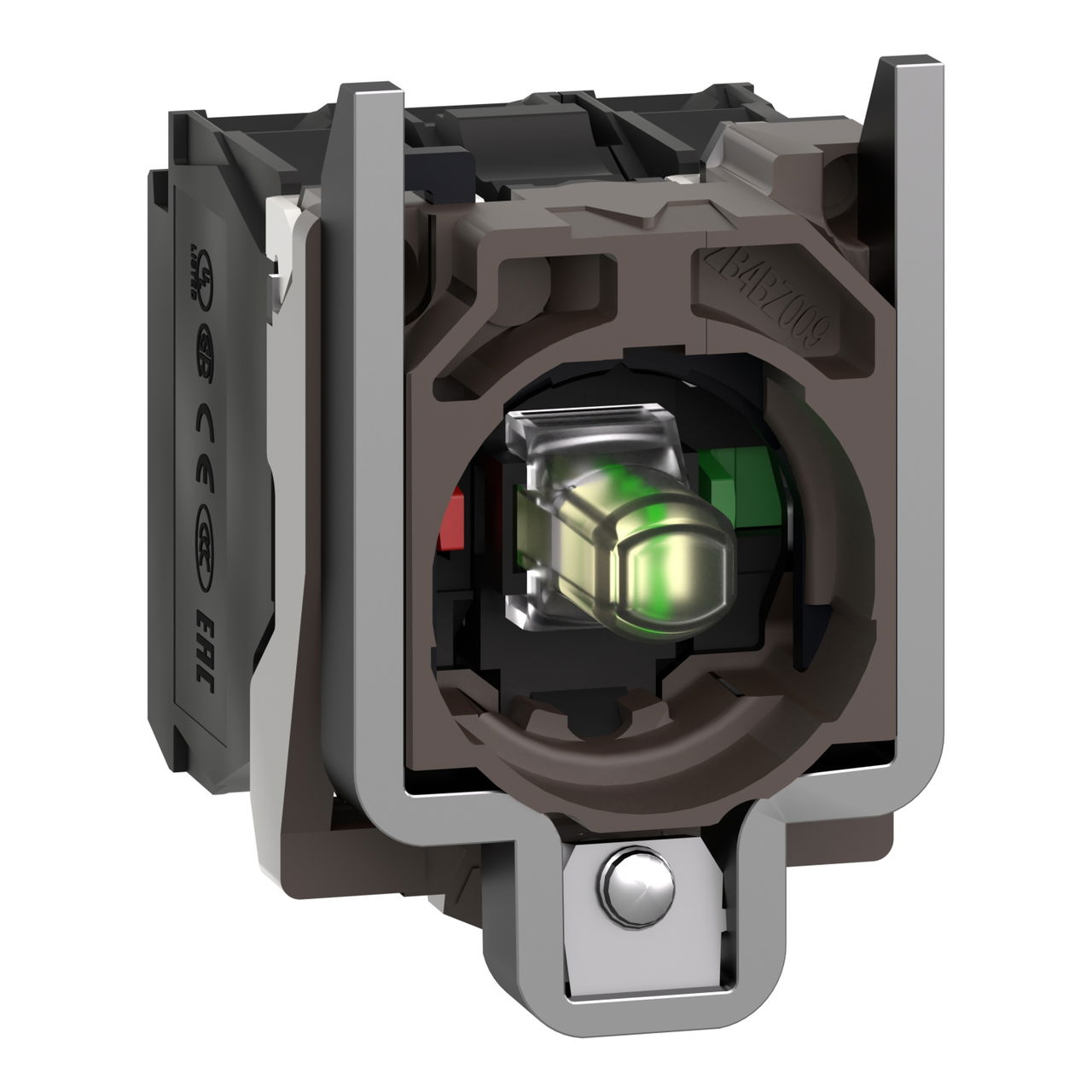

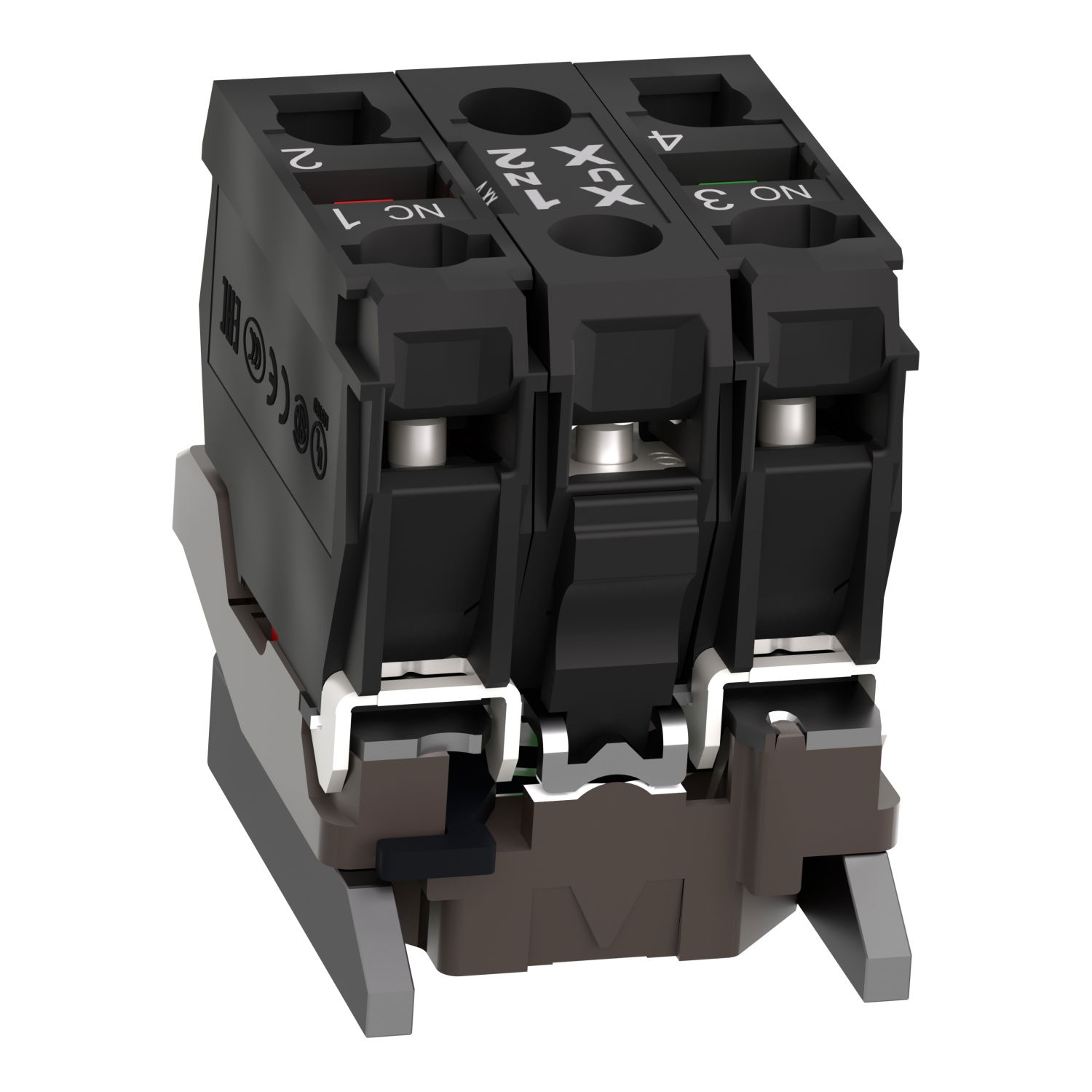

Complete body/contact assembly and light block, Harmony XB4, metal, universal LED, body/fixing collar, 1NO + 1NC, 24V AC DC

Link copied
SKU
EAN
GTIN
MPN

Complete body/contact assembly and light block, Harmony XB4, metal, universal LED, body/fixing collar, 1NO + 1NC, 24V AC DC by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at 6 of them. Trade prices range from £13.75 to £22.07 excl. VAT. Voltimum+ members earn 3 points per unit.

This Harmony XB4, light block with body/fixing collar is white, operates with a universal LED. It has 1 x NO + 1 x NC contacts and a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.

Voltimum+ Loyalty Programme Loyalty points: 3

Price range: £ 13.75 - £ 22.07 Excl. VAT

Categories

Switchgear Industrial Switchgear Switchgear & Circuit Protection

ETIM group

Low-voltage industrial components

Specifications

Lamp type LED
Lamp holder Other
Type of fastening Front fastening
With light source yes
Colour light source White
With integrated diode yes
Rated voltage Ue at DC
Transformer integrated no
Rated voltage Ue at AC 50 Hz
Connection type auxiliary circuit Screw connection

Documents

Declaration of Conformity (Sustainability)

ZB4BW0B15 REACh Regulation

Open

Instruction sheet

XB4-XB5 - Mounting, Instruction Sheet

Open

Product data sheet

Open

Catalog

Discover the Harmony XB4 metal Control and signaling units catalog

Open

Declaration of Conformity (Sustainability)

ZB4BW0B15 EU RoHS Directive

Open

Declaration of conformity

XB4B, XB5A/D/E/K, Control and signaling units, XD4P, XD5P Joystick Controllers

Open

Environmental Disclosure

Complete Illuminated Metalic Pushbutton, Product Environmental Profile

Open

Circularity Profile

Complete Illuminated Metalic Pushbutton, Product End of Life Instructions

Open
