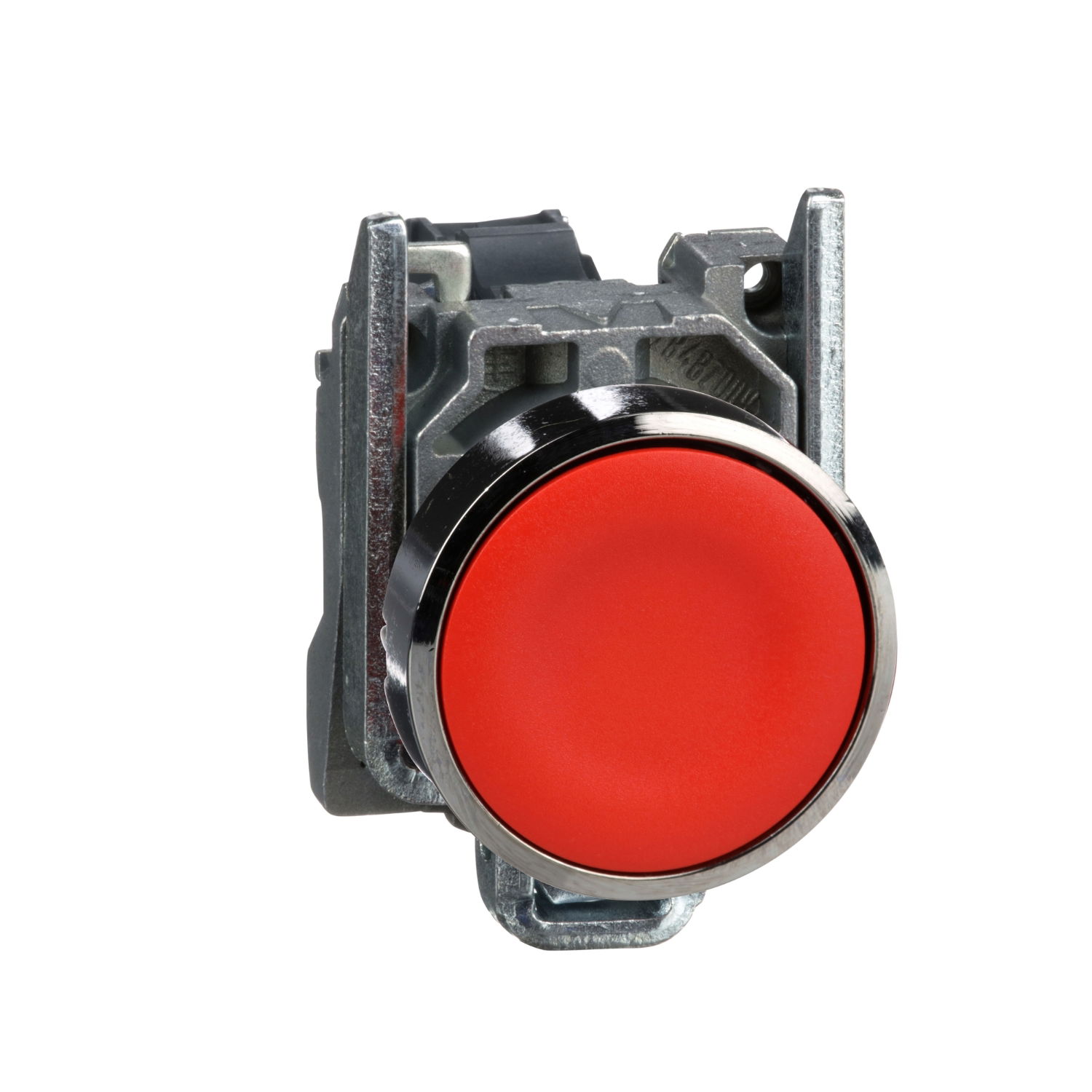

Push button, metal, flush, red, Ø22, spring return, unmarked, 1NC

Push button, metal, flush, red, Ø22, spring return, unmarked, 1NC – Image 2 of 11

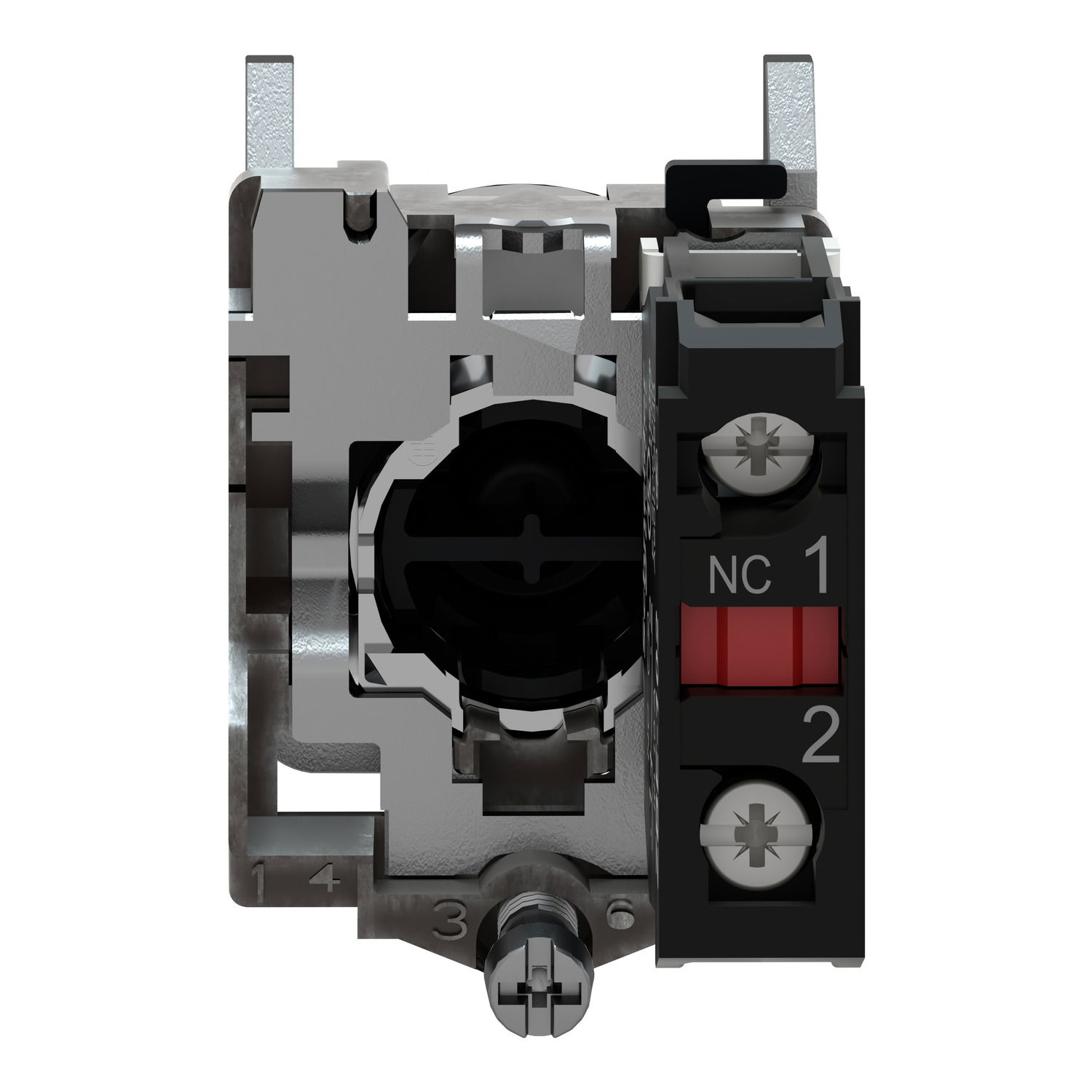

Push button, metal, flush, red, Ø22, spring return, unmarked, 1NC – Image 3 of 11

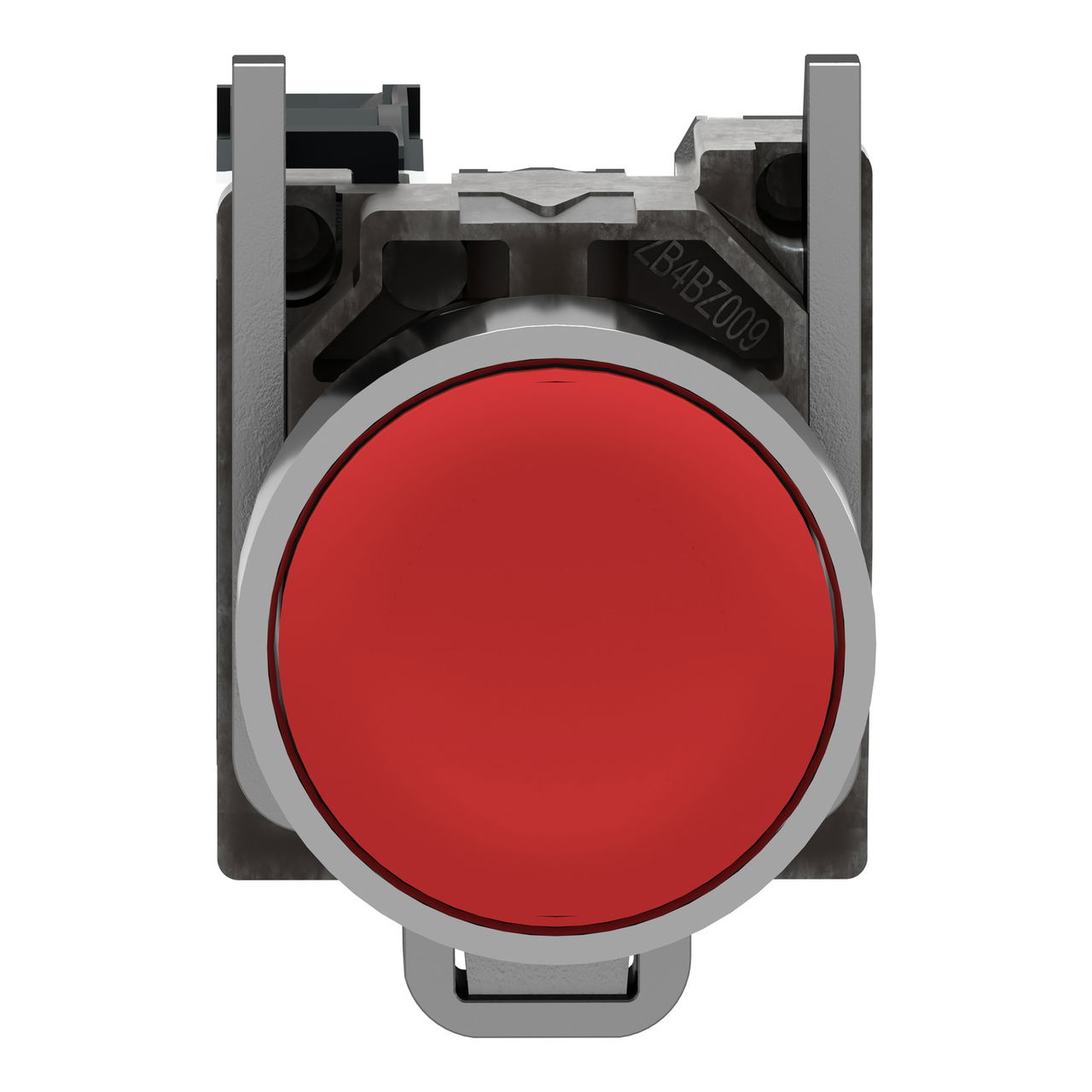

Push button, metal, flush, red, Ø22, spring return, unmarked, 1NC – Image 4 of 11

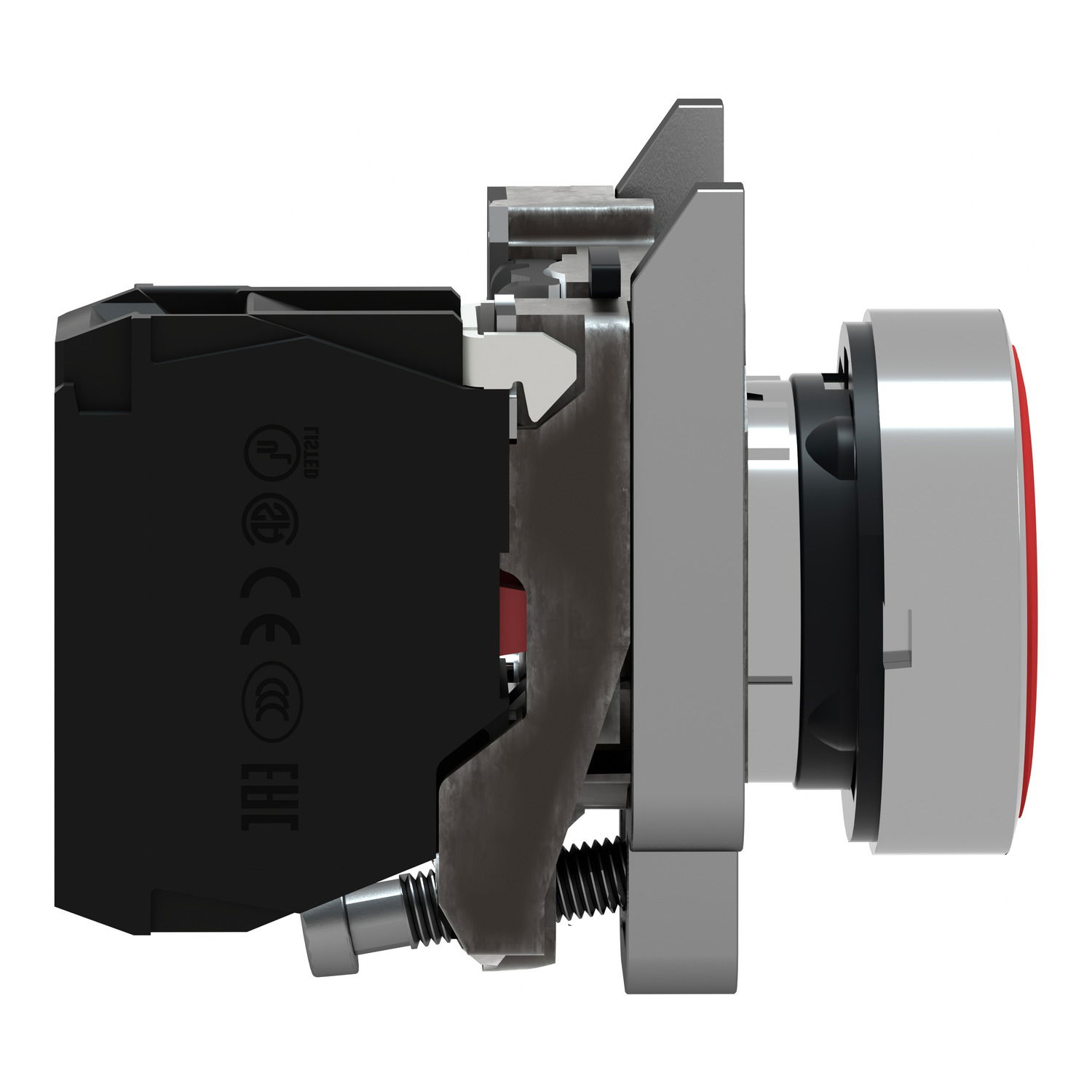

Push button, metal, flush, red, Ø22, spring return, unmarked, 1NC – Image 5 of 11

Push button, metal, flush, red, Ø22, spring return, unmarked, 1NC – Image 6 of 11

Push button, metal, flush, red, Ø22, spring return, unmarked, 1NC – Image 7 of 11

Push button, metal, flush, red, Ø22, spring return, unmarked, 1NC – Image 8 of 11

Push button, metal, flush, red, Ø22, spring return, unmarked, 1NC – Image 9 of 11

Push button, metal, flush, red, Ø22, spring return, unmarked, 1NC – Image 10 of 11

Push button, metal, flush, red, Ø22, spring return, unmarked, 1NC – Image 11 of 11

1 / 11

Popularity Top 10%

Among the top 10% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

Push button, metal, flush, red, Ø22, spring return, unmarked, 1NC

Link copied

SKU
EAN
GTIN
MPN

Push button, metal, flush, red, Ø22, spring return, unmarked, 1NC by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at 6 of them. Trade prices range from £8.73 to £15.15 excl. VAT. Voltimum+ members earn 2 points per unit.

This Harmony XB4 modular red push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Loyalty points: 2

Price range: £ 8.73 - £ 15.15 Excl. VAT

ETIM group

Low-voltage industrial components

Specifications

Transparent	no
Colour button	Red
Hole diameter	22.5 mm
Spring-return	yes
Width opening	-
Height opening	-
Type of button	Flat
With front ring	yes
Colour front ring	Chrome
Material front ring	Metal
Supply voltage lamp	-
Suitable for lighting	no
Construction type lens	Round
Degree of protection (IP)	IP66
Degree of protection (NEMA)	4X
Number of command positions	1
Switching function latching	no
Type of electric connection	Screw connection
Number of contacts as change-over contact	0
Number of contacts as normally open contact	0
Number of contacts as normally closed contact	1

Documents

Declaration of Conformity (Sustainability)

XB4BA42 REACh Regulation
