TeSys D contactor - 3P - <= 440 V - 18 A AC-3 - 24...60 V AC/DC coil
TeSys D contactor - 3P - <= 440 V - 18 A AC-3 - 24...60 V AC/DC coil by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, RS Components and 1 more. It is currently in stock at 2 of them. Trade prices range from £108.21 to £109.29 excl. VAT. Voltimum+ members earn 15 points per unit.

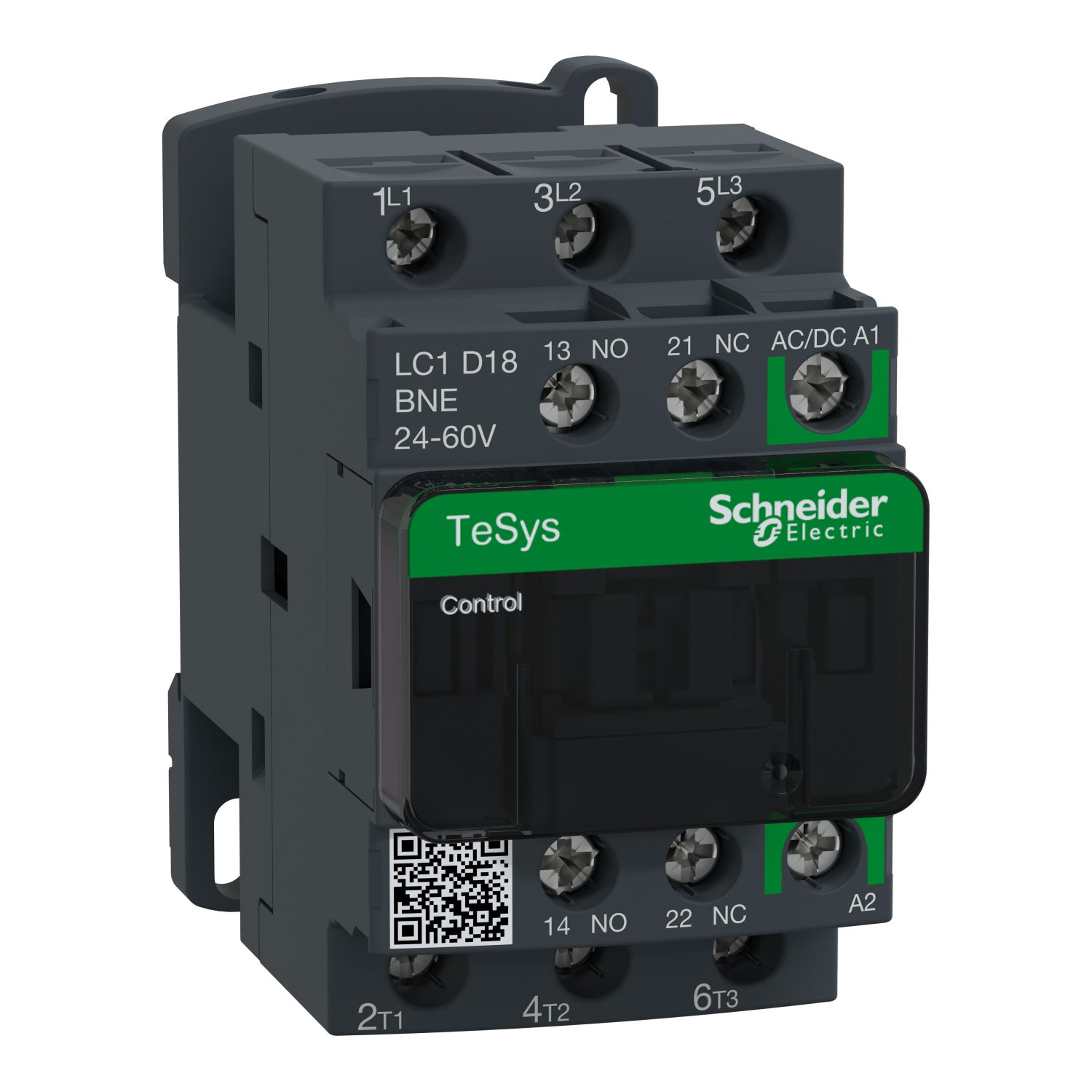

TeSys D contactor, 3 poles (3NO), for motor control applications up to 18A/690V AC-3/3e (7.5kW@400V). It provides a low consumption 24-60V AC/DC coil with electronic control for direct PLC output connection, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Product identifiers
SKU: LC1D18BNE
EAN: 3606480987694
GTIN: 3606480987694
MPN: LC1D18BNE
Loyalty points:
15
Price range: £ 108.21 - £ 109.29 Excl. VAT
ETIM group
Specifications
| Depth | 86 mm |
| Width | 45 mm |
| Height | 77 mm |
| Modular version | no |
| Operating voltage AC 50 Hz | |
| Operating voltage AC 60 Hz | |
| Rated operation power NEMA | - |
| Voltage type for actuating | AC/DC |
