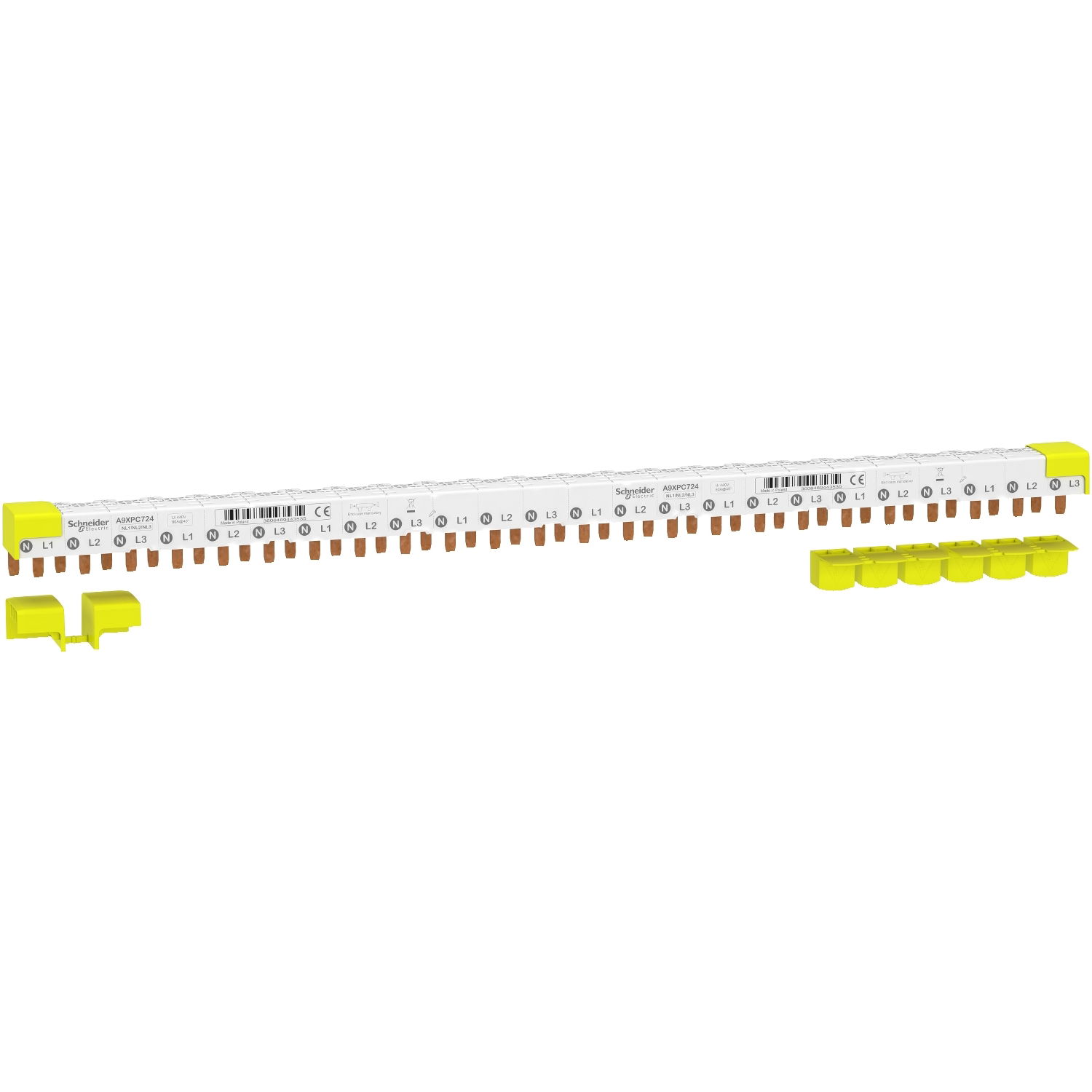

Comb busbar, Acti9, 3P+N balanced, 9 mm pitch, 24 modules, 80 A

This Acti9 product is a cuttable horizontal comb busbar for Acti9 iC40. It is dedicated to (Neutral, Line) installations. The distribution type is (N, L1), (N, L2), (N, L3). It is a set of 1 product. It is suitable for 8 devices with 3P+N pole and without associated auxiliaries. The length is 434mm. The total number of modules of 18mm is 24. The Ie rated operational current at 40°C is 80A. The Ui rated insulation voltage is 400VAC. The Ue rated operational voltage is 230VAC (phase/neutral) and 400V (phase/phase). The color of the device is white (RAL 9003). The pollution degree is 3. The degree of protection is IP20 with end-pieces and tooth covers. According to IEC 60695-2-1 standard, the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC 61439-1 standards.
