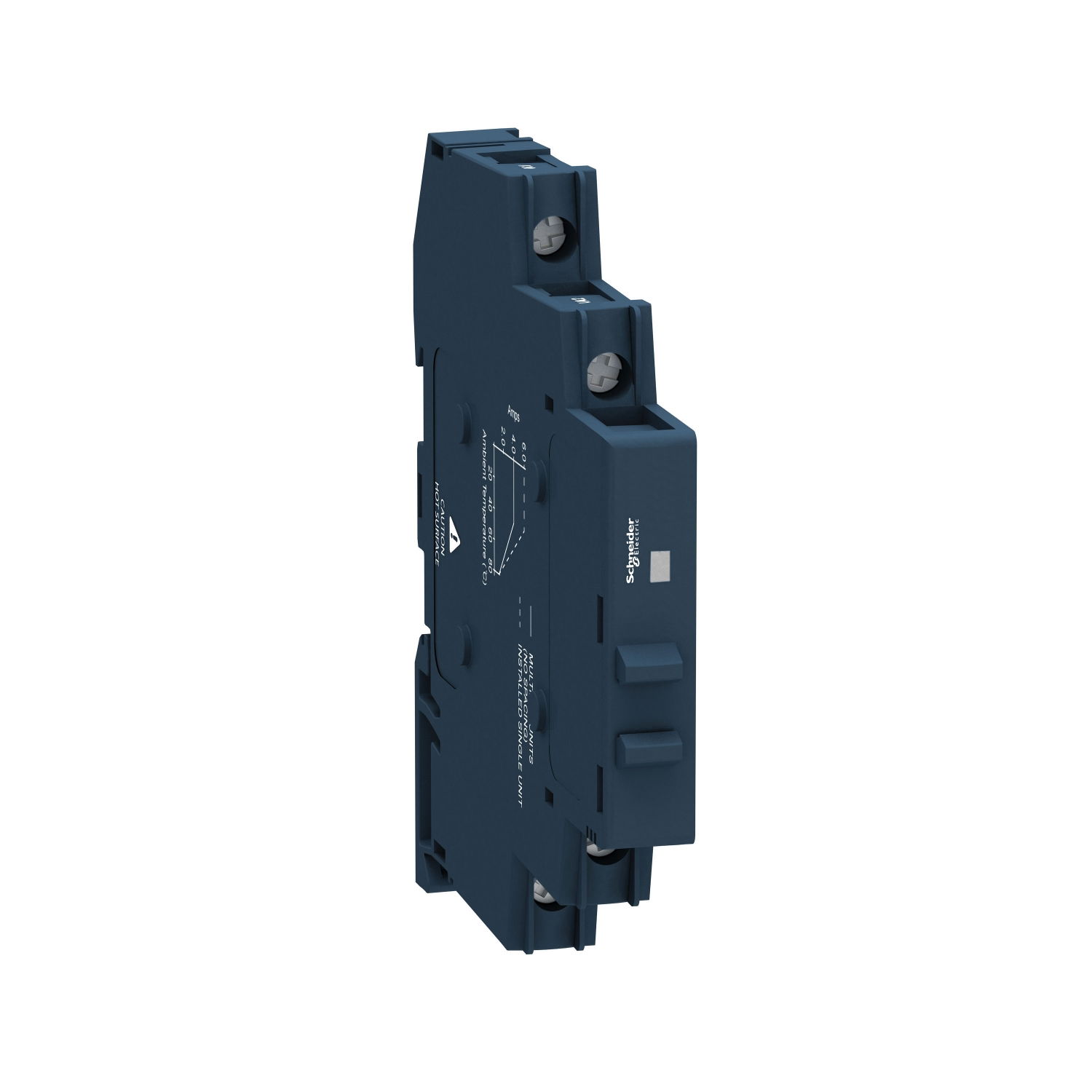

Solid state modular relay, 6 A, zero voltage switching, input 4...32 V DC, output 48…600 V AC

Name: Solid state modular relay, 6 A, zero voltage switching, input 4...32 V DC, output 48…600 V AC
Brand: Schneider Electric
SKU: SSM1A36BD
Availability: InStock

Solid state modular relay, 6 A, zero voltage switching, input 4...32 V DC, output 48…600 V AC by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Farnell. Trade prices range from £40.75 to £41.18 excl. VAT. Voltimum+ members earn 6 points per unit.

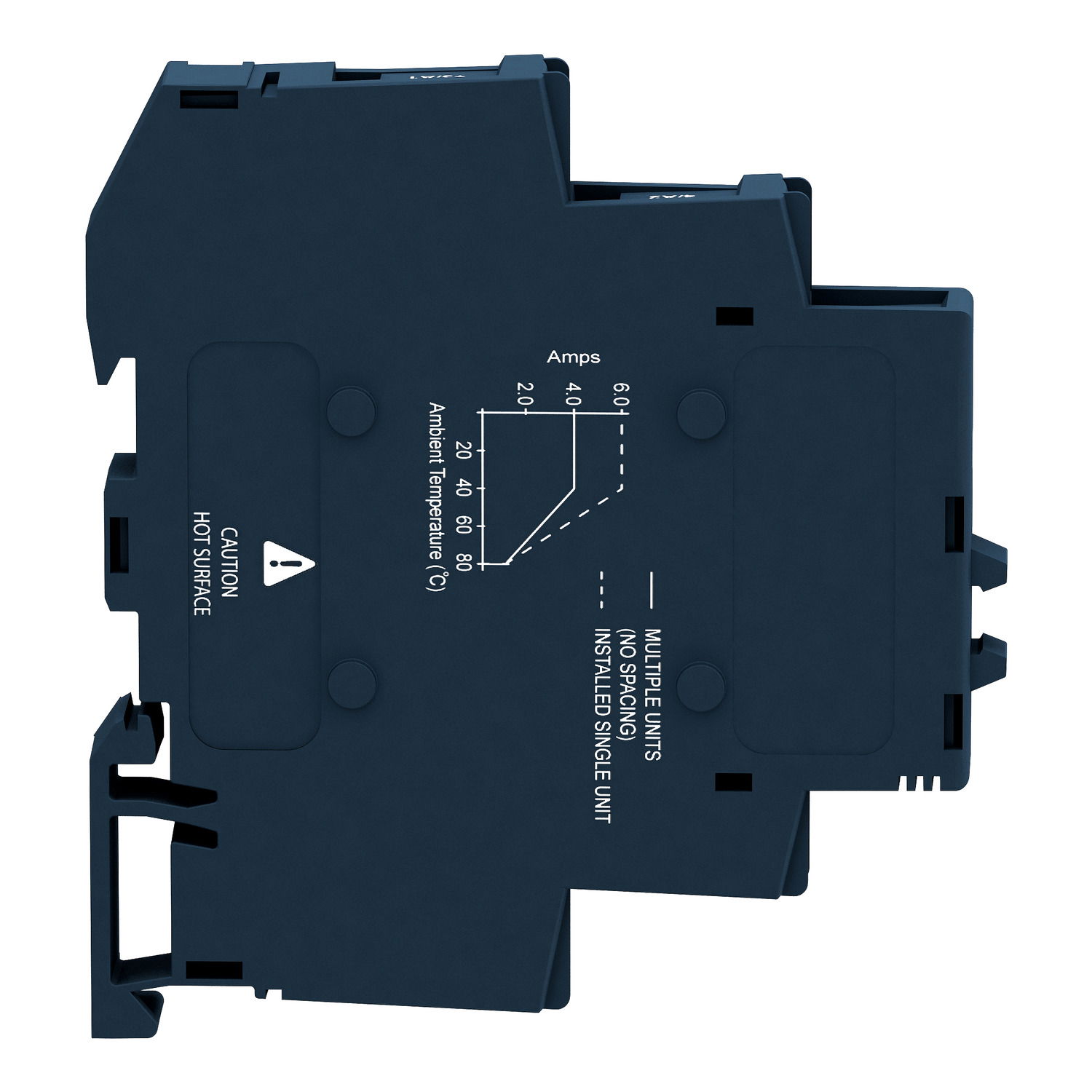

This Harmony SSM solid state modular DIN rail single-phase relay is rated 6A, is controlled with a 4V to 32V DC input, has a rated load voltage of 48V to 600V AC with zero voltage switching, ideal for resistive loads. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Product identifiers

SKU: SSM1A36BD

EAN: 3606480579400

GTIN: 3606480579400

MPN: SSM1A36BD

Loyalty points: 6

Price range: £ 40.75 - £ 41.18 Excl. VAT

Specifications

Depth	-
Model	-
Width	-
Height	-
Modular version	yes
Number of phases	1
With LED indication	-
Complete with socket	-
Operating voltage DC
With detachable clamps	-
Type of switch function	-
Degree of protection (IP)	-
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Switching at zero-crossing	no
Voltage type for actuating	AC/DC
Type of electric connection	-
Rated control supply voltage DC
Voltage type (operating voltage)	-
Rated operation current Ie at AC-1	6 A
Rated operation current Ie at AC-3	6 A
Rated operation current Ie at AC-51	6 A
Rated operation current Ie at AC-53a	6 A
Rated operation current Ie at AC-53b	6 A
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Relay technology category according to IEC 61810-7	-
