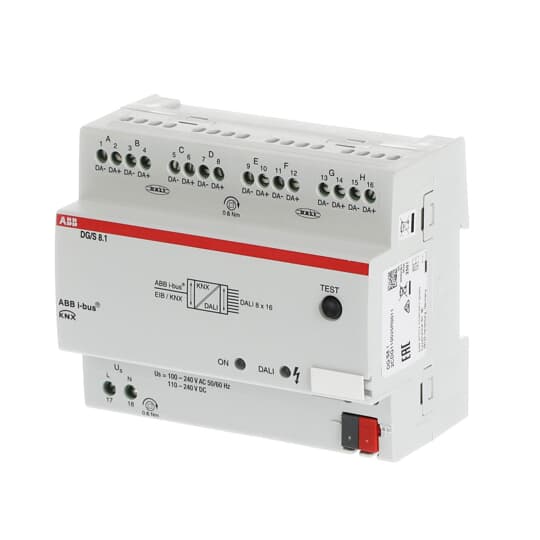

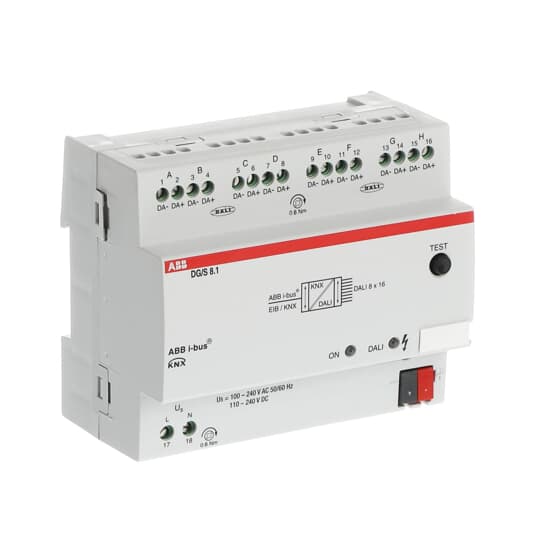

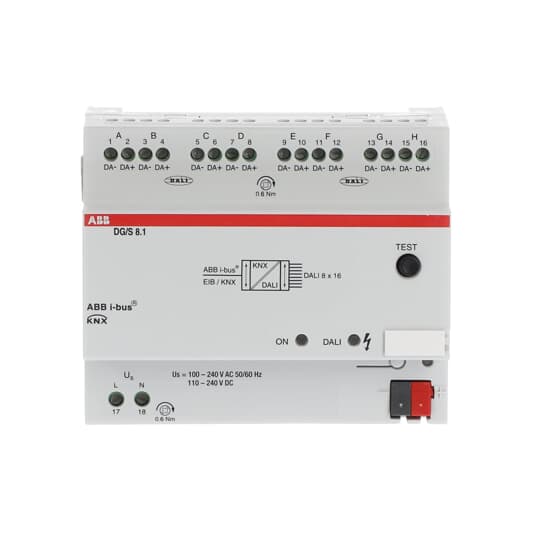

DG/S8.1 DALI Gateway, 8-fold, MDRC

Link copied
SKU
EAN
GTIN
MPN

DG/S8.1 DALI Gateway, 8-fold, MDRC by ABB is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £642.30 excl. VAT. Voltimum+ members earn 341 points per unit.

Single-Master DALI Controller DALI (EN62386) trademarked. For controlling up to 128 standard DALI devices (DT0) acc. DALI or DALI-2. There are 8 separate, independent DALI outputs/channels available. Up to 16 DALI devices can be connected per channel. The DALI power supply is integrated in the gateway. The functions of switching, dimming, set values and fault indication for lamps and electronic ballasts are available for each output. It is possible to set the lamp burn-in time and 16 light scenes. Commissioning is simplified as no addressing or commissioning of the DALI devices is necessary.

Voltimum+ Loyalty Programme Loyalty points: 341

Price: £ 642.30 Excl. VAT

Specifications

Model -
Protocol -
Updateable yes
Web-Server no
IR interface no
Voltage type -
Visualization no
Bus system KNX yes
Mounting method DRA (DIN-rail adapter)
Operating voltage
Power consumption -
Provider dependent no
With LED indication yes
Degree of protection (IP) IP20
Radio frequency bidirectional no
Bus system KNX-RF (Radio Frequency) no

Documents

Deeplink product page

Open

Deeplink REACH

9AKK108472A2583_en_A_RoHS Exemption Information.pdf

Open

Dimensioned drawing

9AKK107680A8866.eps

Open

Instructions for use

DGS_81_MBA_7S_V1-1_GHQ6307093P0002.pdf

Open

Product data sheet

Open

Declaration RoHS

9AKK108471A7754_en_B_Declaration regarding the REACH-Regulation.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

DGS_81_CE-ROHS_XX_V1-4_2CDK507028D2701.pdf

Open
