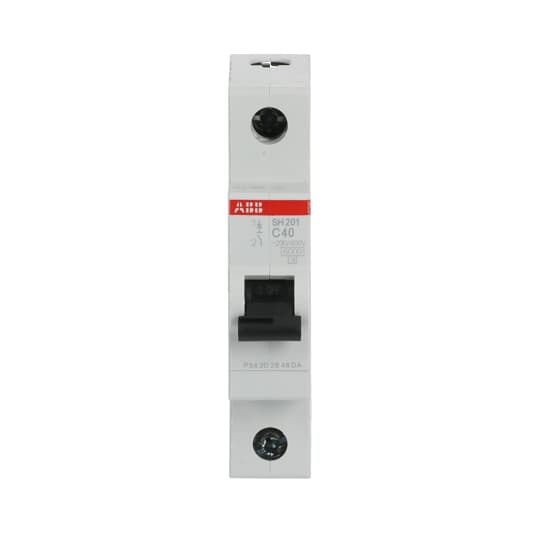

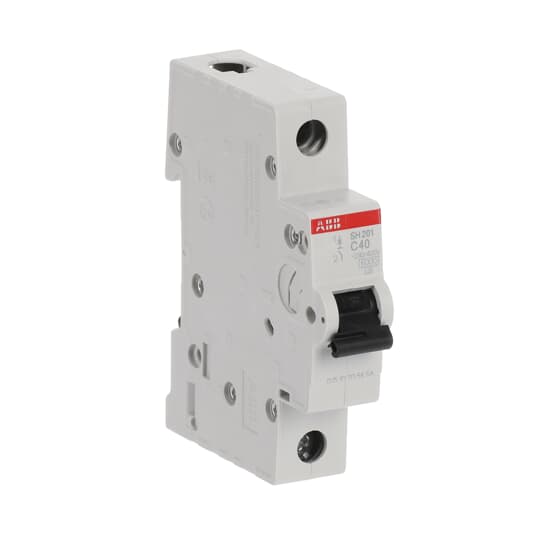

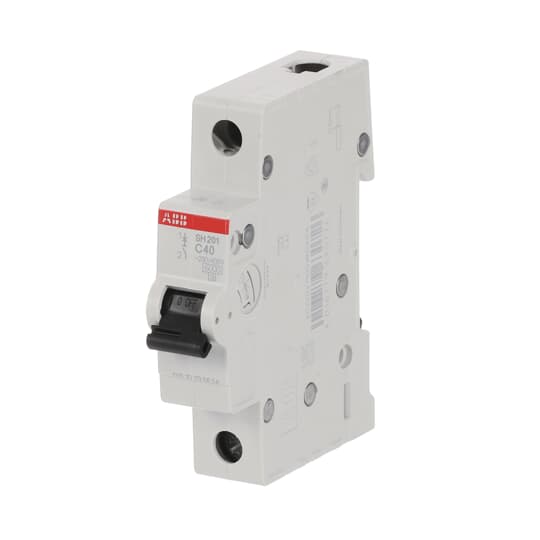

Miniature Circuit Breaker - SH200 - 1P - 40 A - C - (AC) 6 kA
1 / 3
Miniature Circuit Breaker - SH200 - 1P - 40 A - C - (AC) 6 kA
Miniature Circuit Breaker - SH200 - 1P - 40 A - C - (AC) 6 kA by ABB is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at all of them. Trade prices range from £14.75 to £14.79 excl. VAT. Voltimum+ members earn 8 points per unit.
Compact Home SH200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C),
configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 40 A). All MCBs of the product range SH200 comply with IEC/EN 60898-1, allowing the use for residential applications.
Product identifiers
SKU: 2CDS211001R0404
EAN: 4016779630726
GTIN: 4016779630726
MPN: SH201-C40
Loyalty points:
8
Price range: £ 14.75 - £ 14.79 Excl. VAT
Categories
Specifications
| Frequency | |
| Power loss | 4.8 |
| Voltage type | AC |
| Rated current | 40 |
| Rated voltage | 230 |
| Built-in depth | 69 |
| Explosion-proof | no |
| Pollution degree | 2 |
