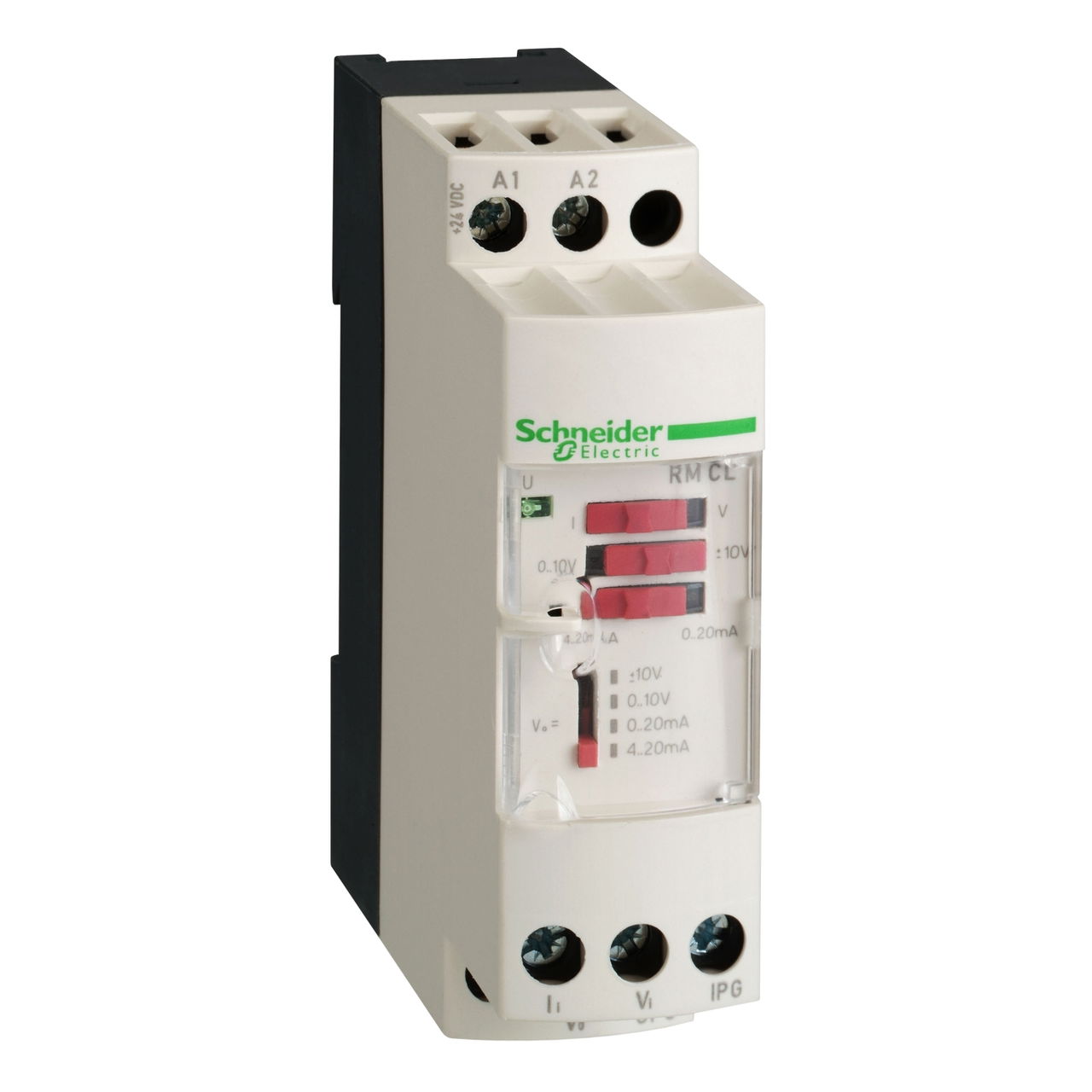

Isoled Analog Converter - 0..20 mA - for Harmony Analog

Link copied
SKU
EAN
GTIN
MPN

Isoled Analog Converter - 0..20 mA - for Harmony Analog by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £193.11 to £197.96 excl. VAT. Voltimum+ members earn 27 points per unit.

This voltage/current converter is part of the range of Harmony Analog. It allows conversion of the most common signals. Its supply voltage is 24V DC, isolated. It features four inputs with voltage/current range of 0V to 10V, +/- 10V, 0mA to 20mA, and 4mA to 20mA. It has four outputs with a switchable voltage/current range of 0V to 10V, +/- 10V, 0mA to 20mA, and 4mA to 20mA. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. 0 It weighs 0.120Kg. 0 0 Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 0 0 Quick and intuitive setting, easy to use with fixed input and output values according to the market needs. The settings are secure with sealable protective cover. 0

Voltimum+ Loyalty Programme Loyalty points: 27

Price range: £ 193.11 - £ 197.96 Excl. VAT

Specifications

Model Through-feed current converter
Calibrated yes
Snap mounting yes
Width opening
Accuracy class -
Height opening
Opening diameter -
With copper rail yes
Secondary connection Screw connection
Rated secondary current 0.02 A
Number of primary inputs 1
Rated secondary apparent power -

Documents

Declaration of Conformity (Sustainability)

RMCL55BD REACh Regulation

Open

Instruction sheet

RM... Harmony Analog Interfaces, Instruction Sheet (EN)

Open

Product data sheet

Open

Catalog

Harmony Analog - Converters for thermocouple - Converters for Pt100 probe - Voltage current converters

Open

Declaration of Conformity (Sustainability)

RMCL55BD EU RoHS Directive

Open

Declaration of conformity

Zelio Analog Converters-RMPT RMT RMC

Open

Environmental Disclosure

Harmony Signal Conditioner ( Control & Analog Relay)

Open

Circularity Profile

Harmony Signal Conditioner ( Control & Analog Relay)

Open
