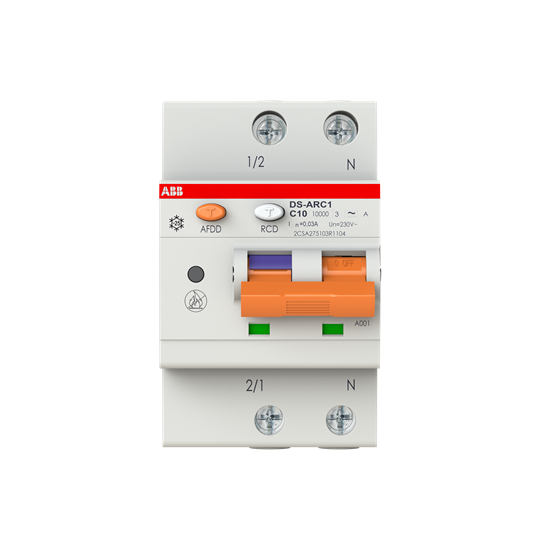

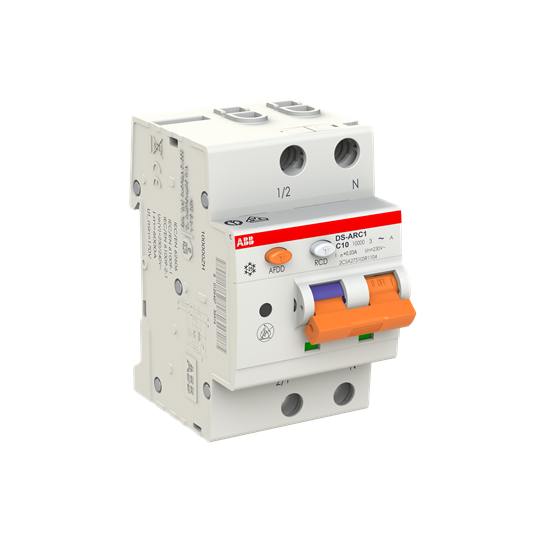

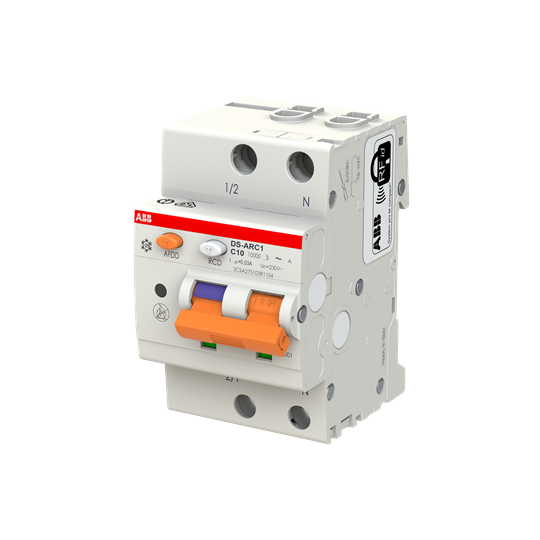

DS-ARC1 M C10 A30 Arc fault detection device integrated with RCBO

Name: DS-ARC1 M C10 A30 Arc fault detection device integrated with RCBO
Brand: ABB
SKU: 2CSA275103R1104
Availability: InStock

DS-ARC1 M C10 A30 Arc fault detection device integrated with RCBO by ABB is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £290.22 excl. VAT. Voltimum+ members earn 154 points per unit.

DS-ARC1 M is a 1P+N arc fault detection device (AFDD) with an integrated RCBO in three modules, for the protection against earth arc faults, parallel arc faults, series arc faults, overvolatge, short-circuit currents, overload, earth fault currents

Product identifiers

SKU: 2CSA275103R1104

EAN: 8012542733416

GTIN: 8012542733416

MPN: DS-ARC1 M C10 A30

Loyalty points: 154

Price: £ 290.22 Excl. VAT

Specifications

Frequency	50
Rated current	10
Rated voltage	240
Built-in depth	69
Number of poles	2
Pollution degree	2
Rated fault current	0.03
Leakage current type	A
Over voltage category	3
Current limiting class	3
Release characteristic	C
Degree of protection (IP)	-
Rated voltage auxiliary device	-
Width in number of modular spacings	3
Rated switch current auxiliary device	-
Concurrently switching neutral conductor	yes
Control voltage type auxiliary equipment	-
Additional equipment attached at delivery	-
Rated short-circuit breaking capacity according to EN 61009	10
Rated short-circuit breaking capacity according to IEC 60947-2	10
