Schneider Electric

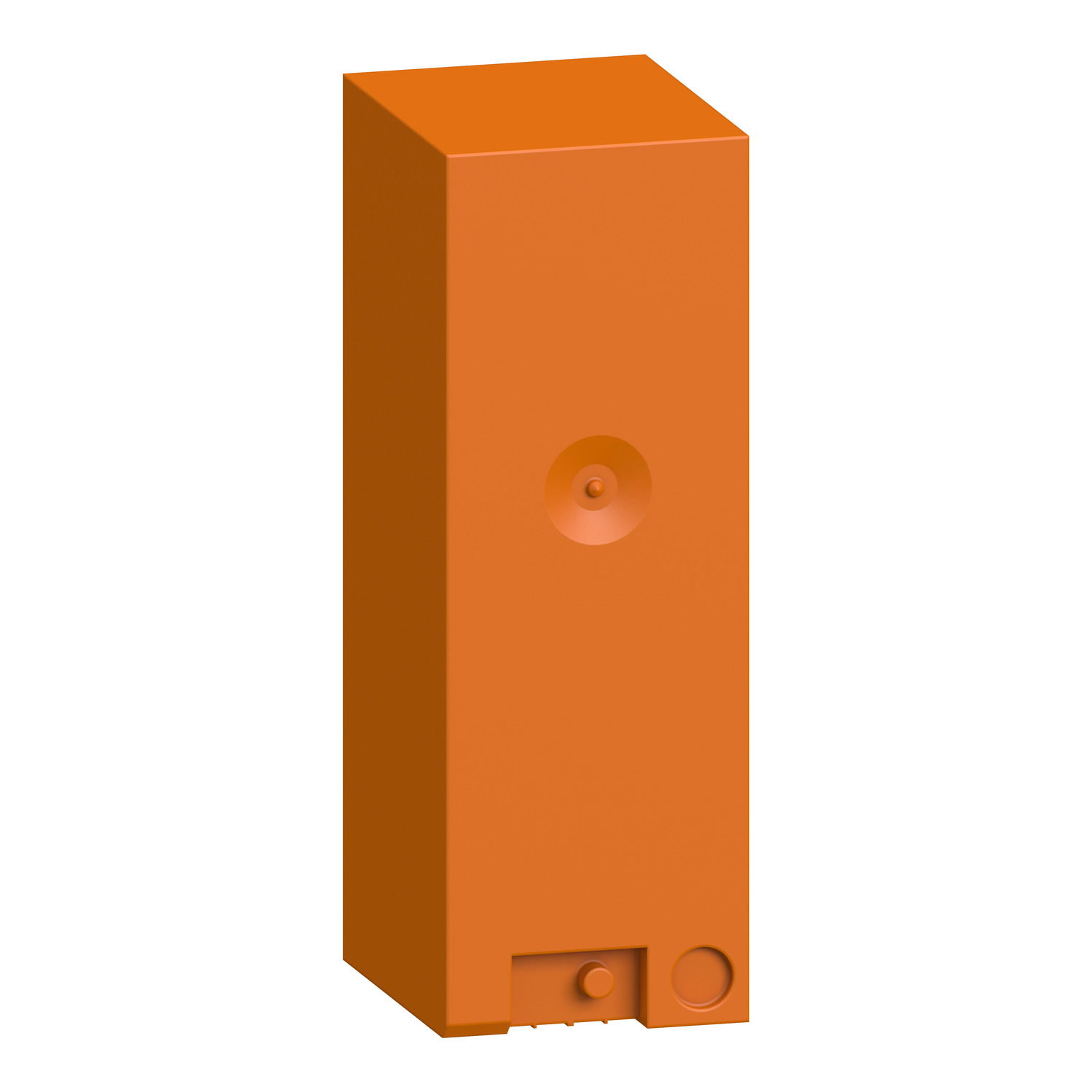

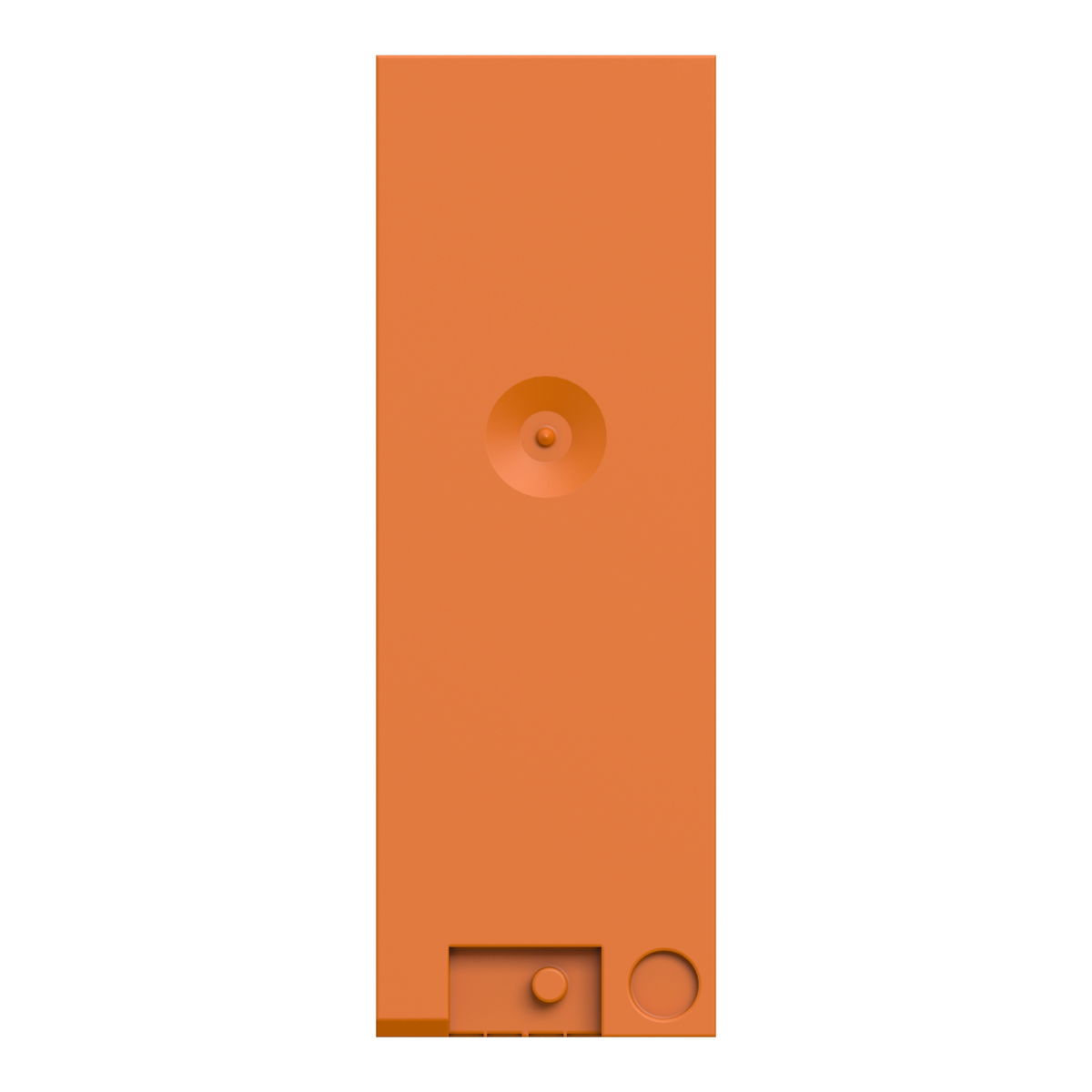

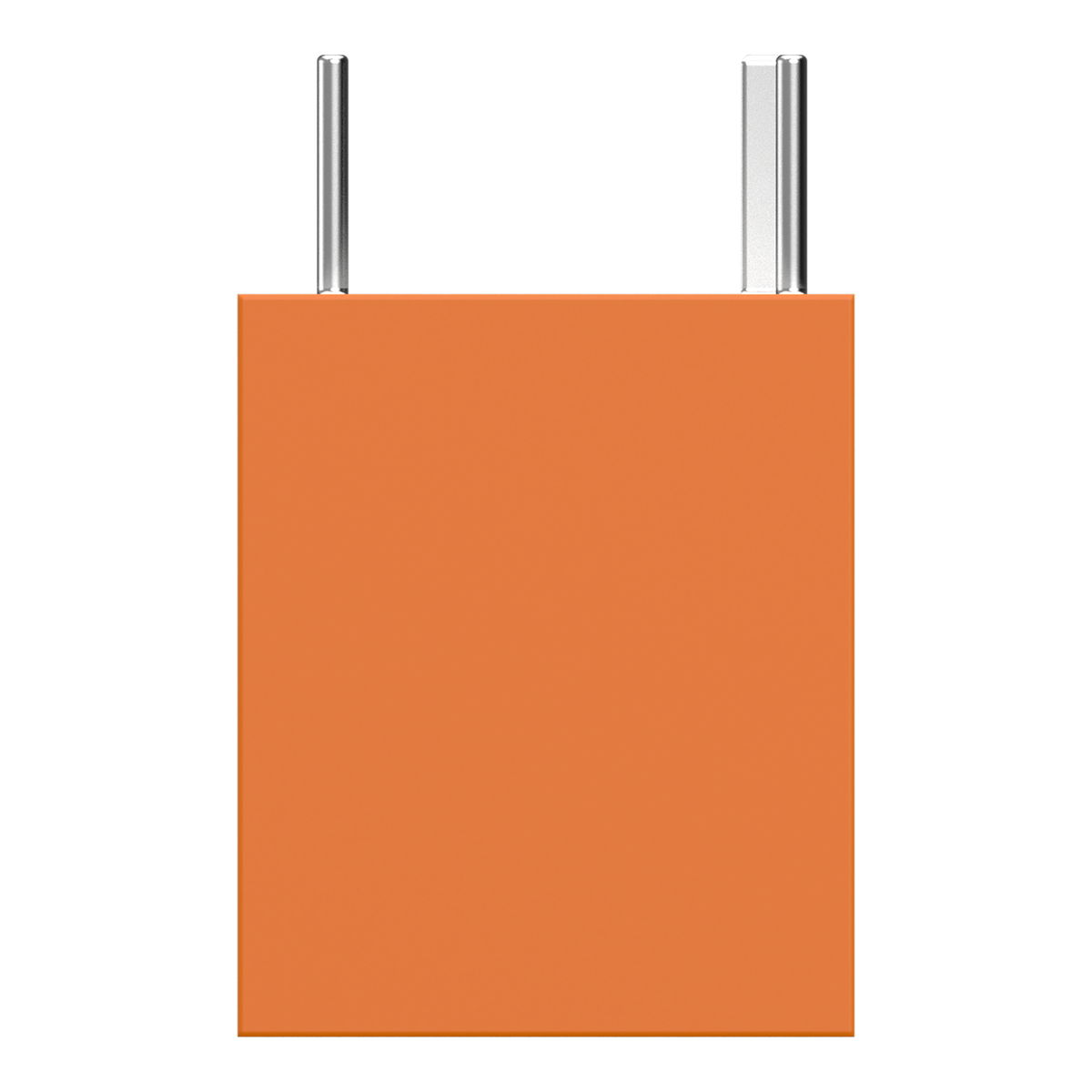

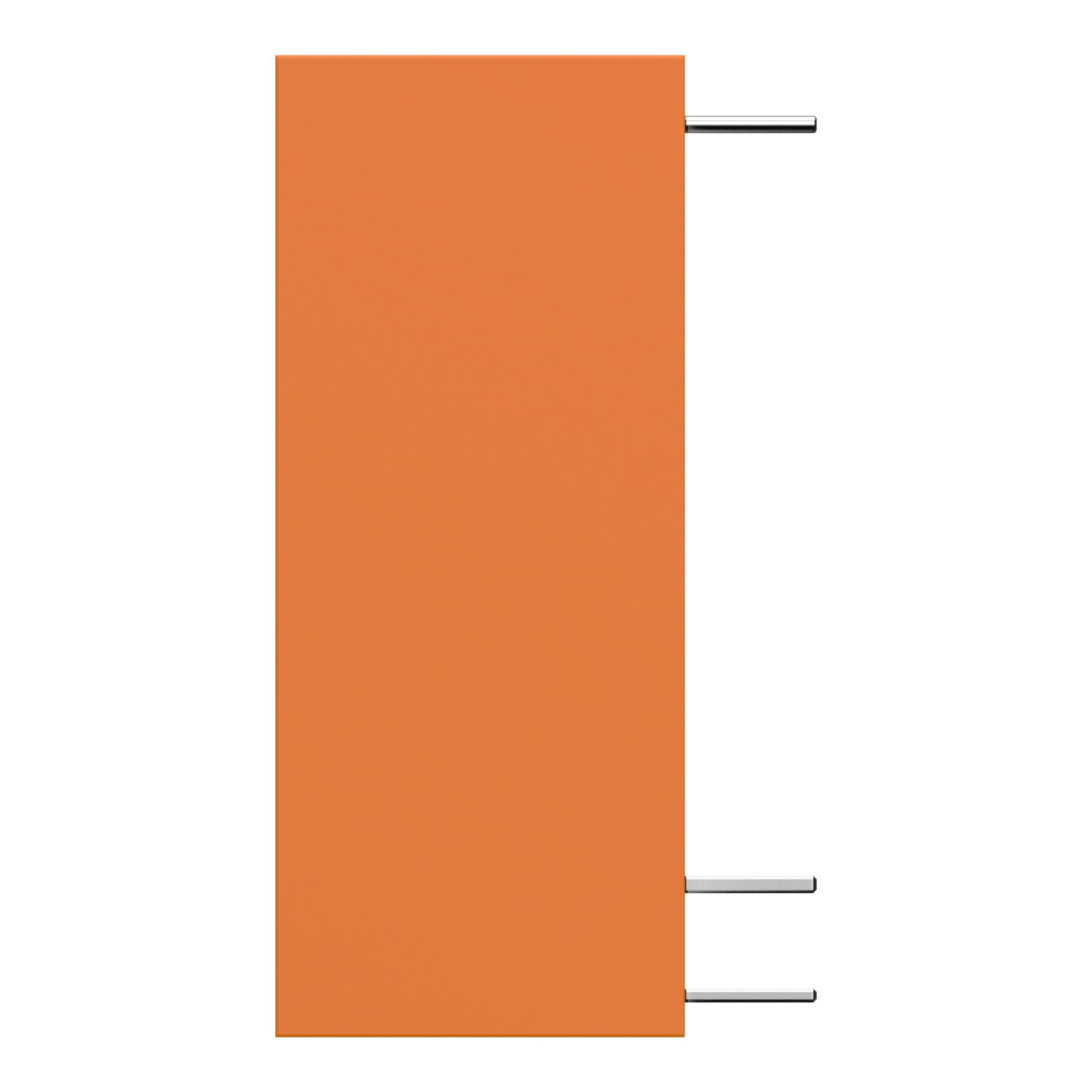

Plug-in electromechanical relay - 10 mm - 24 V DC - 1 NO

Link copied
SKU
EAN
GTIN
MPN

Plug-in electromechanical relay - 10 mm - 24 V DC - 1 NO by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia and RS Components. It is currently in stock at 2 of them. Trade prices range from £6.40 to £10.43 excl. VAT. Voltimum+ members earn 1 point per unit.

This product is part of the Modicon ABE7 range, an offer of plug-in electromechanical relays. The plug-in power relay has 1 NO contact with 5A conventional free air thermal current. It is an electromechanical relay with a control circuit voltage of 24V. It offers electrical durability of about 5,00,000 cycles and mechanical durability of about 20 million cycles. The width of this product is 10mm. It weighs 0.008kg. It is suitable for all types of industrial applications. It is compatible with ABE7P16T212, ABE7P16T214, ABE7P16T210, ABE7P16T230E, ABE7R16T210, ABE7R16T212, ABE7P16T215 and ABE7P16T230. It is sold in a set of 4. The Modicon ABE7 means greater simplicity to rationalize wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Voltimum+ Loyalty Programme Loyalty points: 1

Price range: £ 6.40 - £ 10.43 Excl. VAT

Categories

Relays Electronic Components

ETIM group

Devices for distribution board-/surface mounting

Specifications

Function Partially electronic
Rated current 5 A
Built-in depth 55 mm
Supply voltage
Mounting method DIN rail
Control voltage 1
Control voltage 2
Type of control voltage 1 AC/DC
Max. load fluorescent lamp -
Frequency control voltage 2
Voltage type (supply voltage) AC/DC
Max. switching current (cos phi = 0.6) -
Number of contacts as change-over contact 0
Number of contacts as normally closed contact 0

Documents

Declaration of Conformity (Sustainability)

ABR7S21 REACh Regulation

Open

Instruction sheet

ABE7P16T2... Sub-bases for solid state and/or electromechanical output relays, plug-in

Open

Product data sheet

Open

Catalog

Modicon ABE7 IP20 connection sub-bases, Modicon ABE9 IP67 passive splitter boxes

Open

Declaration of Conformity (Sustainability)

ABR7S21 EU RoHS Directive

Open

Declaration of conformity

NHA4191010.xx_DeclarationOfConformity_ABE7_ABR7_ABS7

Open

CAD

Open

CAD

Open
