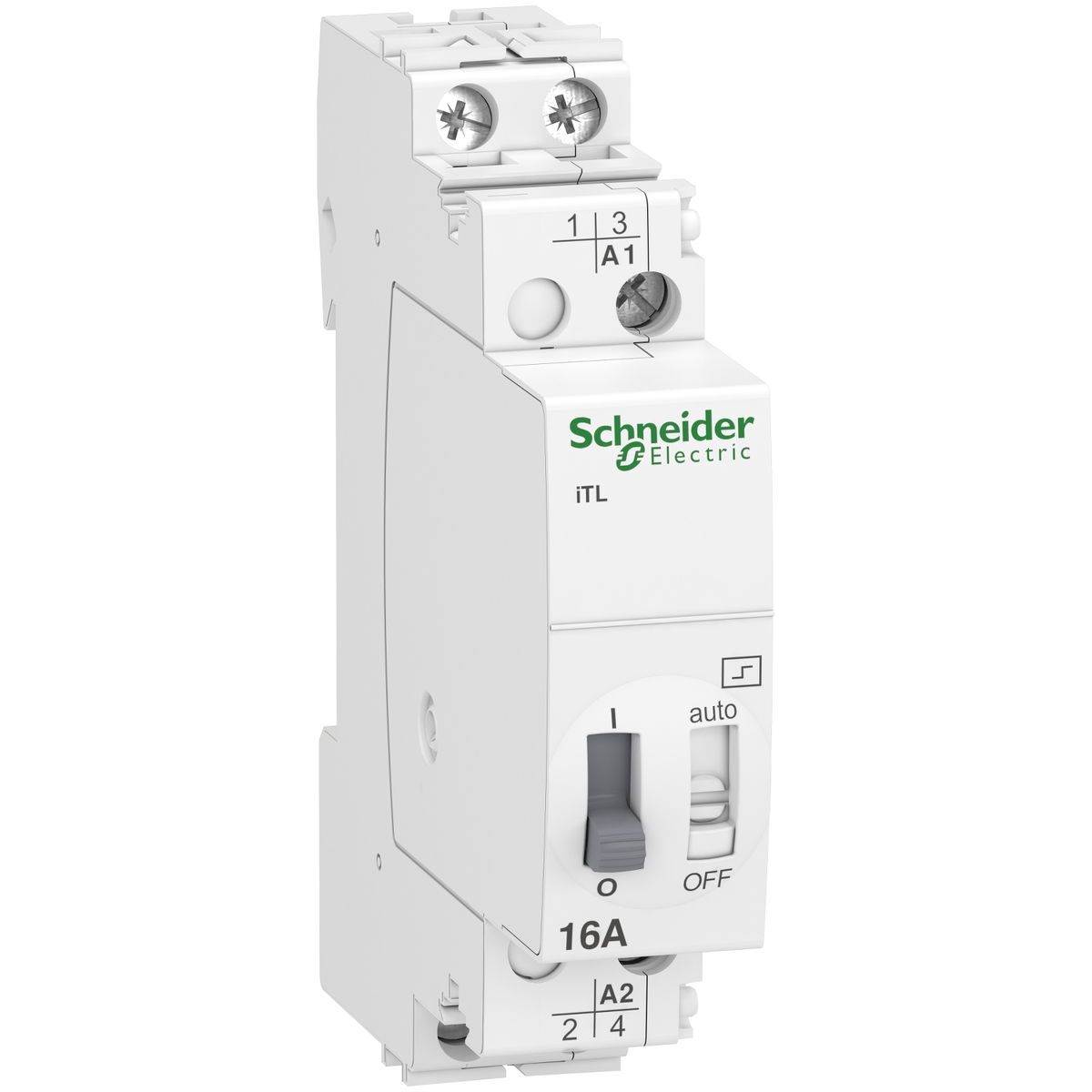

Impulse relay iTL - 2P - 2 NO - 16A - coil 110 VDC - 230...240 VAC 50/60Hz

Link copied
SKU
EAN
GTIN
MPN

Impulse relay iTL - 2P - 2 NO - 16A - coil 110 VDC - 230...240 VAC 50/60Hz by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including RS Components, Rexel Group and City Electrical Factors. It is currently in stock at all of them. Trade prices range from £49.60 to £69.10 excl. VAT. Voltimum+ members earn 8 points per unit.

This Acti9 iTL is a modular impulse relay. This 2P device has 2 normally open contacts. Rated current is 16A, 24VAC to 250VAC operating voltage and it operates with 230VAC to 240VAC or 110VDC control voltage. Electrical endurance goes up to 200000 cycles for AC-21 or 100000 cycles for AC-22. The switching frequency is 5 switching operations/minute or 100 switching operations/day. The duration of the command order should be between 50ms to 1s. It is mainly used for lighting control applications. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It is DIN rail mountable. Pollution degree is 3. Overvoltage category is IV. The dimensions are (W) 18mm x (H) 84mm x (D) 60mm. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is from -20°C to 50°C. The storage temperature is from -40°C to 70°C. This product is compliant with IEC/EN 60669-1 and IEC/EN 60669-2-2 standard.

Voltimum+ Loyalty Programme Loyalty points: 8

Price range: £ 49.60 - £ 69.10 Excl. VAT

Categories

Electronic Components Relays

ETIM group

Devices for distribution board-/surface mounting

Specifications

Function Mechanical switch
Built-in depth 43.5 mm
Supply voltage
Mounting method DIN rail
Control voltage 1
Control voltage 2
Rated switch current 16 A
Type of control voltage 1 AC
Max. load fluorescent lamp 1300 VA
Frequency control voltage 2
Suitable for manual operation yes
Width in number of modular spacings 1
Max. load fluorescent lamp (Duo circuit) 2000 VA
Number of contacts as normally open contact 2
Max. load fluorescent lamp (parallel compensated) 900 VA
