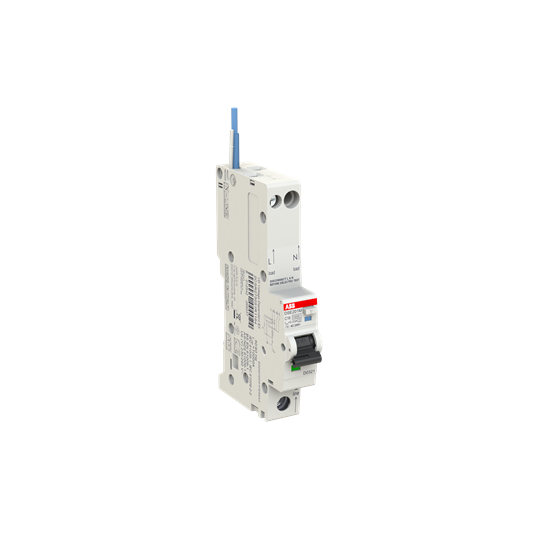

Residual Current Circuit Breaker with Overcurrent Protection DSE201 M - 1P+N - 30 mA - 16 A - C - Type AC

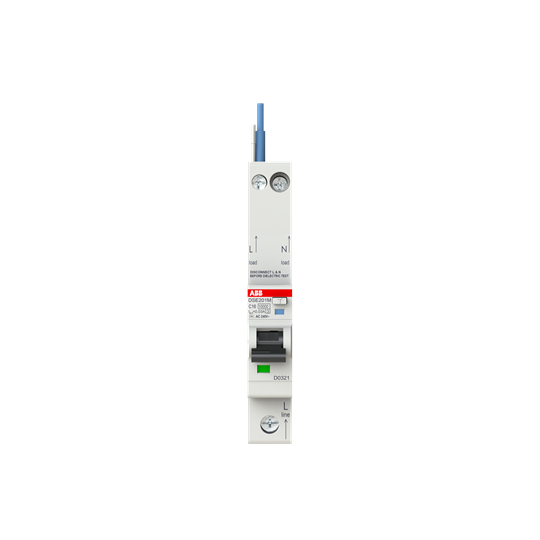

Residual Current Circuit Breaker with Overcurrent Protection DSE201 M - 1P+N - 30 mA - 16 A - C - Type AC – Image 2 of 3

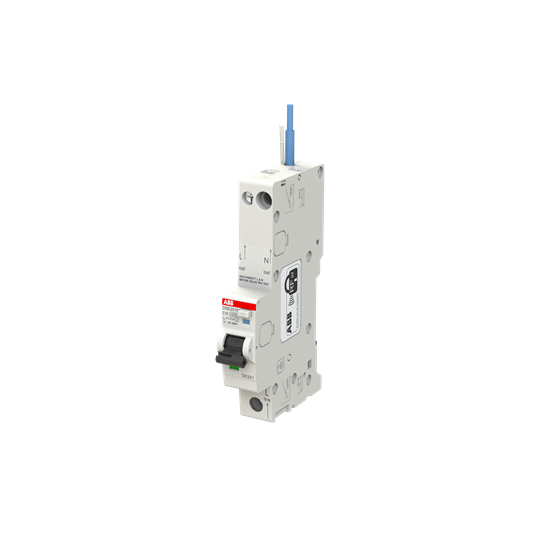

Residual Current Circuit Breaker with Overcurrent Protection DSE201 M - 1P+N - 30 mA - 16 A - C - Type AC – Image 3 of 3

1 / 3

Residual Current Circuit Breaker with Overcurrent Protection DSE201 M - 1P+N - 30 mA - 16 A - C - Type AC

Name: Residual Current Circuit Breaker with Overcurrent Protection DSE201 M - 1P+N - 30 mA - 16 A - C - Type AC
Brand: ABB
SKU: 2CSR275051R1164
Availability: InStock

Residual Current Circuit Breaker with Overcurrent Protection DSE201 M - 1P+N - 30 mA - 16 A - C - Type AC by ABB is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, RS Components and Rexel Group. It is currently in stock at 2 of them. Trade prices range from £98.06 to £151.67 excl. VAT. Voltimum+ members earn 34 points per unit.

1P+N electronic RCBO in one-module width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA). Presence of neutral (blue or black) and functional earth (white) flying leads. The neutral is unswitched

Product identifiers

SKU: 2CSR275051R1164

EAN: 8012542266037

GTIN: 8012542266037

MPN: DSE201 M C16 AC30 - N Blue

Loyalty points: 34

Price range: £ 98.06 - £ 151.67 Excl. VAT

Specifications

Frequency	50/60 Hz
Power loss	2.4
Voltage type	AC
Rated current	16
Rated voltage	240
Built-in depth	68.9
Pollution degree	2
Rated fault current	0.03
Leakage current type	AC
Over voltage category	3
Current limiting class	3
Release characteristic	C
Surge current capacity	0.25
Number of poles (total)	2
With interlocking device	yes
Degree of protection (IP)	IP20
Number of protected poles	1
Flush-mounted installation	no
Rated insulation voltage Ui	500
Disconnection characteristic	Undelayed
Anti-nuisance tripping version	no
Width in number of modular spacings	1
Ambient temperature during operating
Rated impulse withstand voltage Uimp	4
Concurrently switching neutral conductor	no
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity according to EN 61009	10
Rated short-circuit breaking capacity according to IEC 60947-2	15
Rated short-circuit breaking capacity Icn according to EN 61009-1	10
